VA-10 – Voltammetry/Amperometry

Add to Wishlist Remove from Wishlist

Amplifier for Voltammetry and Amperometry

  • Easy to use potentiostat amplifier for voltammetric recordings
  • Detect the smallest signals with picoampere range sensitivity
  • FCV / FSCV in the range of +/-1000 mV or +/-2000 mV
  • Frequency booster to enhance recording bandwidth to several kHz
  • Easy DC amperometry with built-in voltage source
  • Connect carbon fiber electrodes
  • In vivo recording with optional mini-heastages (also multi-channel)
  • Build your own SECCM system with our VA-10X potentiostats
  • Also available as module for the EPMS-07 system
Categories: ,

About VA-10

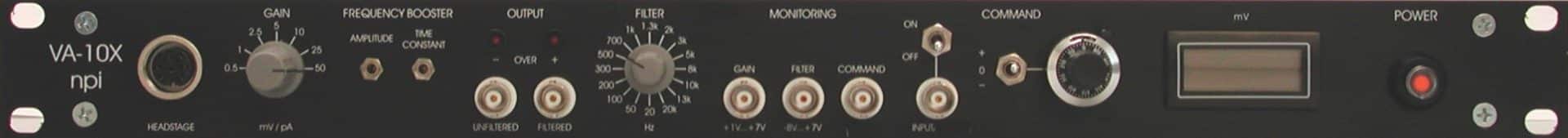

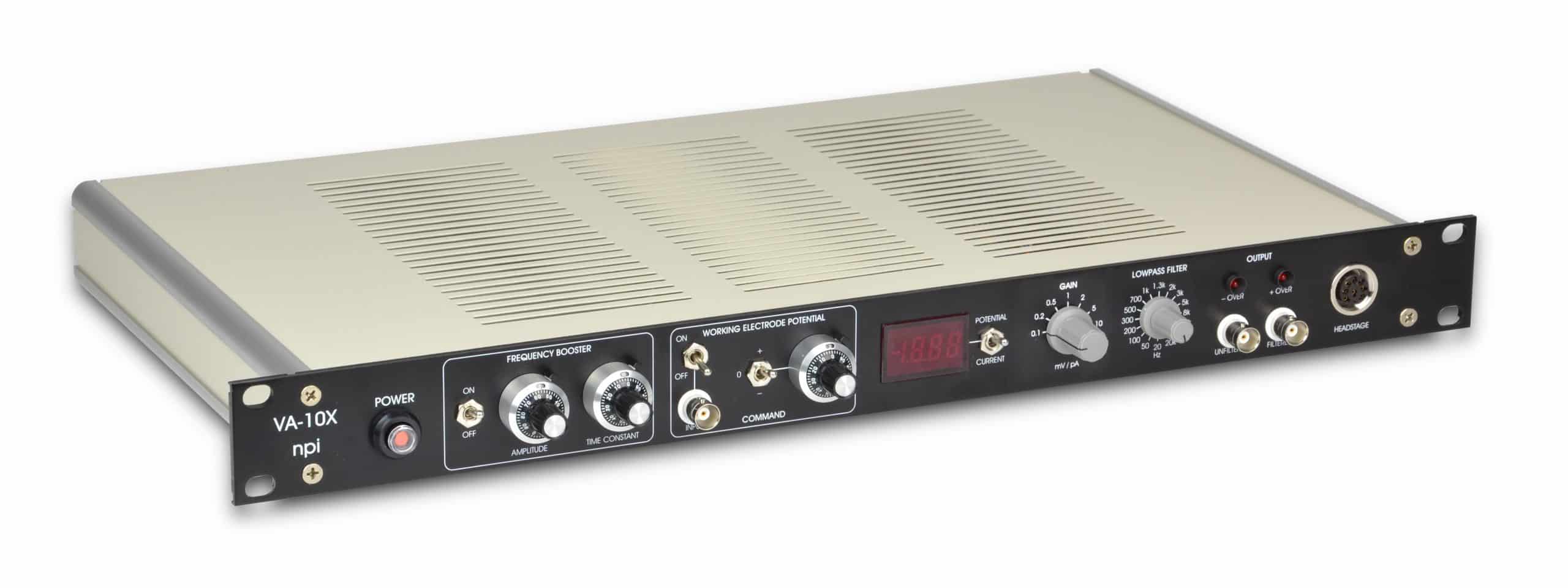

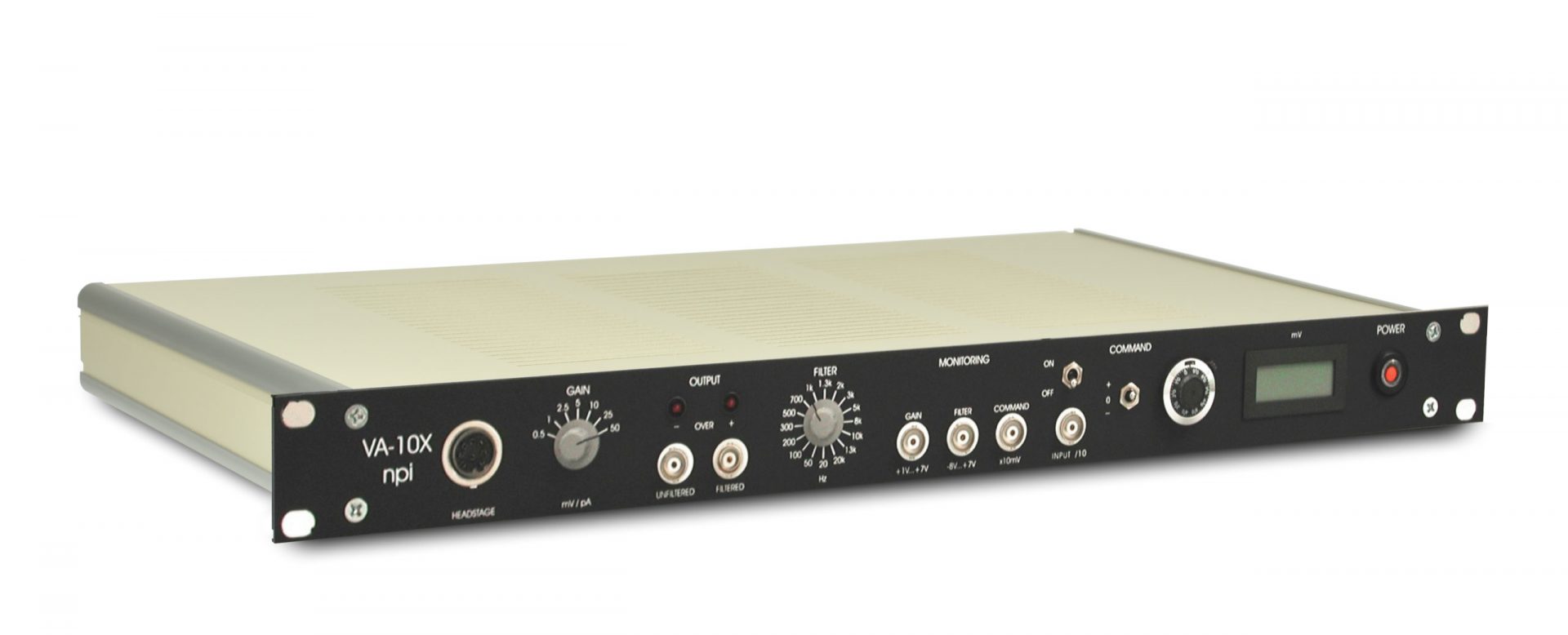

The VA-10X is a sensitive (picoampere range) current amplifier that is intended for voltammetric measurements. It can be used with carbon-fiber microelectrodes in biological systems, where the total currents do not exceed a few tens of nA, or with other electrode types. The current range can be customised with different feedback resistors, also a switchable headstage is available for higher flexibility during experiments.
Besides the current range, also filter frequencies, gain stages or headstages can be customised. If you require a special design, please let us know.
It was designed at the Max-Planck-Institute for Experimental Medicine in Göttingen as an economically priced alternative to do-it-yourself systems and expensive commercial systems.
It can be used for either DC amperometry using the built-in voltage source, or it can be operated with user-supplied external voltage waveforms (e.g. for cyclic voltammetry).
The VA-10X-8 is equipped with high performance 8-pole Bessel filters.

The device can be widely customised Ask npi electronic for headstages with different feedback resistors, multi electrode headstages, or miniaturised headstages for in-vivo recordings.
Optionally, the VA-10X can be equipped with a frequency booster in order to enhance the recording bandwidth to several kHz.

The device can be adapted to directly replace the discontinued Dagan Chem-Clamp.

The VA-10 is also available as module for the EPMS-07 system.

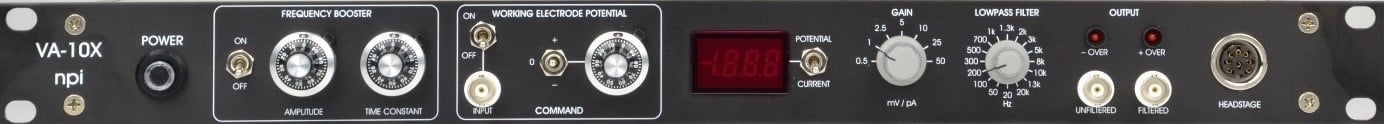

Features

Features:

  • Optional frequency booster for recording very fast signals
  • Filter settings from 20 Hz to 20 kHz in sixteen steps, 8-pole Bessel filter (1-pole or 4-pole filter on request)
  • 3-electrode headstage for a floating command potential available
  • Gain settings from 0.5 to 50 mV / pA in seven steps (can be customised)
  • Precise built-in voltage source for DC amperometry (+/- 1000 mV standard, +/- 2000 mV optional)
  • Low noise, works in picoampere range
  • Ideally suited for recordings from single cells
  • Can be operated with external waveforms for cyclic voltammetry
  • Telegraph outputs for easy interfacing to data acquisition systems
  • Applications:
    • Allows simultaneous electrophysiological recordings during voltammetric or amperometric investigations using headstages with differential inputs
    • Can be used in scaning electrochemical microscopy
    • Also suitable for lipid bilayer recordings
    • In-vivo headstages available

Use with 5 µm carbon fiber electrodes (ALA-CFE-2)

Also available as module for the EPMS-07 system.

Ordering

Part no. Description
VA-10X-8 Amplifier for voltammetry and amperometry with 8-pole BESSEL filter
VA-10-FB Frequency Booster for enhancement of the bandwidth
VA-HS3 Differential (3-Electrode) headstage for VA-10 amplifier
VA-CFE Carbon Fiber electrodes, 5 µm diameter, using the Anodic Electrophoretic Deposition of Paint (EDP) method
VA-CFE-H-BNC CFE holder for headstages with BNC connector
VA-CFE-H-AXU CFE holder for AXON amplifier

Technical Data

HEADSTAGE Input voltage range: ±1200 mV
Operating voltage: ±12 V
Enclosure: Size: 40 x 70 x 20 mm, driven shield (COMMAND potential)
Mounting plate: 50 x 70 mm, not conducting
Electrode connector:driven shield (COMMAND potential)
Ground connector: 1 mm connector (black)
Driven shield output: 1 mm connector (red)
Input resistance: >1013 Ω
Current range: ±20 nA
Feedback resistor: 500 MΩ (other values on request)
OUTPUTS Impedance: 250 Ω
FILTERED: BNC connector, sensitivity selectable with GAIN switch, FILTERED with LP Bessel FILTER
UNFILTERED: BNC connector, sensitivity selectable with GAIN switch
INPUTS Resistance: 1 MΩ
VOLTAGE SOURCE COMMAND VOLTAGE set by 10-turn potentiometer, range: (1000 mV, polarity selectable with polarity switch (+, 0, -), display XXXX mV
COMMAND VOLTAGE:
INPUT BNC connector, sensitivity: /10, also displayed
LP FILTER 8-pole Bessel FILTER
16 corner frequencies: 20, 50, 100, 200, 300 500, 700, 1k, 1.3k, 2k, 3k, 5k, 8k, 10k, 13k, 20k Hz. (other values on request)
NOISE <1 pA
GAIN 7-position rotary switch (x0.5, x1, x2.5, x5, x10, x25, x50 mV / pA) (other values on request)
POWER REQUIREMENTS 115/230 V AC, 60/50 Hz, fuse 0.4/0.2 A, slow.
DIMENSIONS 19″ rackmount cabinet, 19″ (483 mm), 10″ (250 mm), 3.5″ (88 mm)

Downloads

Manuals VA-10X manual
Brochure VA-10 Brochure
