Miniature Headstages

Add to Wishlist Remove from Wishlist

Miniature headstages for in-vivo electrophysiology

Categories: , , , , , , ,

Why we use wired headstages

Connecting the headstage with wires/cables has several advantages:

  • using the pre-amplified signal from headstage allows use of analog filters and signal conditioners
  • supply with ±12V allows higher pre-amplification and improves signal-to-noise ratio
  • supply with ±12V allows patch clamp recordings on freely moving animals
  • using no batteries allows recording for longer periods of time

Options / Versions

Base amplifier

# of channels

Add. Extracell. Channels

LED

Acceleration Sensor

Stim. Lines

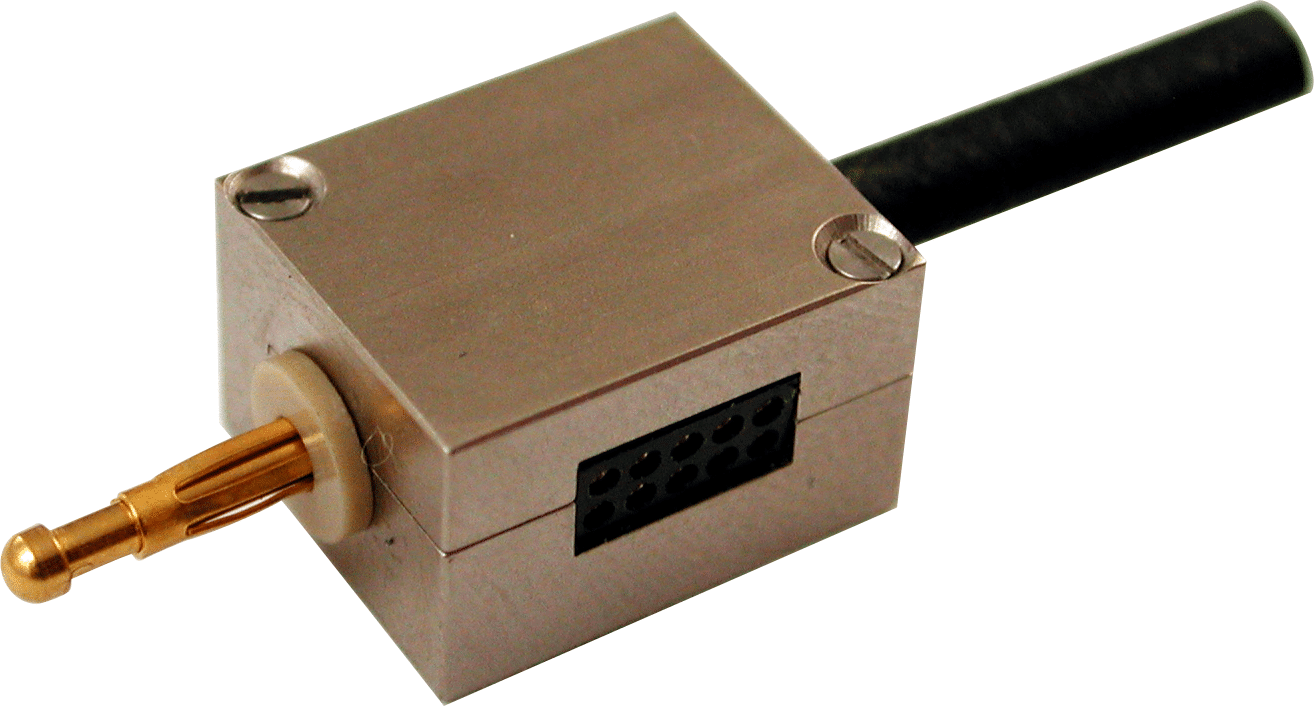

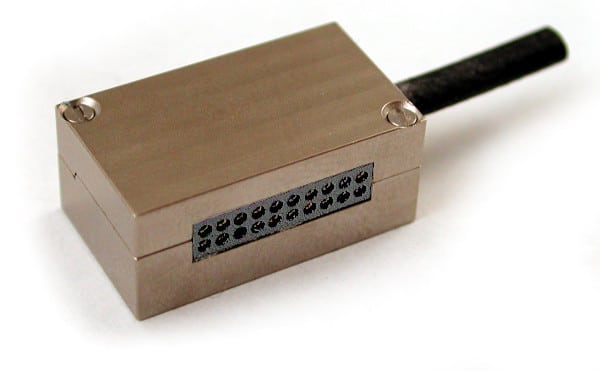

Housing

Connector**

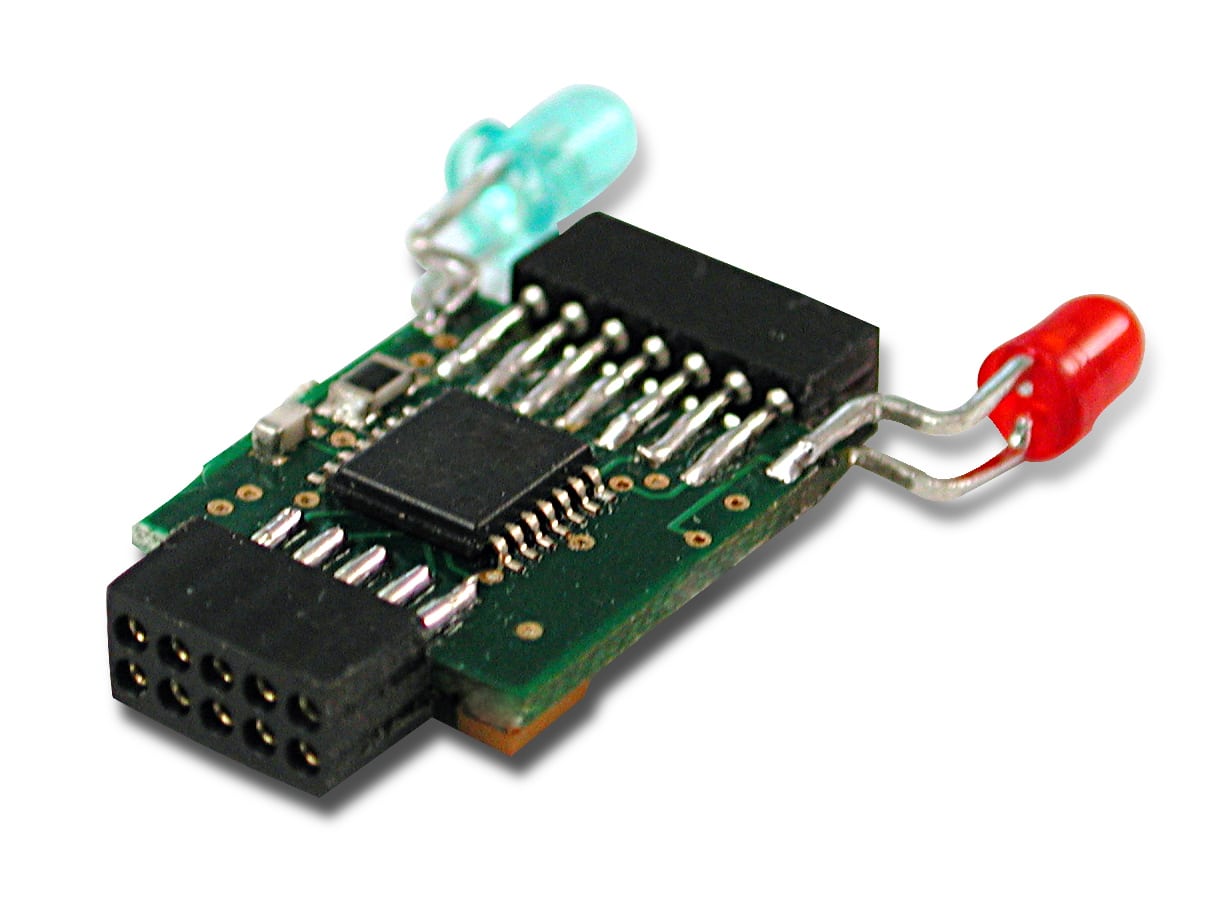

ELC

1 – 3

2 – 16

Yes

Yes

1-2

Max. 6 channels

Double row connector*, Omnetics

BA

1 – 3

2 – 16

Yes

Yes

1-2

Max. 6 channels

Double row connector*, Omnetics

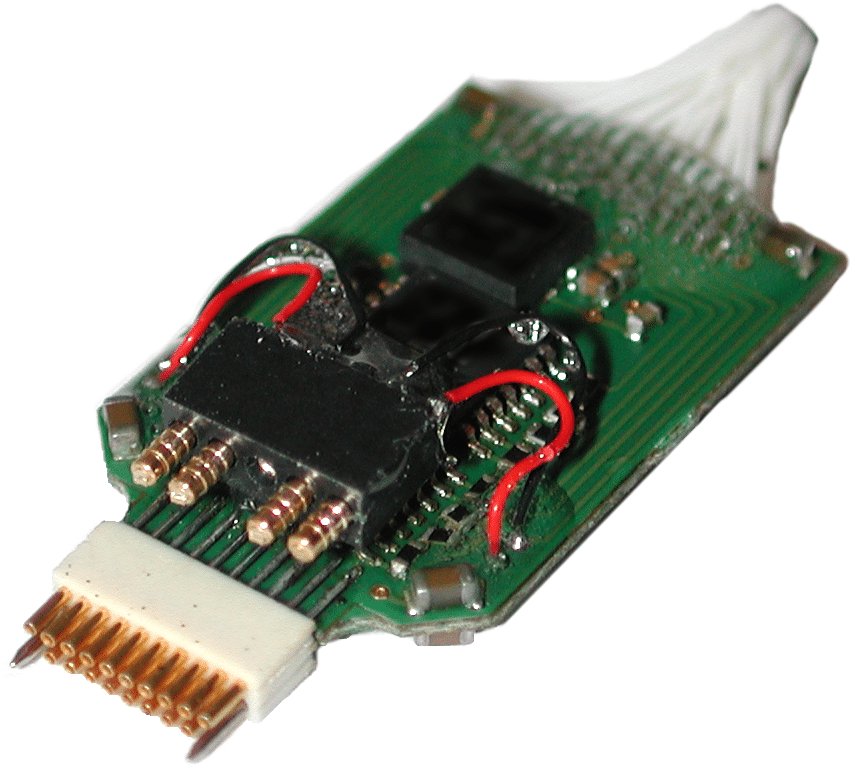

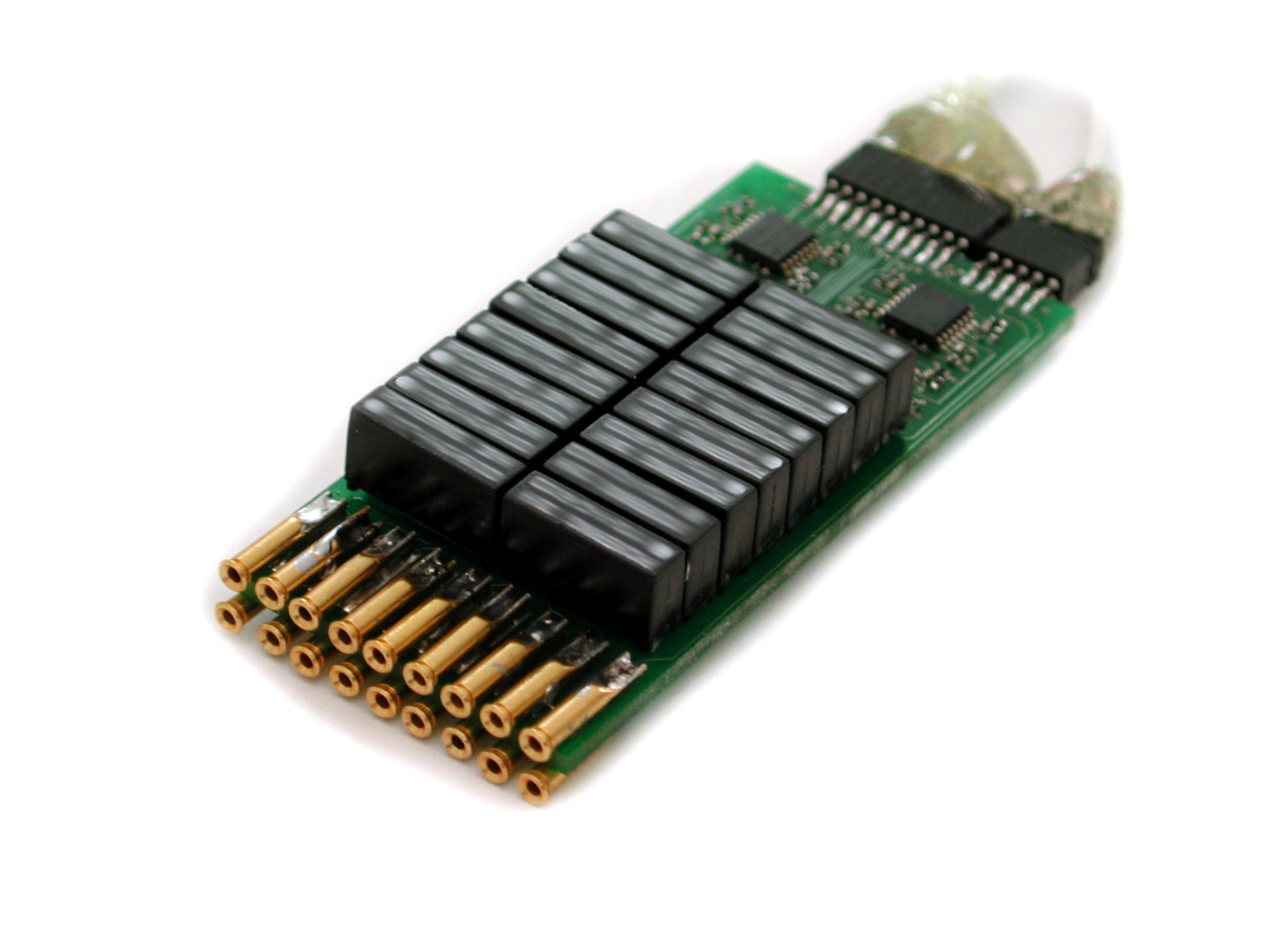

EXT-16DX

4, 8, 16, 32

 –

Yes

Yes

1-2

 –

Double row connector*(max. 16 ch.), Omnetics

EXT-(02F, 02B

1, 2 (differential)

–

Yes

Yes

1-2

Yes

Double row connector*

DPA (EPMS-System)

1 – 16

 –

Yes

Yes

1-2

Max. 6 channels

Double row connector*

VA-10

1-8

2-8

Yes

Yes

1-2

Max. 6 channels

Double row connector*

* Double row connectors with 1.27 mm pitch

** Most of our headstages can be built with custom connectors. Contact us if you have special requirements.



Selected References

Juxtacellular recording in freely moving rodents

Brecht Lab Berlin

https://doi.org/10.1523/JNEUROSCI.1656-18.2019

https://doi.org/10.1126/science.1243028

https://doi.org/10.1523/JNEUROSCI.2986-15.2016

https://doi.org10.1038/nn.3176

Burgalossi Lab Tübingen

https://doi.org/10.1016/j.celrep.2018.03.031

http://dx.doi.org/10.1016/j.cub.2015.12.053

Somogyi Lab Oxford

https://doi.org/10.1002/hipo.22696

http://dx.doi.org/10.1016/j.neuron.2014.04.007

Klausberger Lab Vienna

https://doi.org/10.3389/fncel.2018.00105

https://dx.doi.org/10.1016/j.neuron.2016.08.010

Remy Lab Bonn

http://dx.doi.org/10.1101/363820



Extracellular recordings in freely moving rodents

Fenzl Lab Innsbruck

https://doi.org/10.3389/fnbeh.2016.00252

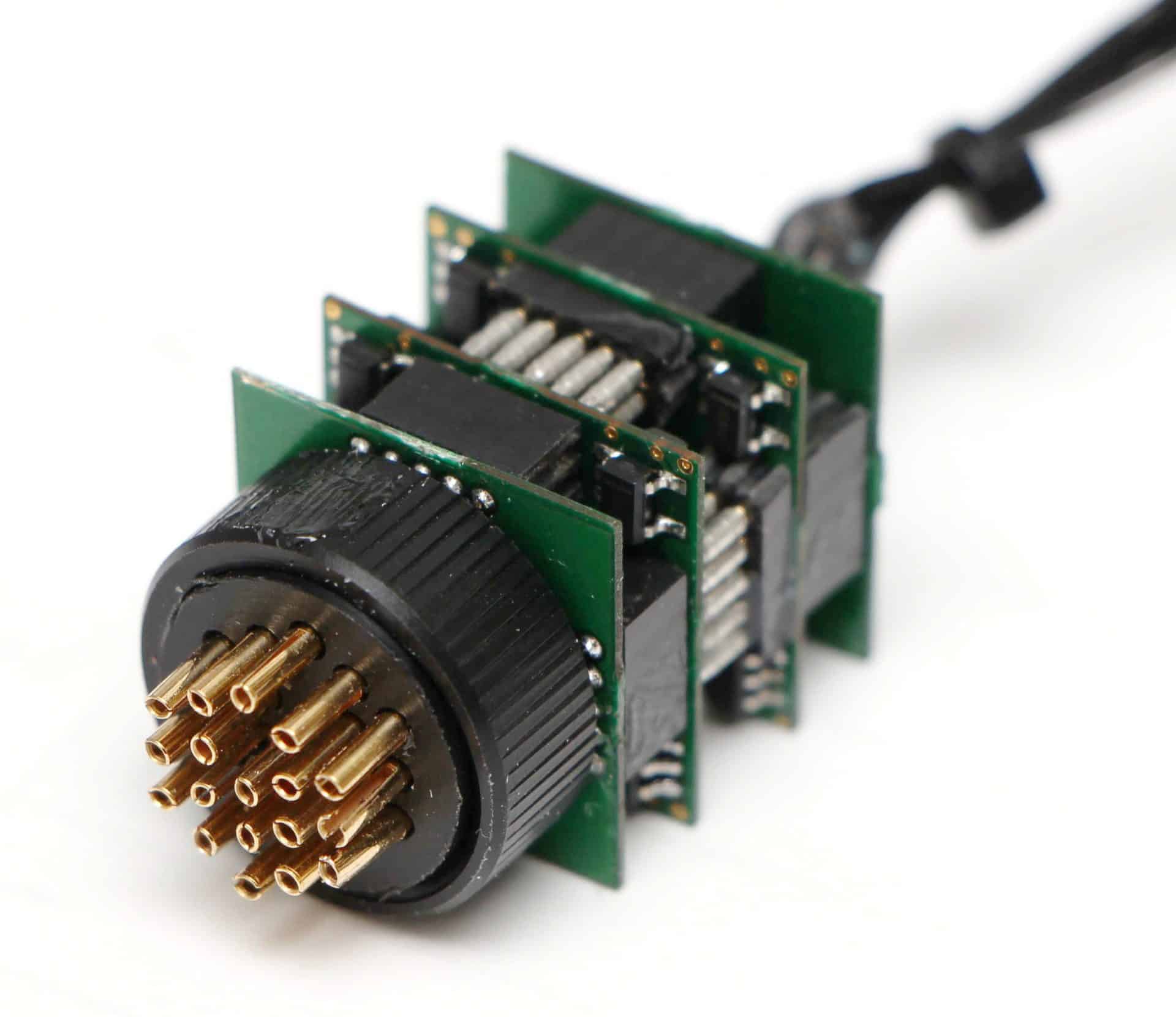

Extracellular recordings in pidgeons

Güntürkün Lab Bochum / Stüttgen Lab Mainz

https://doi.org/10.1371/journal.pone.0057407

https://doi.org/10.1111/ejn.12698



Voltammetry (with multiple channels)

Sirota Lab

http://dx.doi.org/10.1016/j.bios.2015.02.003

Marinesco Lab

https://doi.org/10.15252/embj.201694085



SICM-STED

Happel Lab Bochum

https://doi.org/10.1021/acsnano.8b01731

https://doi.org/10.1039/c7nr04306f
