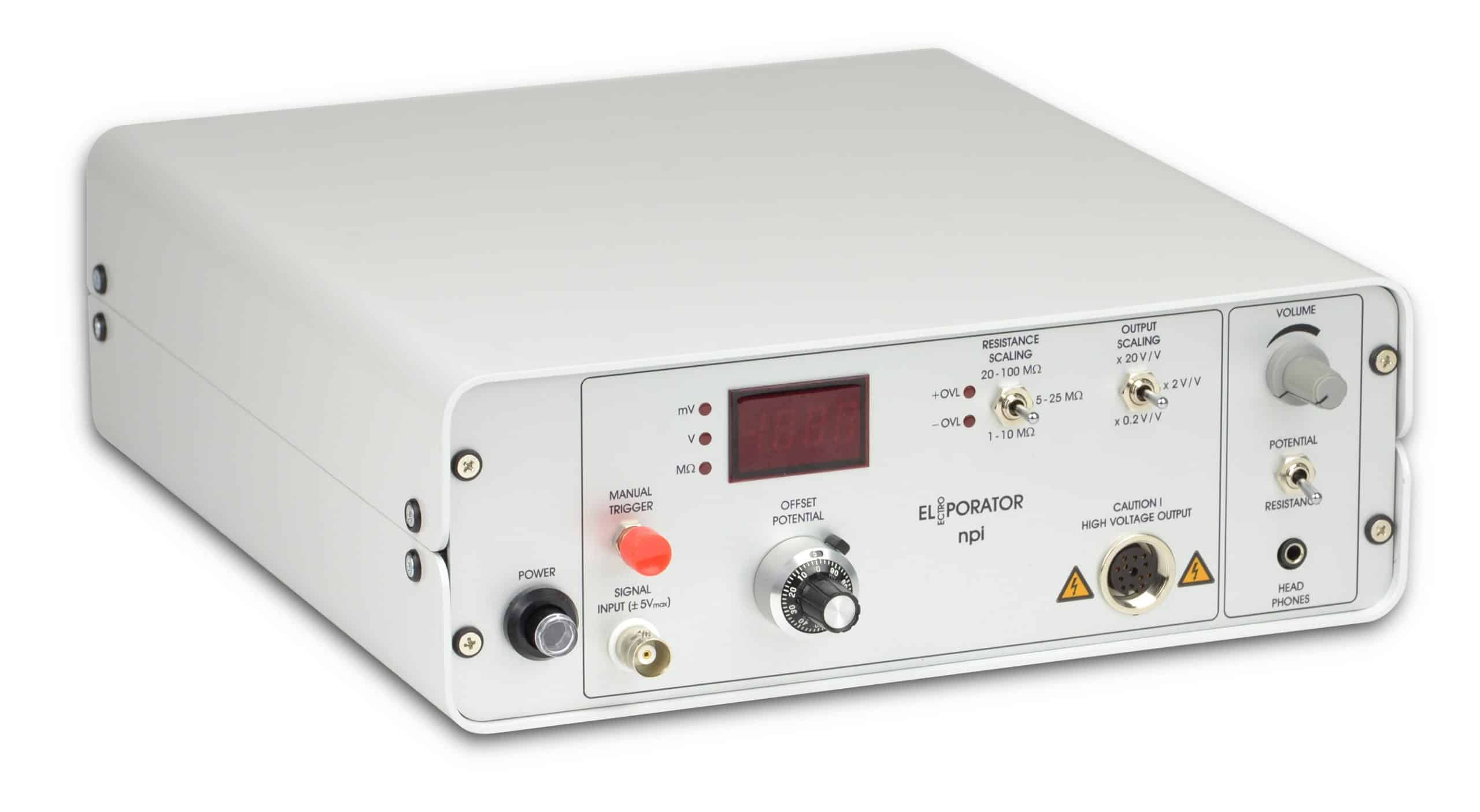

ELectroPorator
Add to Wishlist
Remove from Wishlist
Single cell electroporation made easy
- Transfect individual cells for GFP expression
- Target single cells for optogenetics, etc.
- Deliver macromolecules, including DNA, RNA, dyes and proteins into cells
- Stain cells to study their morphology
- Combine with DigiStim to get a fully independent single cell electroporation system
- Book a demo of the ElectroPorator

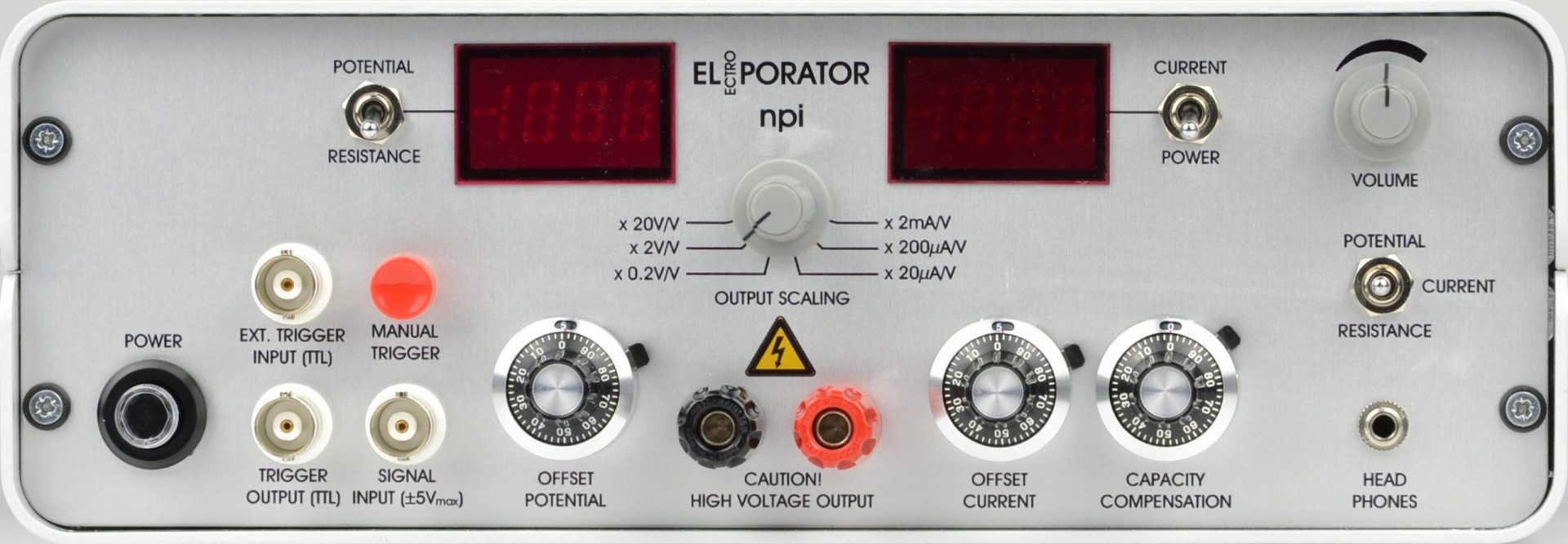

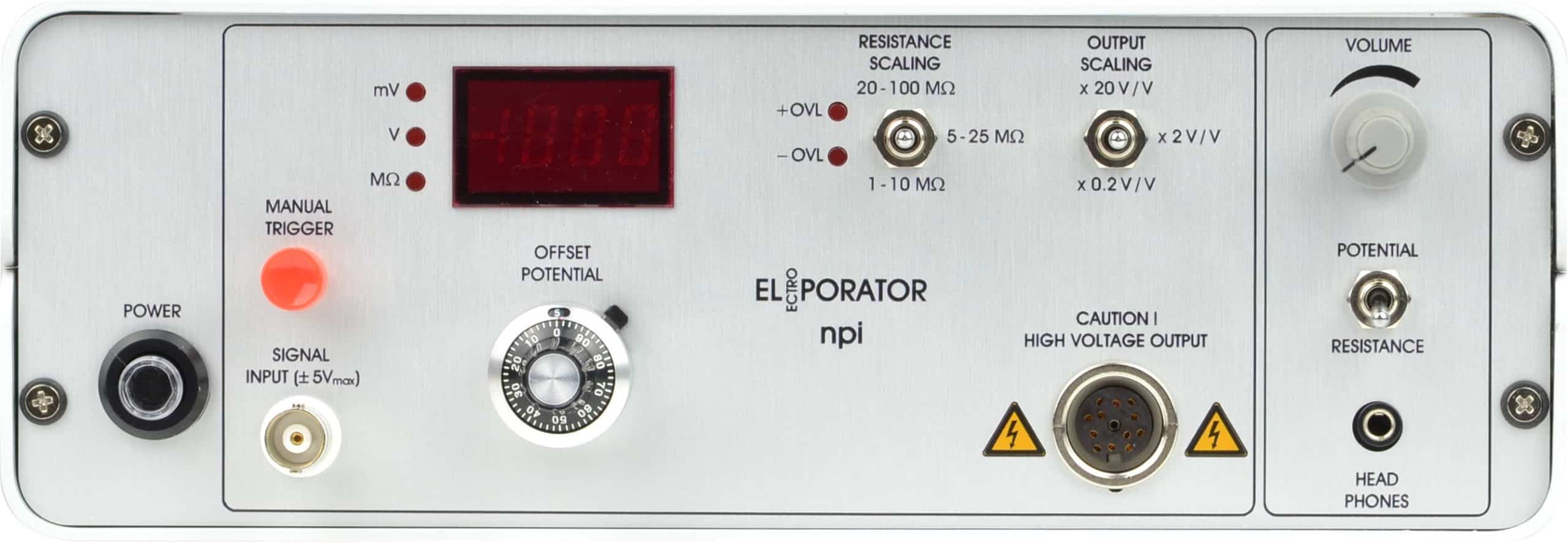

Features
| max. Output |
Voltage up to 100 V
Current up to 10 mA |
| Input scaling |
Current: 20 µA/V, 200 µA/V, 2 mA/V
Voltage: 0.2 V/V, 2 V/V, |
| Compensation |
Offset Current, Offset Voltage, Capacitance |
| Audio Monitor |
Resistance, Potential, Current |
| Displays |
Resistance, Power, Voltage, Current |
| Monitoring |

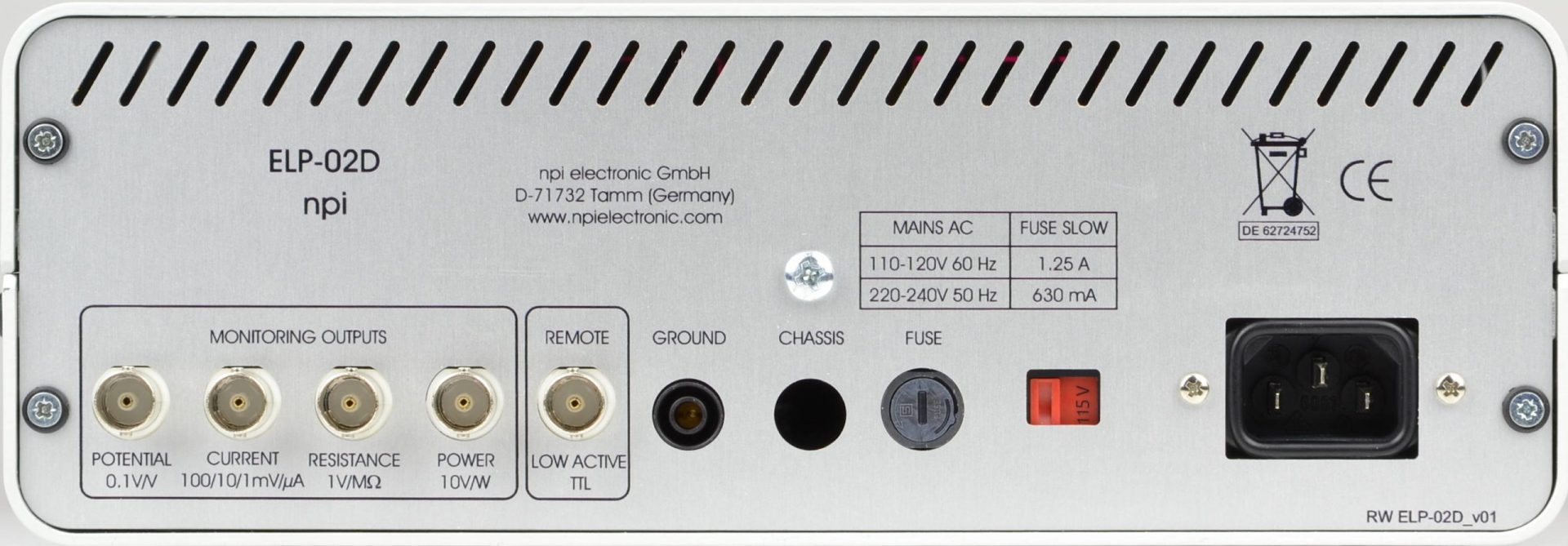

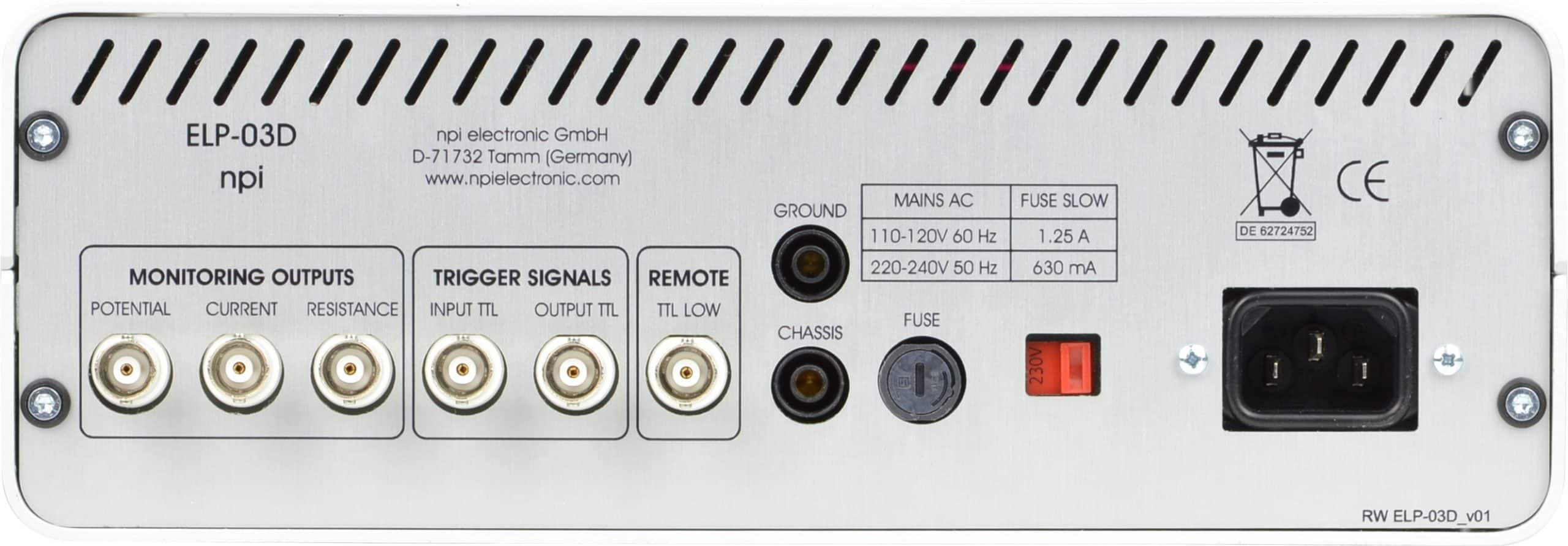

BNC outputs for potential, current, resistance, power (rear panel) |
| Control |
Footswitch, pushbutton or TTL input will trigger data acquisition system or external signal generator (e.g. DigiStim)
Electroporation signal will follow the ANALOG INPUT signal |
Technical data
Output modes
|
voltage source, current source
selectable with rotary switch |
Scaling
|
Voltage output:
x 0.2 V/V
x 2 V/V
x 20 V/VCurrent output:
x 2 mA/V
x 200 µA/V
x 20 µA/V |
Displays
|
Potential:
XXX.X V
Current:
XXX.X µA in x20 µA/V scaling
XXXX µA in x200 µA/V scaling
XX.XX mA in x2 mA/V scaling
Resistance:
XXX.X MΩ
Power:
XXXX mW in all scalings (voltage output)
XX.XX µW in x20 µA/V scaling (current output)
XXX.X mW in x200 µA/V scaling (current output)
XXXX mW in x2 mA/V scaling (current output) |
Trigger Unit
|
Trigger Input front panel: TTL, active high, 10 kΩ, max. 2 kHz
Trigger Input rear panel (REMOTE): TTL, active low
Push button
Trigger Output front panel: TTL, active high, 50 Ω, length: 400 µs |
Offset Ranges
|
Potential: ±1 V
Current: ±400 nA in x20 µA/V scaling (current output)
Current: ±4 µA in x200 µA/V scaling (current output)
Current: ±40 µA in x2 mA/V scaling (current output) |
Monitors Scaling
|
Potential: 100 mV/V
Resistance: 1 V/MΩ
Current (depending on mode and scaling):
1V/mA in all voltage outputs
100 mV/µA in x20 µA/V scaling (current output)
10 V/mA in x200 µA/V scaling (current output)
1 V/mA in x2 mA/V scaling (current output)
Power: 10 V/WInput voltage range: ±5 VOutput voltage: ±100 V max.Output current: ±10 mA max.Dimensions: 245 x 260 x 90 mm³ |
