Perfusion Manifolds
Perfusion Manifolds - Image 2
Perfusion Manifolds - Image 3
Perfusion Manifolds - Image 4
Perfusion Manifolds - Image 5
Perfusion Manifolds - Image 6
Perfusion Manifolds - Image 7

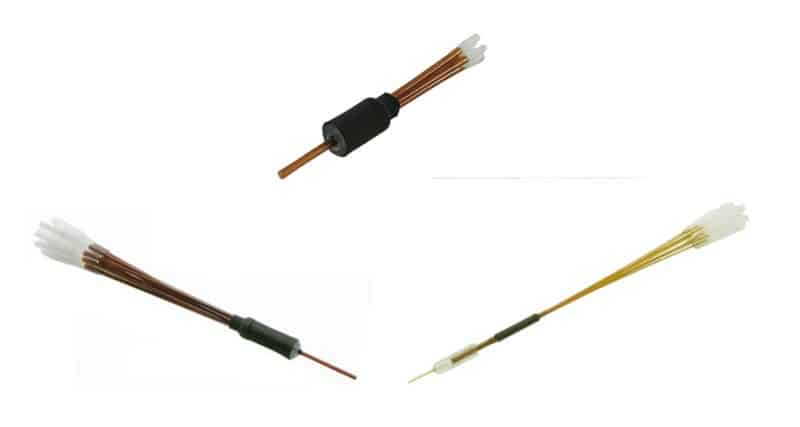

Perfusion Manifolds

Add to Wishlist Remove from Wishlist

Perfusion Manifolds

  • QMM (Quartz Micro Manifold) for focal perfusion
  • MLF (Milli Manifold) for perfusion larger areas
  • MMF (Mini Manifold) for bath perfusion
Categories: ,

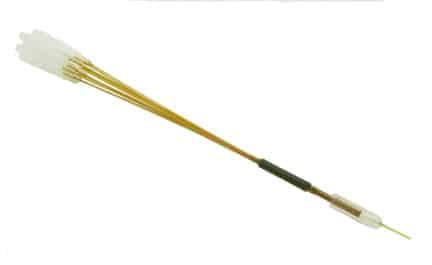

QMM - Quartz Micro Manifold

For focal perfusion (pressurized), e.g. with Octaflow II or VC3

  • 100 µm or 200 µm diameter
  • FEP tubing optional (for direct connection to Octaflow or VC3)
  • Any number of channels available (4, 8, 16 is standard)
  • Optional flush channel (e.g. for use with OctaflowII)

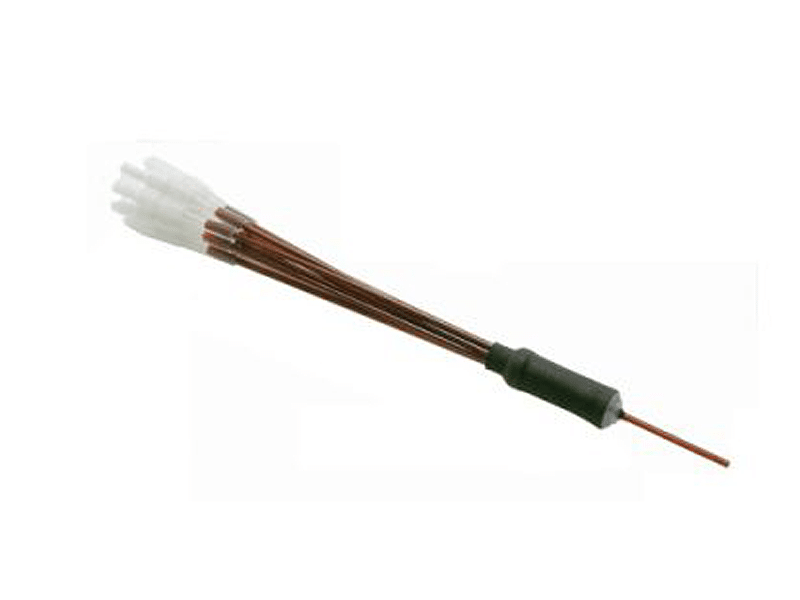

MLF - Milli Manifold

Perfusion of larger areas

  • Pressurized or gravity driven perfusion
  • 500 µm ID
  • 1/16″ barb fittings for tubing connection
  • 4, 8 or 16 channels (odd numbers available on request)

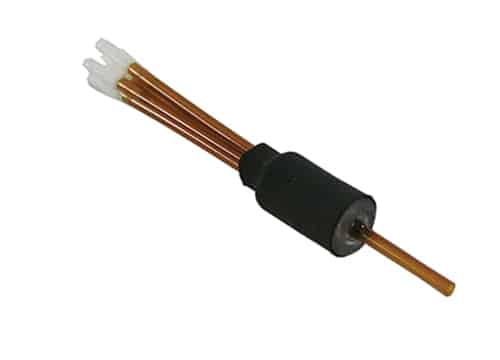

MMF - Mini Manifold

Bath perfusion

  • For gravity driven systems
  • 1.5 mm ID
  • 1/16″ barb fittings for tubing connection
  • 4 or 8 channels (odd numbers available on request)

ABOUT

Perfusion manifolds are used to combine the individual channels of the perfusion system or peristaltic pump into one perfusion outlet. We offer various outlet diameters for different applications.

QMM - Quartz Micro Manifold

QMM - Quartz Micro Manifold

For focal perfusion (pressurized), e.g. with Octaflow II or VC3

  • 100 µm or 200 µm diameter
  • FEP tubing optional (for direct connection to Octaflow or VC3)
  • Any number of channels available (4, 8, 16 is standard)
  • Optional flush channel (e.g. for use with OctaflowII)

MLF - Milli Manifold

MLF - Milli Manifold

Perfusion of larger areas

  • Pressurized or gravity driven perfusion
  • 500 µm ID
  • 1/16″ barb fittings for tubing connection
  • 4, 8 or 16 channels (odd numbers available on request)

MMF - Mini Manifold

MMF - Mini Manifold

Bath perfusion

  • For gravity driven systems
  • 1.5 mm ID
  • 1/16″ barb fittings for tubing connection
  • 4 or 8 channels (odd numbers available on request)
