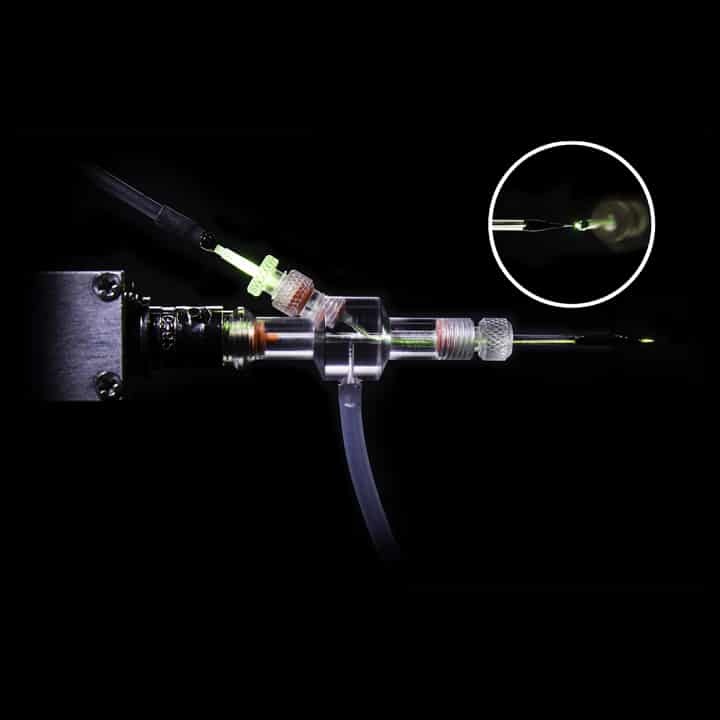

OptoPatcher Patch Electrode Holder with Optical Fiber

Add to Wishlist Remove from Wishlist

OptoPatcher

  • Apply optical stimulation through patch clamp pipettes
  • Can be used with pipettes from 1.2 mm to 2 mm OD
  • Available for Axon, Heka, npi and other amplifiers
  • Suitable for ALA’s LSD-1 light source

Connection to light sources

It has proven best to insert a stripped fiber directly into the optopatcher. This way coupling losses are minimized.

As an alternative, fiber stubs with ferrule can be inserted into the optopatcher. They are connected to an optical fiber with another ferrule via sleeves.

Ordering:

Part-No. Description
OPTOPATCHER-AXU Fiber optic light guide electrode holder for Axon Universal headstages, specify glass OD
OPTOPATCHER-BNC Fiber optic light guide electrode holder for Heka, npi and all BNC type headstages, specify glass OD
OPTO-LASER-LG Stripped fiber for direct connection of OptoPatcher to LSD-1
OPTO-LSD-LG-OPTO Stripped fiber for direct connection of 3rd party light sources (SMA or FC/PC)



Downloads

Manual Optopatcher & LSD-1 manual
Brochure Optopatcher & LSD-1

ABOUT

Using the OptoPatcher is an easy way to combine optogenetics with patch clamp experiments: the optical fiber is simply inserted into the recording pipette. The optopatcher makes sure that all connections are air-tight so that pressure manipulation and seal forming can be controlled via the suction port.

Connection to light sources

Connection to light sources

It has proven best to insert a stripped fiber directly into the optopatcher. This way coupling losses are minimized.

As an alternative, fiber stubs with ferrule can be inserted into the optopatcher. They are connected to an optical fiber with another ferrule via sleeves.

Ordering:

Ordering:

Part-No. Description
OPTOPATCHER-AXU Fiber optic light guide electrode holder for Axon Universal headstages, specify glass OD
OPTOPATCHER-BNC Fiber optic light guide electrode holder for Heka, npi and all BNC type headstages, specify glass OD
OPTO-LASER-LG Stripped fiber for direct connection of OptoPatcher to LSD-1
OPTO-LSD-LG-OPTO Stripped fiber for direct connection of 3rd party light sources (SMA or FC/PC)
