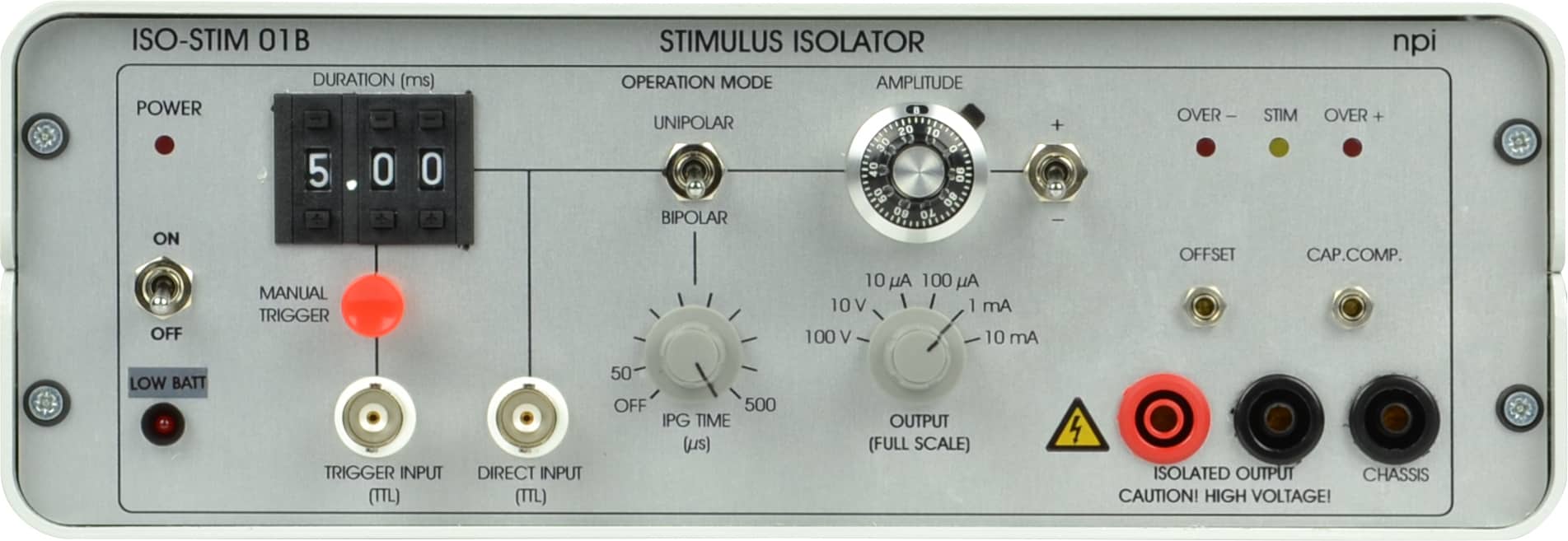

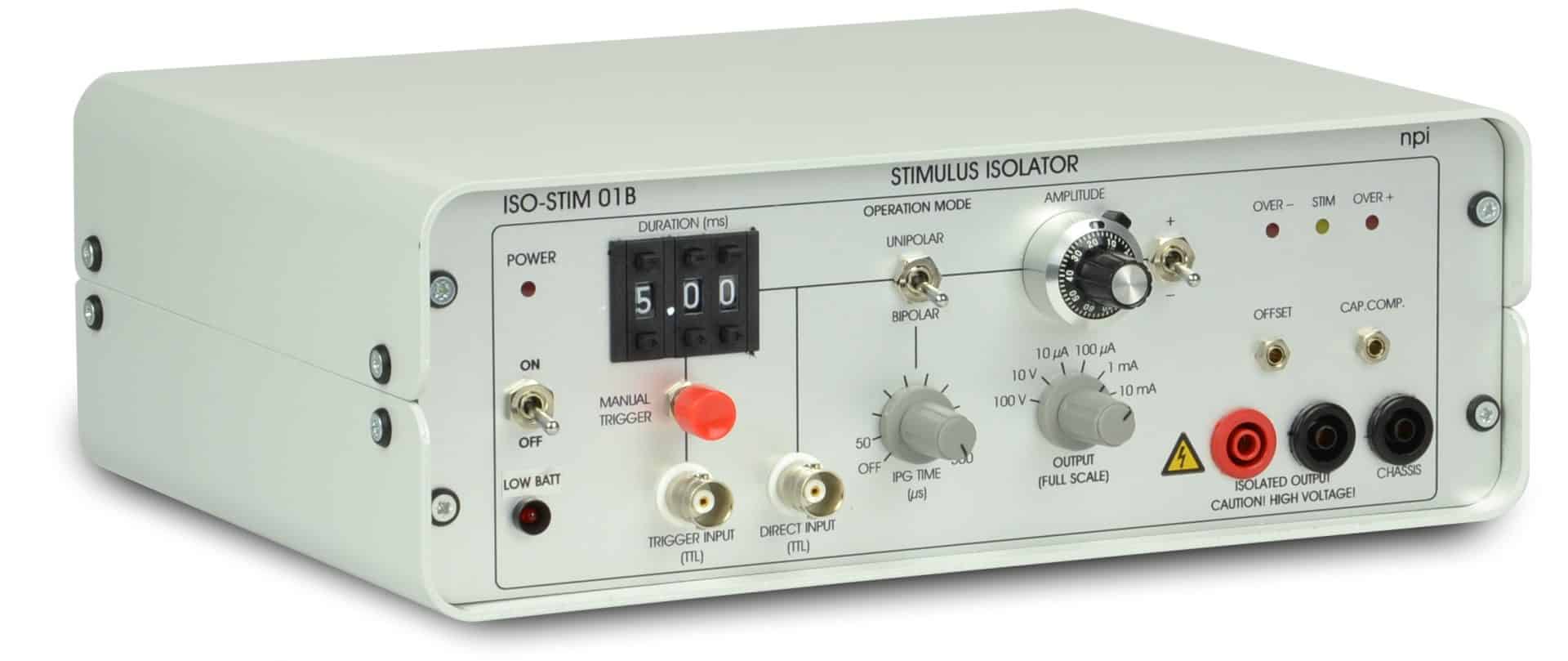

ISO-STIM-01B – Isolated Stimulator

Add to Wishlist Remove from Wishlist

Low Budget Isolated Stimulator

This device has been replaced by our new ISO-STIM-II

  • Avoid electrical noise by using battery power
  • Modern Li-Ion technology rechargeable battery
  • Equilibrate sample’s charge with bipolar stimulation
Categories: ,

Features

  • 2 external power supply options:
    line: (input 90 V … 240 V AC)
    battery: up to ±40 V
  • 2 pulse modes:
    direct input: TTL duration = pulse duration (with bipolar option)
    trigger input: pulse duration set by internal timer (10 μs … 10 ms)
  • Amplitude set by ten-turn potentiometer
  • Voltage or current output
    max. 100 V / 10 mA
    unipolar or bipolar
  • Adjustable InterPhase Gap (IPG)*
  • More complex timing with TMR-01B
  • Optional cable to stimulation electrodes (to be ordered separately)

*Cappaert NLM, Ramekers D, Martens HCF, and Wytse J. Wadman
Int. J. Neur. Syst. 23, 1250031 (2013) http://dx.doi.org/10.1142/S0129065712500311
Efficacy of a new charge-balanced biphasic electrical stimulus in the isolated sciatic nerve and the hippocampal slice.

Ordering

Part No. Description
EXB-EXT-02B EXT-02B Two Channel Low-cost Extracellular Amplifier (master version)
EXB-EXT-02BS EXT-02B Two Channel Low-cost Extracellular Amplifier (slave version)
EXB-HS Standard Headstage for EXT-2B Amplifier
EXB-AUDIS-08B AUD-08B Audio Monitor System for EXT-02B
EXB-RES-08B REL-08B Electrode Resistance Meter for EXT-02B
TMR-01B TMR-01B Low-cost Digital Timer Unit (desktop)
ISO-01B ISO-STIM-01B Low-cost Isolated Stimulator Unit (desktop, needs battery pack)
ISO-01BP ISO-STIM-01B Low-cost Isolated Stimulator Unit (desktop, needs power supply)
ISO-01B-ACCU Battery Pack (80 V) with charger
ISO-01B-PWR Power Supply for ISO-01B

Technical Data

Input resistance 2 kΩ
Output monopolar or bipolar, selected by toggle switch
Output voltage ±100 V max., isolated, with power supply
±40 V max., isolated, with battery
Output current ±10 mA max., isolated
IPG (interphase gap) 50 … 500 µs
Power requirements 100 … 240 V, AC
Fuses Power Supply: 1.25 A, slow
Dimensions ISO-STIM 01B: 246 x 188 x 89 mm³ (W x D x H)
Power Supply: 103 x 169 x 59 mm³ (W x D x H)

Downloads

Manuals ISO-01B_manual
Brochures ISO Series

Features

Features

  • 2 external power supply options:
    line: (input 90 V … 240 V AC)
    battery: up to ±40 V
  • 2 pulse modes:
    direct input: TTL duration = pulse duration (with bipolar option)
    trigger input: pulse duration set by internal timer (10 μs … 10 ms)
  • Amplitude set by ten-turn potentiometer
  • Voltage or current output
    max. 100 V / 10 mA
    unipolar or bipolar
  • Adjustable InterPhase Gap (IPG)*
  • More complex timing with TMR-01B
  • Optional cable to stimulation electrodes (to be ordered separately)

*Cappaert NLM, Ramekers D, Martens HCF, and Wytse J. Wadman
Int. J. Neur. Syst. 23, 1250031 (2013) http://dx.doi.org/10.1142/S0129065712500311
Efficacy of a new charge-balanced biphasic electrical stimulus in the isolated sciatic nerve and the hippocampal slice.

Ordering

Ordering

Part No. Description
EXB-EXT-02B EXT-02B Two Channel Low-cost Extracellular Amplifier (master version)
EXB-EXT-02BS EXT-02B Two Channel Low-cost Extracellular Amplifier (slave version)
EXB-HS Standard Headstage for EXT-2B Amplifier
EXB-AUDIS-08B AUD-08B Audio Monitor System for EXT-02B
EXB-RES-08B REL-08B Electrode Resistance Meter for EXT-02B
TMR-01B TMR-01B Low-cost Digital Timer Unit (desktop)
ISO-01B ISO-STIM-01B Low-cost Isolated Stimulator Unit (desktop, needs battery pack)
ISO-01BP ISO-STIM-01B Low-cost Isolated Stimulator Unit (desktop, needs power supply)
ISO-01B-ACCU Battery Pack (80 V) with charger
ISO-01B-PWR Power Supply for ISO-01B

Technical Data

Technical Data

Input resistance 2 kΩ
Output monopolar or bipolar, selected by toggle switch
Output voltage ±100 V max., isolated, with power supply
±40 V max., isolated, with battery
Output current ±10 mA max., isolated
IPG (interphase gap) 50 … 500 µs
Power requirements 100 … 240 V, AC
Fuses Power Supply: 1.25 A, slow
Dimensions ISO-STIM 01B: 246 x 188 x 89 mm³ (W x D x H)
Power Supply: 103 x 169 x 59 mm³ (W x D x H)

Downloads

Downloads

Manuals ISO-01B_manual
Brochures ISO Series
