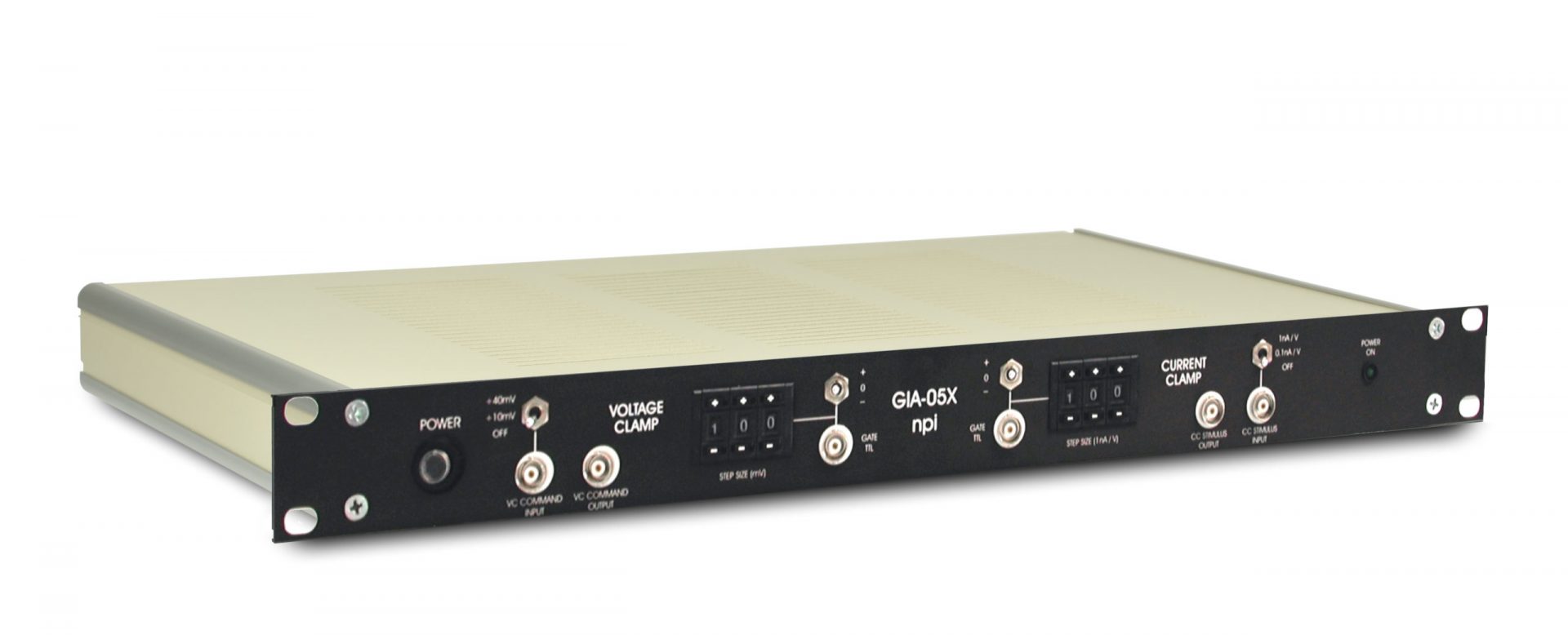

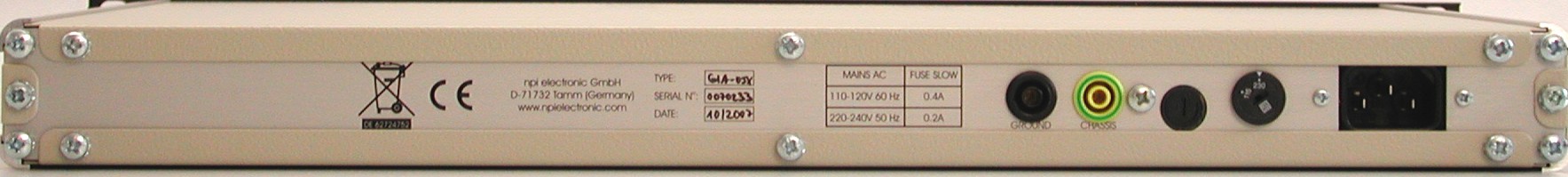

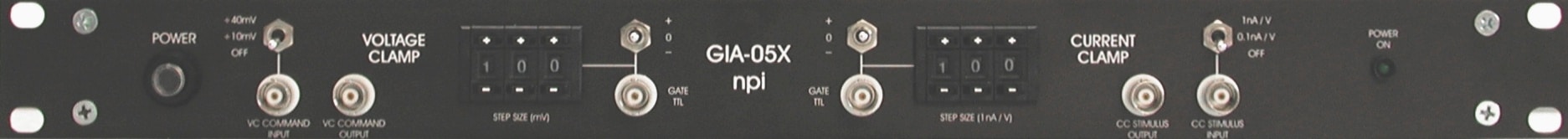

GIA-05X – Gating Unit for SEC-05X

Add to Wishlist Remove from Wishlist

Gating Unit

  • Add TTL control to your SEC-05X
  • Easy control of voltage clamp and current clamp signals
Categories: ,

Features

  • Two channel input unit for the SEC-05X or SEC-05LX single electrode amplifier
  • Allows gating of a stimulus whose amplitude is preselected by a digital potentiometer
  • One channel is used for a voltage command in Voltage Clamp (VC) mode
  • The other channel for a current stimulus in Current Clamp (CC) mode
  • Housed in a small 19″ rackmount cabinet with built-in power supply
  • Connected to the input BNCs of the SEC-05 system
  • Each channel with analog input BNC GATE input and digital control for step size

Ordering

Part No. Description
SEC-GIA SEC Gating Unit for SEC-05

Technical Data

OPERATING RANGE ±10 Volt
INPUT BNC connector, impedance 100 kΩ, maximum voltage ±10 V
SCALING VC ±10 mV or ±40 mV, selected by toggle switch
SCALING CC 1 nA/V or 0.1 nA/V, selected by toggle switch
STEP SIZE VC: 1 mV – 999 mV; CC: 0.01 nA – 9.99 Na
OUTPUT BNC connector, impedance 50Ω, maximum voltage ±10 V
GATE TTL INPUT 10 kΩ, LO: <2 V; HI: 3 V – 5 V
DIMENSIONS 19” rackmount cabinet, 19” (483 mm), 10” (250 mm), 1.75” (44 mm)
POWER REQUIREMENTS 115/230 V AC, 60/50 Hz, fuse 0.4/0.2 A, slow

Downloads

Manuals GIA-05X manual
Brochure GIA-05X

Features

Features

  • Two channel input unit for the SEC-05X or SEC-05LX single electrode amplifier
  • Allows gating of a stimulus whose amplitude is preselected by a digital potentiometer
  • One channel is used for a voltage command in Voltage Clamp (VC) mode
  • The other channel for a current stimulus in Current Clamp (CC) mode
  • Housed in a small 19″ rackmount cabinet with built-in power supply
  • Connected to the input BNCs of the SEC-05 system
  • Each channel with analog input BNC GATE input and digital control for step size

Ordering

Ordering

Part No. Description
SEC-GIA SEC Gating Unit for SEC-05

Technical Data

Technical Data

OPERATING RANGE ±10 Volt
INPUT BNC connector, impedance 100 kΩ, maximum voltage ±10 V
SCALING VC ±10 mV or ±40 mV, selected by toggle switch
SCALING CC 1 nA/V or 0.1 nA/V, selected by toggle switch
STEP SIZE VC: 1 mV – 999 mV; CC: 0.01 nA – 9.99 Na
OUTPUT BNC connector, impedance 50Ω, maximum voltage ±10 V
GATE TTL INPUT 10 kΩ, LO: <2 V; HI: 3 V – 5 V
DIMENSIONS 19” rackmount cabinet, 19” (483 mm), 10” (250 mm), 1.75” (44 mm)
POWER REQUIREMENTS 115/230 V AC, 60/50 Hz, fuse 0.4/0.2 A, slow

Downloads

Downloads

Manuals GIA-05X manual
Brochure GIA-05X
