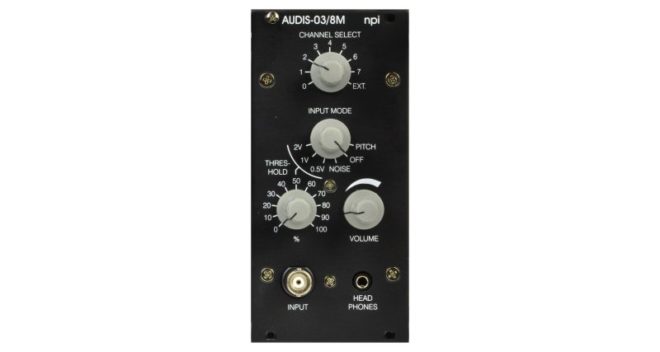

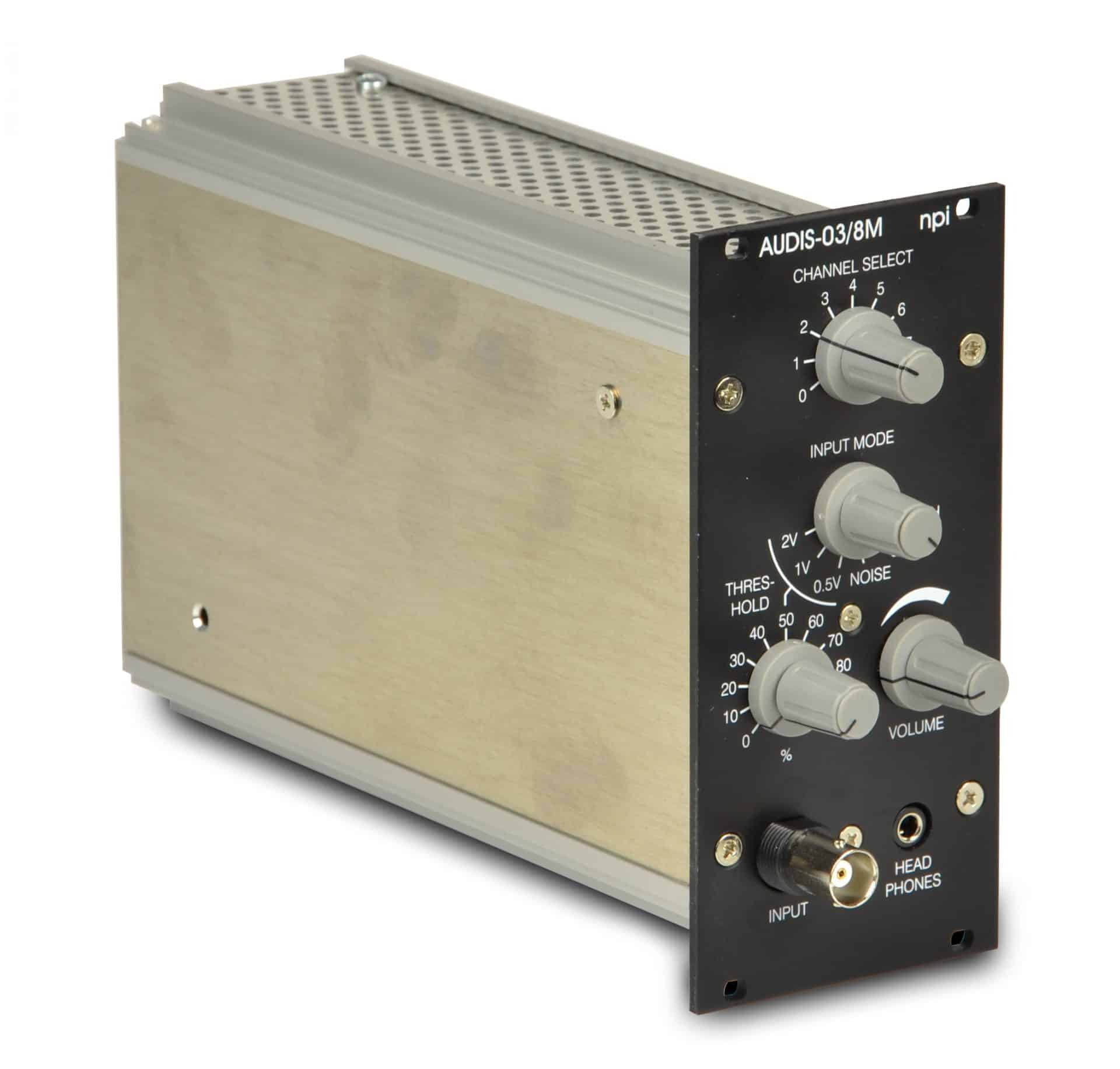

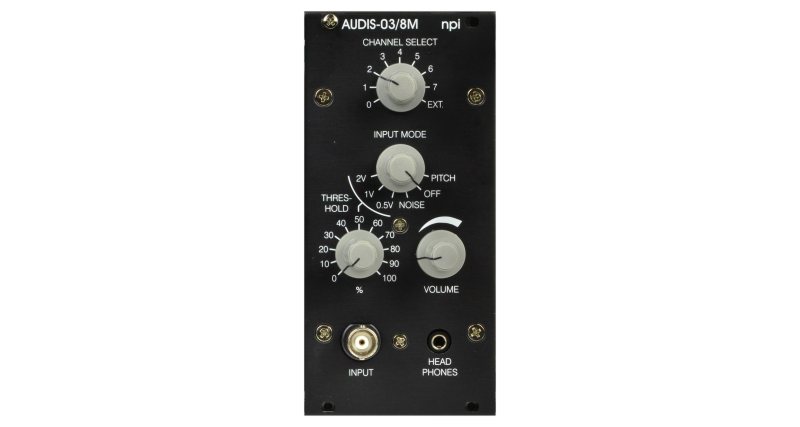

AUDIS-03/8M – Audio Monitor

Add to Wishlist Remove from Wishlist

Audio Monitor Module

  • Input for up to 9 channels
  • Noise and Pitch mode
  • Built-in speaker and headphone jack
  • Also available as stand-alone device
Categories: , ,

Features

  • Two operation modes
    • PITCH mode: the input signal is converted into a tone
    • NOISE mode: the input signal is highpass filtered to monitor the noise
  • THRESHOLD function sets the level for NOISE mode
  • THRESHOLD with 3 ranges (0.5V, 1V or 2V max.)
  • and fine tuning in % of max. value
  • Up to 8 input channels via EPMS bus, one input with BNC connector
  • Built-in speaker with volume control
  • HEAD PHONES 3.5 mm stereo jack audio connector

Ordering

Part No. Description
AUDIS-03/8M-8 Audio monitor module, 2 to 8 channels
AUDIS-03/8M 1 channel with BNC input

Technical Data

Audio Mode PITCH / NOISE / THRESHOLD, selected by rotary switch with OFF position
Threshold RANGE and FINE control, range: 0.5 V, 1 V or 2 V max.
Input BNC connector, impedance 100 kW, high-pass filtered in NOISE mode
Voltage Range ±10 V
Volume Control volume of the speaker, one-turn potentiometer
Head Phones 3.5 mm stereo jack audio connector, 1 kW, 1 V max.
Size front panel 12 HP (60.6 mm) x 3U (128,5 mm), 7″ (175 mm) deep

Downloads

Manual Audis-03_8M manual
Brochure AUDIS-03M
References Audis Reference List
