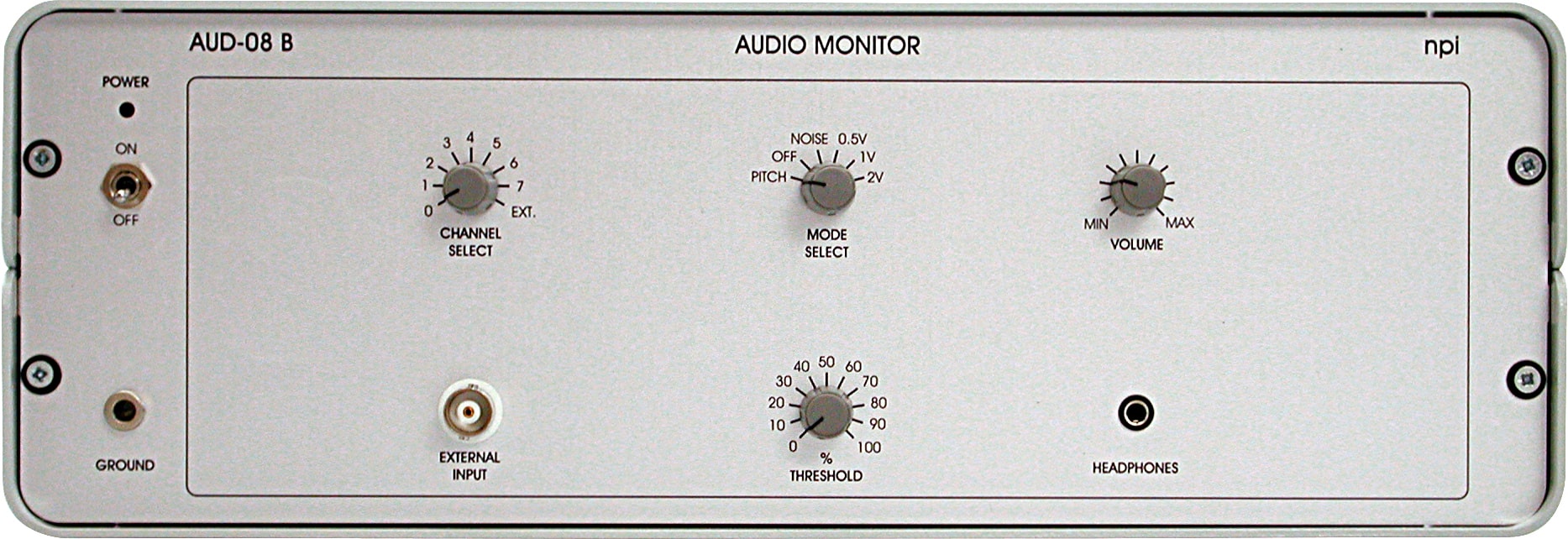

AUD-08B - Audio Monitor

AUD-08B – Audio Monitor

Add to Wishlist Remove from Wishlist

Audio Monitor

  • DISCONTINUED
Categories: , ,

Features

  • PITCH mode: the input signal is converted into a tone
  • NOISE mode: the input signal is highpass filtered to monitor the noise
  • THRESHOLD function sets the level for NOISE mode:
    three ranges (0.5, 1, 2 V), adjustable from 0% to 100%
  • Built-in speaker with volume control and HEADPHONES stereo jack audio connector
  • Shares power supply with EXT-02 B, system bus connection to up to four EXT-02 B amplifiers

Ordering

Part No. Description
EXB-EXT-02B EXT-02B Two Channel Low-cost Extracellular Amplifier (master version)
EXB-EXT-02BS EXT-02B Two Channel Low-cost Extracellular Amplifier (slave version)
EXB-HS Standard Headstage for EXT-2B Amplifier
EXB-AUDIS-08B DISCONTINUED
EXB-RES-08B DISCONTINUED
TMR-01B DISCONTINUED
ISO-01B DISCONTINUED
ISO-01BP DISCONTINUED
ISO-01B-ACCU DISCONTINUED
ISO-01B-PWR DISCONTINUED

Technical Data

AUDIO MODE:
PITCH / NOISE / THRESHOLD, selected by rotary switch with OFF position

THRESHOLD:
RANGE and FINE control, range: 0.5 V, 1 V or 2 V max.

INPUT:
BNC connector, impedance 1 MW, high-pass filtered in NOISE mode

Voltage RANGE:
±10 V

VOLUME control:
volume of the speaker, one-turn potentiometer

HEAD PHONES:
3.5 mm stereo jack audio connector, 1 kW, 1 V max.

Dimensions:
305 x 180 x 105 mm3 (W x D x H)

Downloads

Manuals:
EXT-02B Manual
TMR-01B Manual
AUD-08B Manual
ISO-01B Manual
REL-08B Manual

Brochures:
B-Series Brochure
TMR/ISO Brochure
