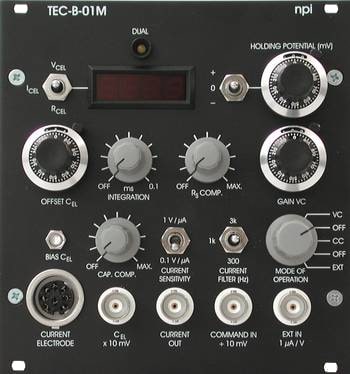

TEC-B-01M
- Module for EPMS-07
- Works only in combination with BA-01M module
- Adds a current electrode to your BA-01M
Module version of the TEC-B01, works ONLY with BA-01M – Module
| Part No. | Description |
| TEC-B-01M | High voltage amplifier module to upgrade of BRAMP for real two electrode VC and CC |
| Modes of Operation | CC: Current Clamp mode VC: Voltage Clamp mode OFF: Current- and Voltage Clamp disabled, BA amplifier operational EXT: External mode MODE selection: by rotary switch |
| Headstages | Potential headstage Bridge amplifier headstage is used for potential measurement Current headstage Operating voltage: ±45 V Input resistance: >1012 Ω Electrode connector: BNC, shield is grounded Ground: 2.4 mm connector or headstage enclosure Size: 23 x 70 x 26 mm, enclosure grounded Holding bar: diameter 8 mm, length 10 cm Current range: 450 nA / 100 MΩ or 4.5 µA / 10 MΩ |
| Current electrode parameter controls | Offset compensation: ten-turn control, ±1200 mV |
| Electrode Resistance Test | obtained by application of square current pulses ±10 nA, display XX.X MΩ, selected by switch |
| Current Outputs | Filtered output: sensitivity: set by current range switch, with low-pass Bessel filter, output impedance 50 Ω Current range switch: 1 µA / V, 10 µA / V or 100 µA / V DISPLAY: XX.XX µA |
| Current Output Filters | One-pole low-pass Bessel filter 6 corner frequencies: 100, 300, 500, 1k, 3k or 5k Hz. |
| Current Clamp (current stimulus input from bridge amplifier) | Inputs: 100 nA / V Input impedance: >100 kΩ HOLD: X.XX µA, ten-turn digital control with -/0/+ switch, maximum 1000 nA. |
| Voltage Clamp | Input sensitivity: ±10 mV Input impedance >100 kΩ HOLD: XXX mV, ten-turn digital control with +/0/- switch, maximum 1000 mV |
| Manual | TEC-B-01M manual |
