Sensapex uMs Microscope Stage
Add to Wishlist
Remove from Wishlist

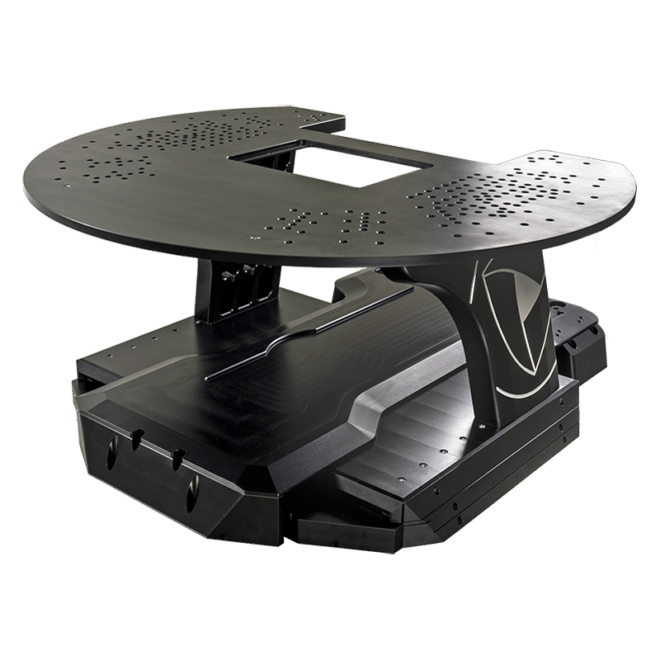

Sensapex uMs motorized microscope stage for electrophysiology
Benefits
- Flexible and easy to use – modular yet integrated
- Most stable and solid design – our xy-stage is stiffer than a railway rail!
- Smooth positioning – minimum vibrations, also during fast speed
- Highest accuracy – real-time closed-loop control
- Compact but versatile – slim where needed for practically unlimited scalability
- High resolution and large range – 4 nm resolution over 85×120 mm (xy) and 40 mm (z-focus) range
- Automation ready – integrated with short latency PC connection and open-source SDK
- Wide selection of optics and imaging options – choose from any Nikon and other supported 3rd party options
Ordering
For pricing and ordering contact us.
sales@npielectronic.com
Technical Data
| uMs-FXY Fixed stage |
| Height range |
183 – 213 mm |
| Footprint |
32 x 113 mm each leg |
| Stage top (WxDxH) |
500 x 419 x 183 mm |

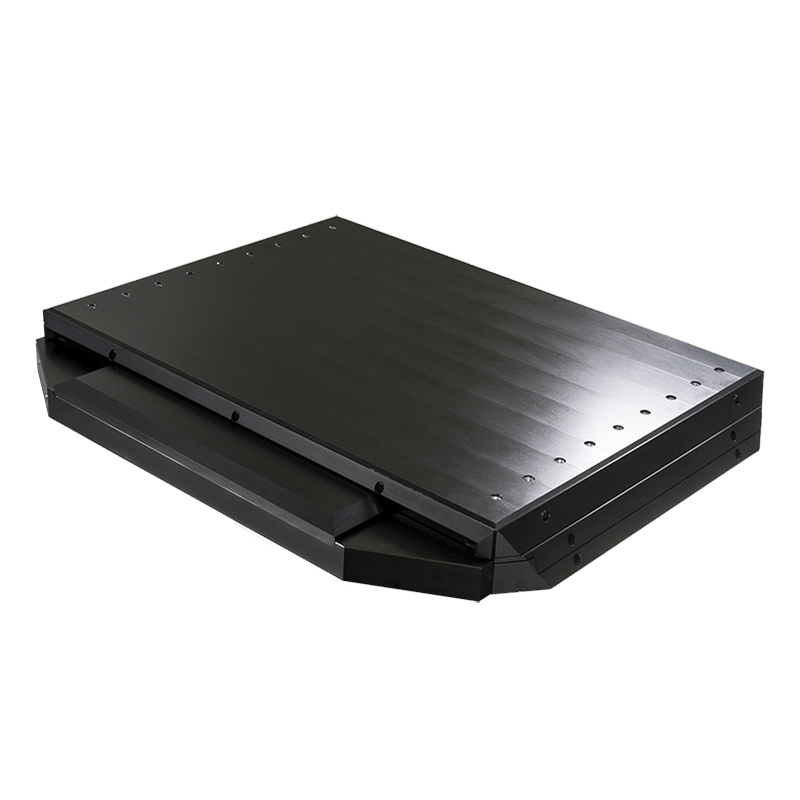

| uMs-MXY motorized translator |
| Positioning range |
120 x 85 mm² (XY) |
| Resolution / repeatibility: |
4 nm / 100 nm |
| Max. speed |
10 mm/s |
| Dimensions |
445x380x50 mm |
| uMs-MXY motorized translator with uMs-FXY Fixed stage and uMp-AXE-BRE Bridge |
| Positioning range |
120 x 85 mm² (XY) |
| Resolution / repeatibility: |
4 nm / 100 nm |
| Max. speed |
10 mm/s |
| Dimensions |
445x380x50 mm |
