Sensapex uMs Closed Loop Automated Microscope

Add to Wishlist Remove from Wishlist

Sensapex uMS Microscopes

  • Optimized for highest stability and minimum vibrations
  • Fully motorized with closed-loop control for highest accuracy
  • Compatible with major manufacturers’ optics and imaging products
  • Combine with uMp micromanipulators and uMc pressure control to automate patch clamp recordings

Benefits

  • Flexible and easy to use – modular yet integrated
  • Most stable and solid design – our xy-stage is stiffer than a railway rail!
  • Smooth positioning – minimum vibrations, also during fast speed
  • Highest accuracy – real-time closed-loop control
  • Compact but versatile – slim where needed for practically unlimited scalability
  • High resolution and large range – 4 nm resolution over 85×120 mm (xy) and 40 mm (z-focus) range
  • Automation ready – integrated with short latency PC connection and open-source SDK
  • Wide selection of optics and imaging options – choose from any Nikon and other supported 3rd party options

Ordering

For pricing and ordering contact us.

sales@npielectronic.com

Technical Data

uMs-MCU Motor controller
Channels 4 pc
Dimensions 150 x 74 x 49 mm
uMs-OBJ Motorized objective changer
Position 1 M25 objective
Position 2 M25 / M32 objective

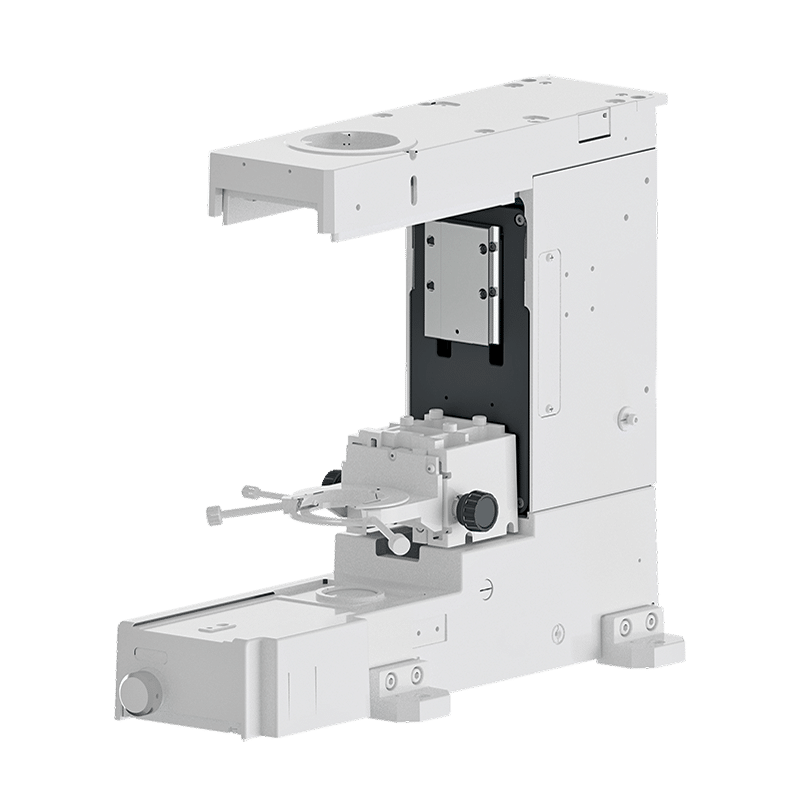

uMs-FN1 upright microscope with motorized focus
Stand Customized Nikon FN1
Positioning range 40 mm
Resolution / repeatibility: 4 nm / 100 nm
Max. speed 10 mm/s
uMs-FXY Fixed stage
Height range 183 – 213 mm
Footprint 32 x 113 mm each leg
Stage top (WxDxH) 500 x 419 x 183 mm

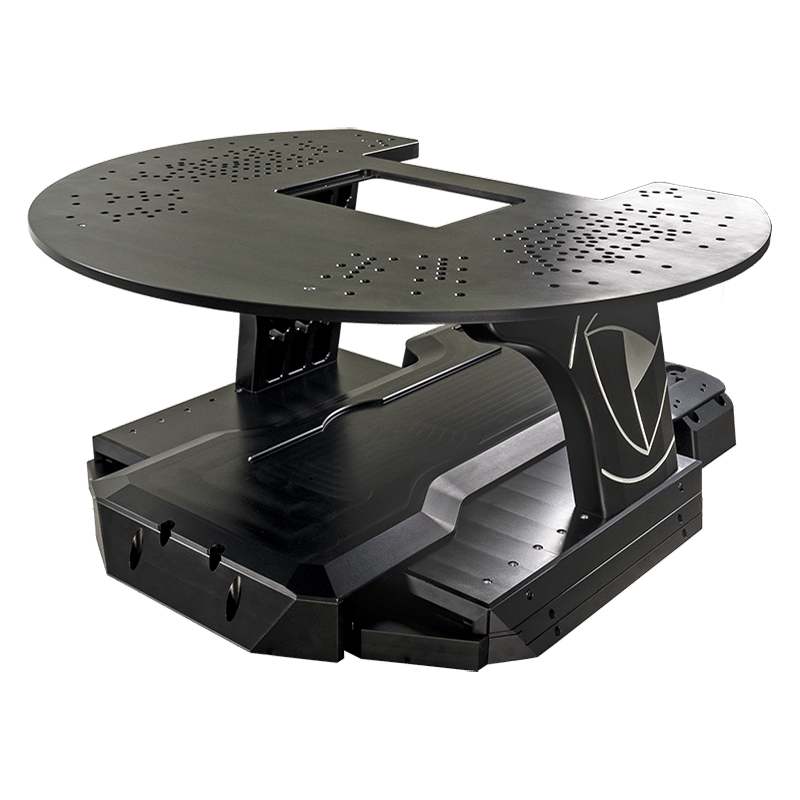

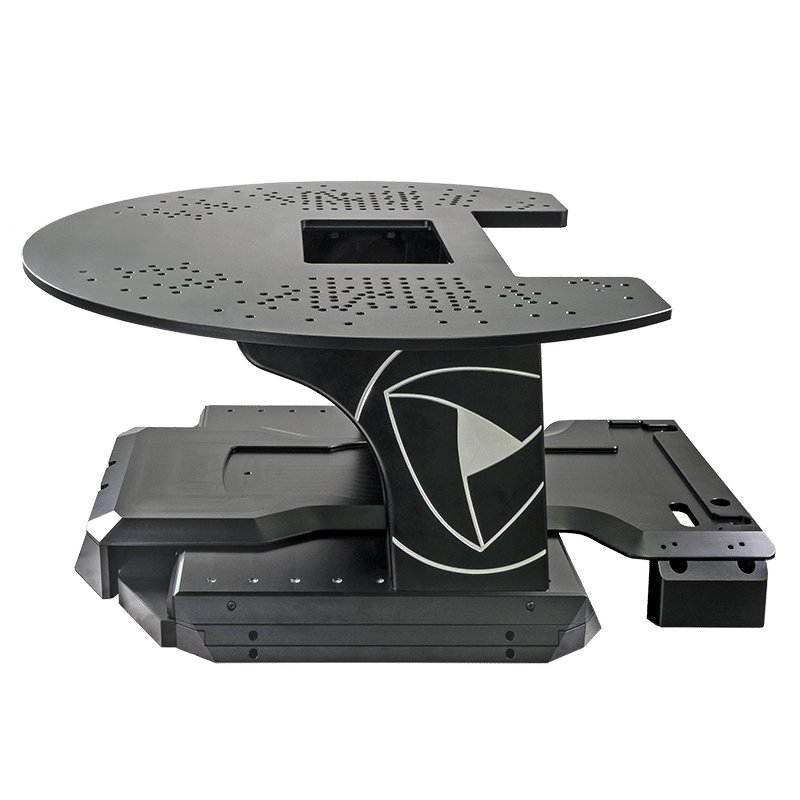

uMs-MXY motorized translator
Positioning range 120 x 85 mm2 (XY)
Resolution / repeatibility: 4 nm / 100 nm
Max. speed 10 mm/s
Dimensions 445x380x50 mm
uMs-MXY motorized translator with uMs-FXY Fixed stage and uMp-AXE-BRE Bridge
Positioning range 120 x 85 mm2 (XY)
Resolution / repeatibility: 4 nm / 100 nm
Max. speed 10 mm/s
Dimensions 445x380x50 mm

ABOUT

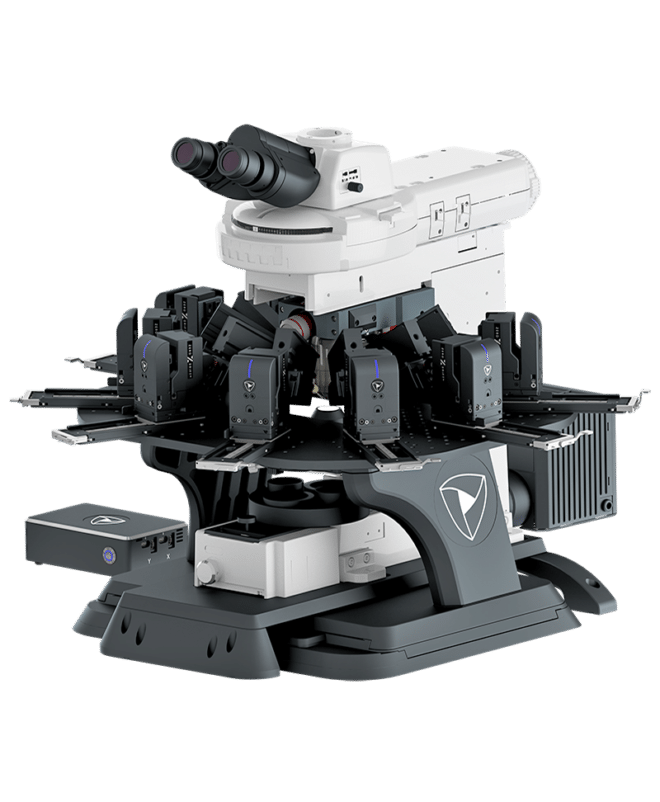

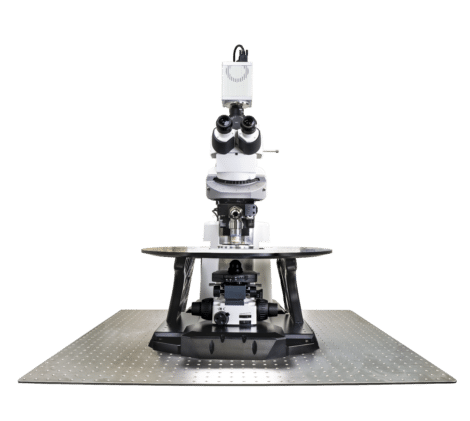

The Sensapex uMs is a highly reliable microscope developed with slice electrophysiology and imaging in mind. The microscope is paired with a matching stage designed to deliver the smooth motion and stiffness required for demanding experiments. The uMs is a proven solution for experiments ranging from patch clamp recordings to voltage imaging at kHz frame rates. Based on Sensapex’ expertise in motion control, it brings accuracy and reproducibility to your experiments.

Benefits

Benefits

  • Flexible and easy to use – modular yet integrated
  • Most stable and solid design – our xy-stage is stiffer than a railway rail!
  • Smooth positioning – minimum vibrations, also during fast speed
  • Highest accuracy – real-time closed-loop control
  • Compact but versatile – slim where needed for practically unlimited scalability
  • High resolution and large range – 4 nm resolution over 85×120 mm (xy) and 40 mm (z-focus) range
  • Automation ready – integrated with short latency PC connection and open-source SDK
  • Wide selection of optics and imaging options – choose from any Nikon and other supported 3rd party options

Ordering

Ordering

For pricing and ordering contact us.

sales@npielectronic.com

Technical Data

Technical Data

uMs-MCU Motor controller
Channels 4 pc
Dimensions 150 x 74 x 49 mm
uMs-OBJ Motorized objective changer
Position 1 M25 objective
Position 2 M25 / M32 objective
uMs-FN1 upright microscope with motorized focus
Stand Customized Nikon FN1
Positioning range 40 mm
Resolution / repeatibility: 4 nm / 100 nm
Max. speed 10 mm/s
uMs-FXY Fixed stage
Height range 183 – 213 mm
Footprint 32 x 113 mm each leg
Stage top (WxDxH) 500 x 419 x 183 mm
uMs-MXY motorized translator
Positioning range 120 x 85 mm2 (XY)
Resolution / repeatibility: 4 nm / 100 nm
Max. speed 10 mm/s
Dimensions 445x380x50 mm
uMs-MXY motorized translator with uMs-FXY Fixed stage and uMp-AXE-BRE Bridge
Positioning range 120 x 85 mm2 (XY)
Resolution / repeatibility: 4 nm / 100 nm
Max. speed 10 mm/s
Dimensions 445x380x50 mm
