LSD-1 Light Stimulating Device

Add to Wishlist Remove from Wishlist

OptoPatcher

  • LED intensity control via manual knob or via analog signal for computer control
  • Low-noise electronics for integration into electrophysiology setups
  • Easily changeable LED’s for different wavelength use
  • Combine with OptoPatcher for localized stimulation

Details

LSD-1The LSD-1 uses a single LED to enable the application of a narrow wavelength of light for use as illumination or stimulation of a sample or biological preparation. Using a liquid light guide, or fiber optic cable (sold separately), the LSD’s output can be aimed at a sample on a microscope stage for field illumination to reveal photofluors or other luminescent substances. The light guide can also be introduced to microscope optics by connection to an appropriate port on a microscope to provide field illumination.



LSD-1
The LSD-1 via a fiber optic cable can also be connected to the OptoPatcher electrode holder for stimulation through a patch pipette.



LSD-1The intensity of the LED can be controlled manually by a dial on the top of the controller, or an analog signal can be connected to the side BNC to provide computer control of the intensity and on/off of the LED via data acquisition system.

If necessary, the LED can be changed to another wavelength via a simple procedure.

Ordering:

Part-No. Description
LSD-1 One channel light stimulating device using high power LED with 3mm light pipe adapter- specify wavelength when ordering.
LSD-LG 3mm Standard liquid light guide
LED-XXX Replacement LED module for LSD-1, includes heat sink, LED, PCB and connectors. XXX is specified wavelength

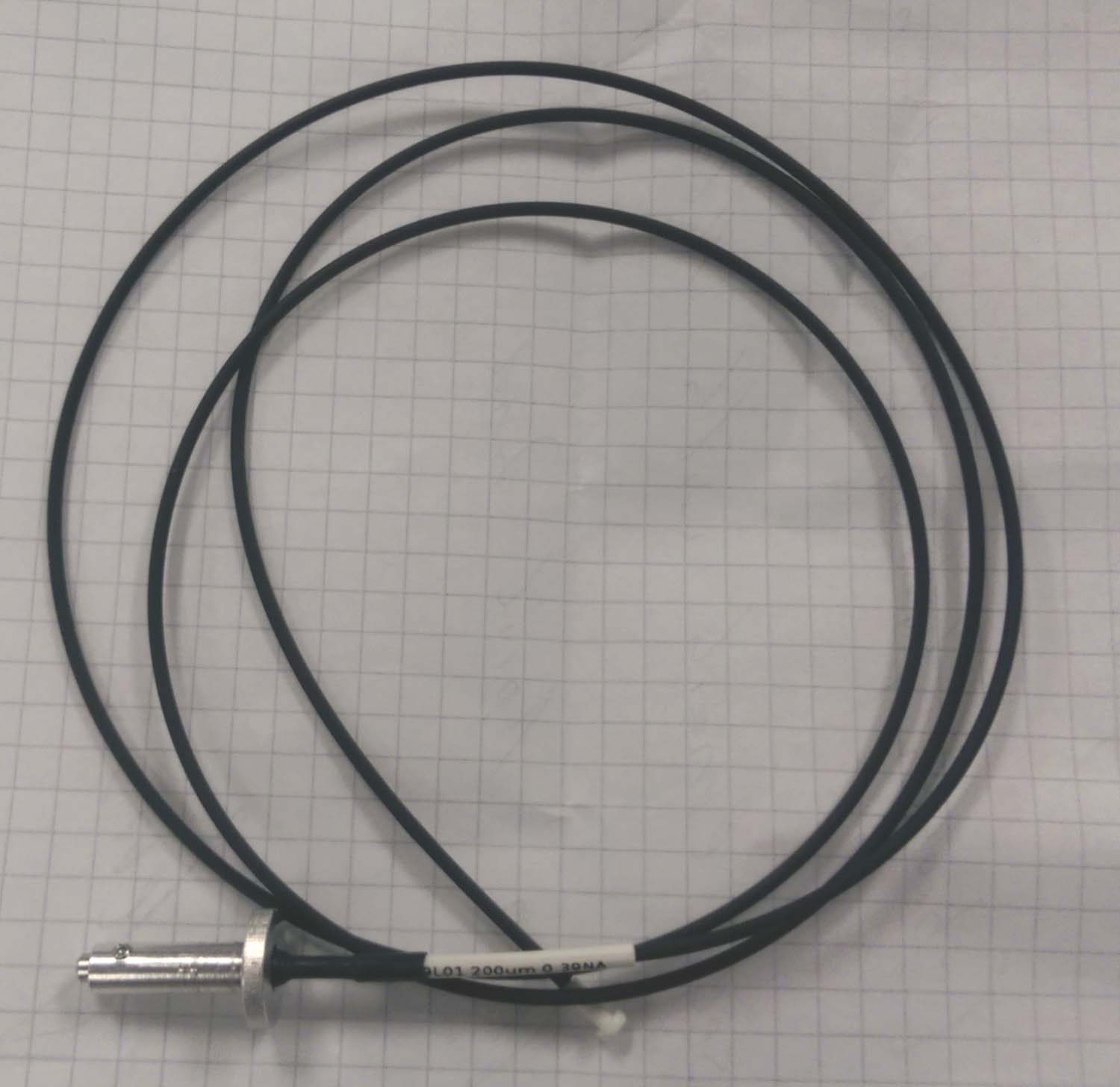

LSD-LG-OPTO OptoPatch light guide without light guide ferrule and set screw holder to LSD
LSD-Opto-Adapt-Set 200um light guide ferrule and set screw holder to adapt LSD-1 to OptoPatcher

Downloads

Manual LSD-1 manual (plus optopatcher)
Brochure LSD-1 & Optopatcher

ABOUT

The LSD-1 is a low-cost single-LED illumination device. It can connect to a liquid light guide for illuminating large areas, or to a fiber optic cable to illuminate more focally.

Several LED wavelenghts are available to activate different optogenetic dyes. The LSD-1 is a simple light source to be used with the OptoPatcher.
