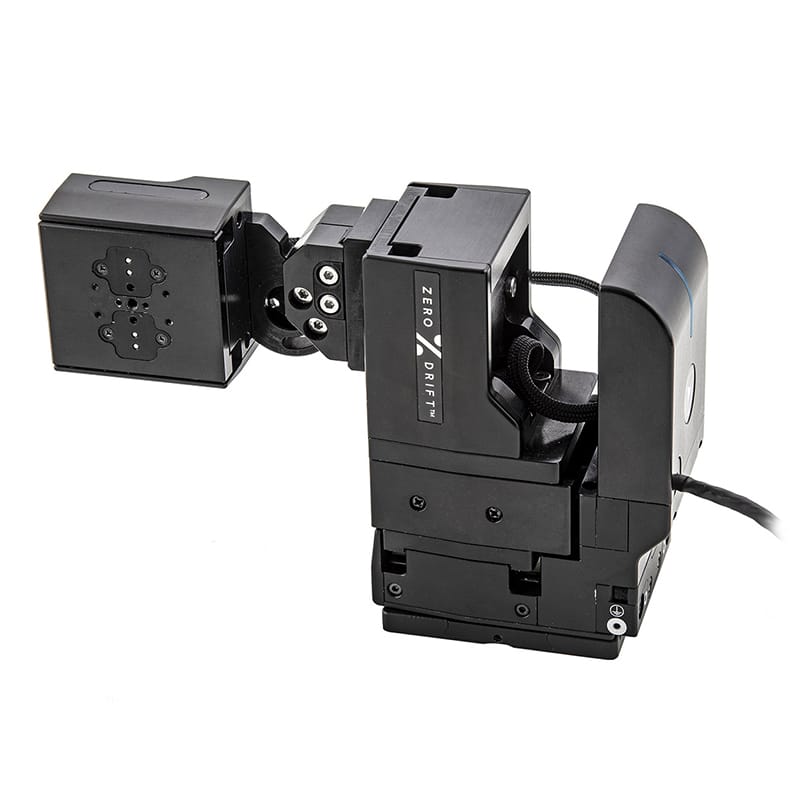

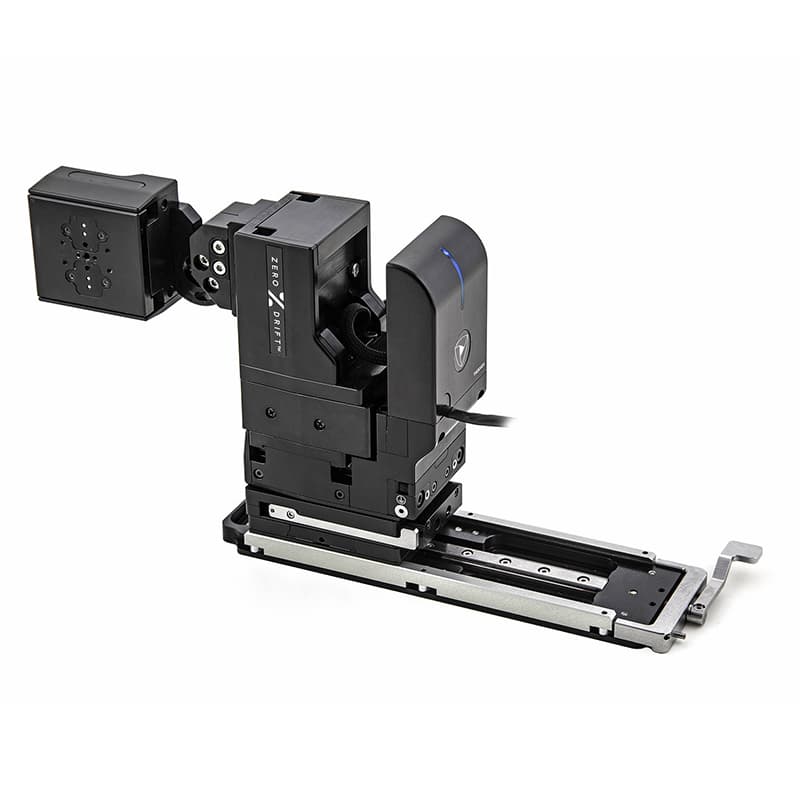

Sensapex uMp-4 Micromanipulator

Add to Wishlist Remove from Wishlist

Sensapex uMp-4 Micromanipulator with 1-click automated probe insertion feature

Ordering

For pricing and ordering contact us.

sales@npielectronic.com

Product Code Description
Control interface
uMp-TSC Touch screen control unit*
uMp-RW3 Rotary wheel remote interface with 3 wheels
uMp-RW4 Rotary wheel remote interface with 4 wheels
uMp-HUB 1 to 4 HUB with extra battery*
Accessories for controllers
uMp-CHG Charger with US plug
uMp-ETH Ethernet cable for PC connection
uMp-ETS Ethernet switch
Micromanipulators
uMp-3 Triple axis manipulator, simple bolt-on mounting base**
uMp-4 Four axis manipulator; simple bolt-on mounting base**
Software upgrades for uMp-micromanipulators, available from Sensapex webstore
uMp-VA Virtual axis option (virtual axis, simulatenous axis drive enabler, axis limit)
uMp-PEN Penetration mode option (penetration steps with definible length and speed)
uMp-TRIG Hardware trigger (connector cables and firmware supported)
Electrode exchange modules
uMp-EXM Add-on rotation, flip & slide module, 160 mm
uMp-EXM-L Add-on rotation, flip & slide module, 203 mm
Accessories for micromanipulators
uMp-FLP Flip plate kit for facing up-installation
uMp-DVT Dove-tail type headstage adapter
uMp-RHL Adpter for holding rods with 4-10 mm OD rods/holders
uMp-MPR Multipurpose adapter 3-10 mm OD rods / holders
uMp-NPH Adapter head for Neuropixel probes
uMp-NPR-120 Extension rod for uMp-NPH adapter head for Neuropixel probes
uMp-NPR-200 Extension rod for uMp-NPH adapter head for Neuropixel probes
uMp-HEKA Heka EPC-10 dove-tail adapter plate kit
uMp-AXONPLATE Axon dove-tail adapter plate kit
Posts
uMp-PST-150 150-210 mm post with manipulator mount
uMp-PST-200 200-310 mm post with manipulator mount
uMp-PST-250 250-410 mm post with manipulator mount
uMp-PST-300 300-510 mm post with manipulator mount
*incl. charger and ethernet cable
**Shipped as right-handed unless left-handed is specified; customer reconfigurable at any time

Technical Data

Positioning range: 20x20x20 mm3 (XYZ)
Resolution / repeatibility: 5 nm / 100 nm
Max. speed: 5 mm/s
Load: 0 – 150 g
True approach angle: 0 – 45 | 90* degrees
4th axis: virtual | physical (optional)
Table mounting: Bolt
Electrode exchange**: Slide + flip | rotate
Dimensions: 39x93x101 mm
*Requires 4th physical axis
**Handedness, mounting and electrode exchange options are customer exchangeable

ABOUT

High-resolution micromanpulators are required to move recording electrodes in electrophysiology setups. The uMp manipulators from Sensapex are unique in their stability and ease of use.

The 4-axis version of this manipulator is ideal for inserting long shanked high density pixel probes into brain tissue: set distance and speed and let the manipulator move automatically.

The state-of-the-art controller allows connection of enough manipulators or x/y stages to control even the largest experimental setups. With the uMs microscope system all this happens in one environment – and can even be controlled by software.
