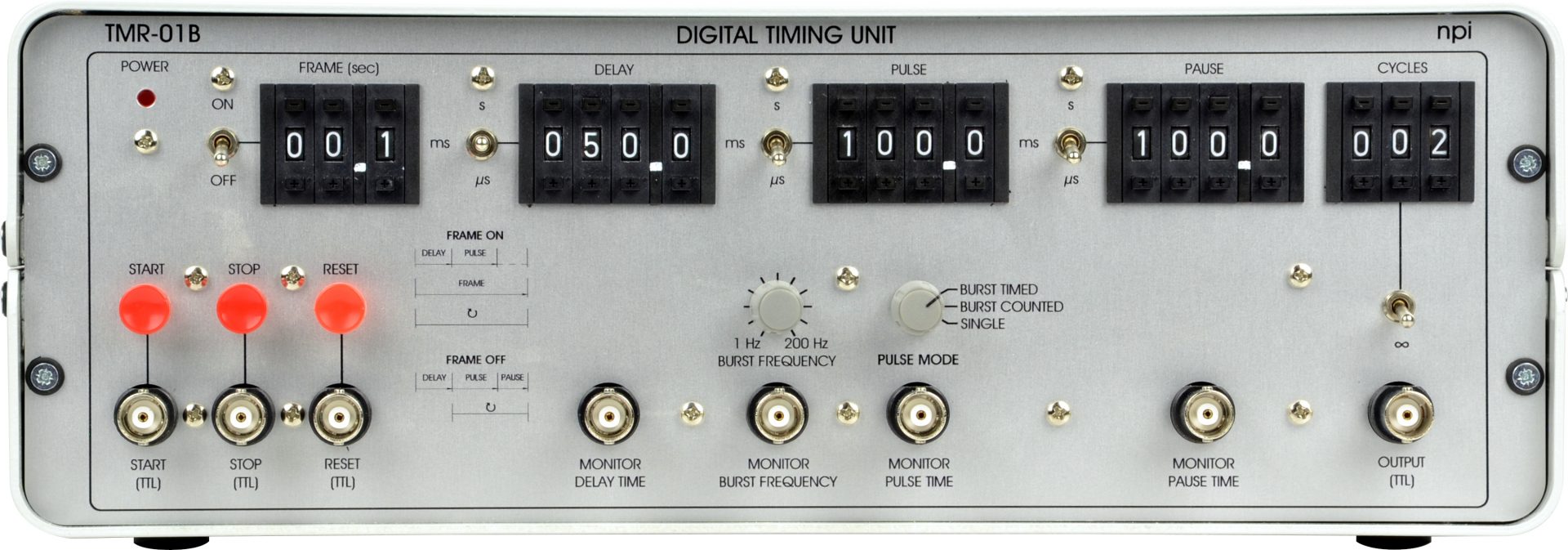

TMR-01B - Timer

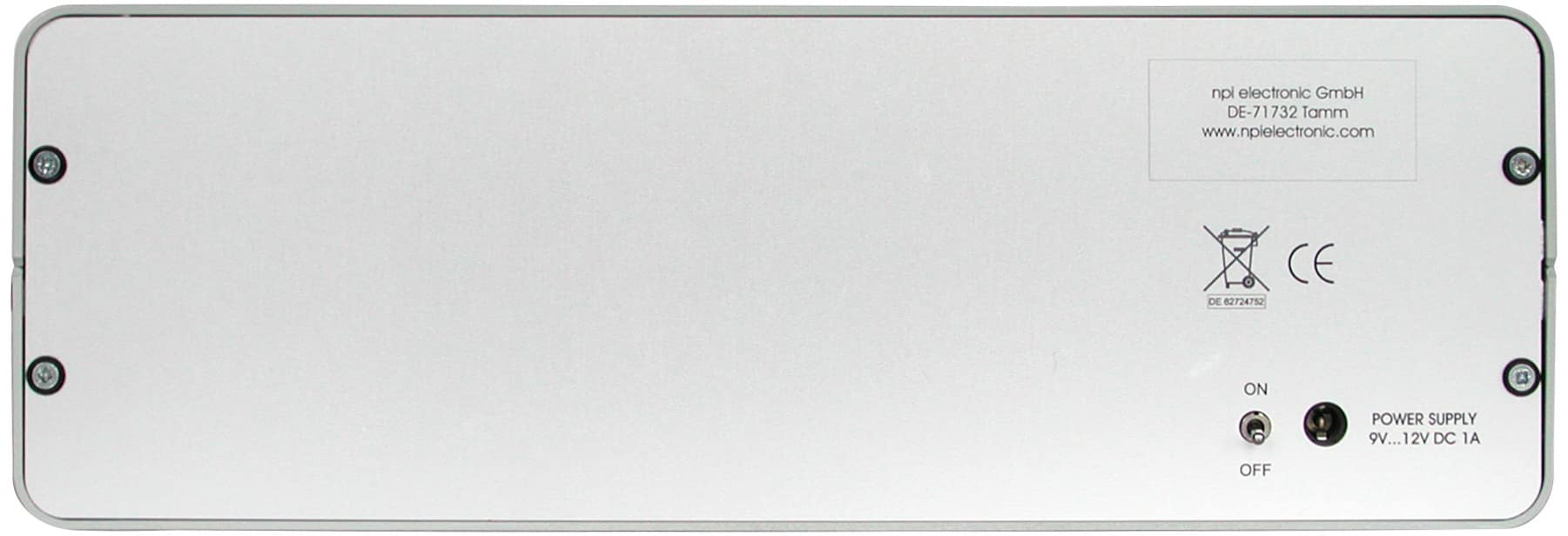

TMR-01B - Timer - Image 2
TMR-01B - Timer - Image 3

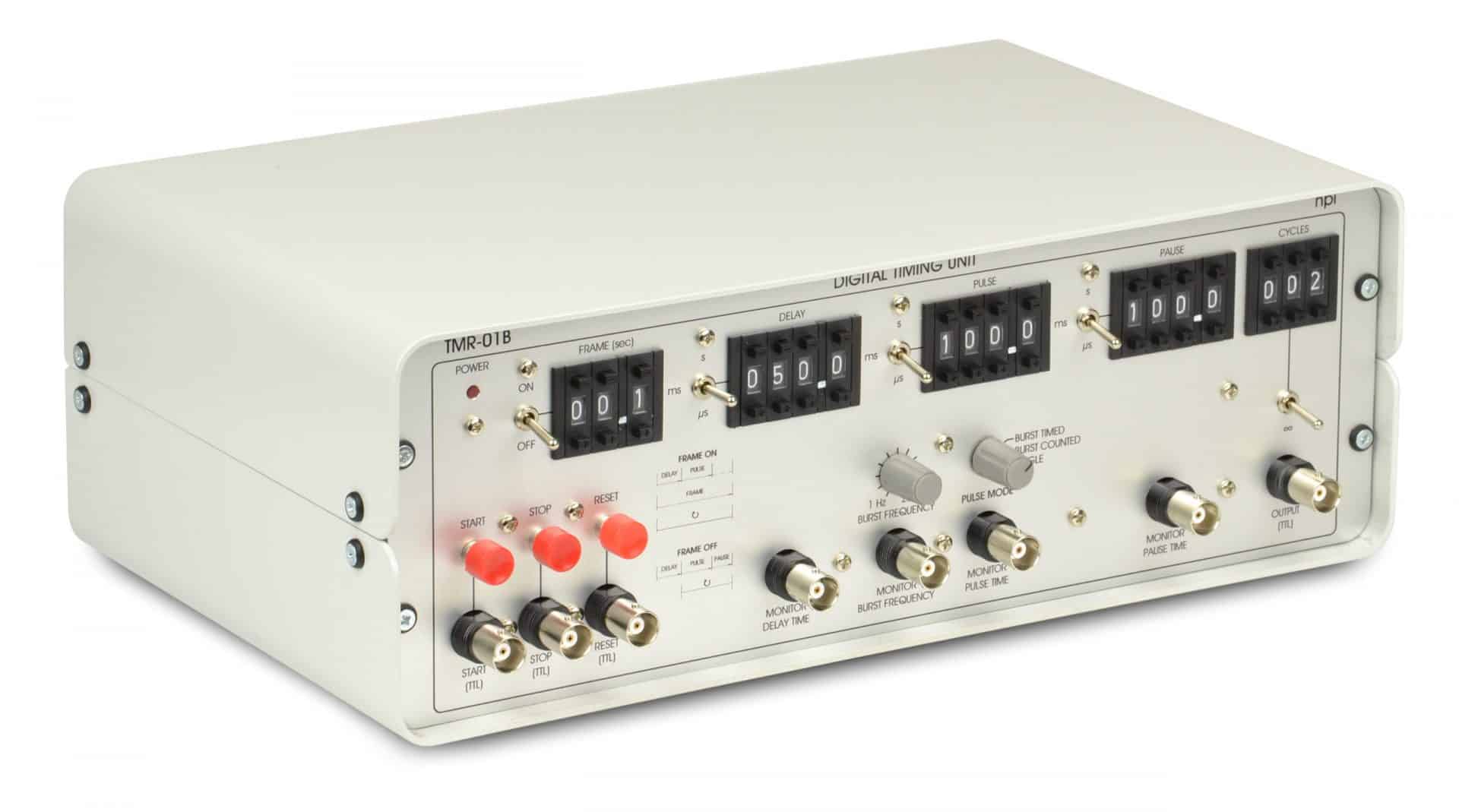

TMR-01B – Timer

Add to Wishlist Remove from Wishlist

Versatile Timer

  • No need for a PC
  • Program protocols for stimulation or electroporation
  • Easy selection for number of cycles
Categories: , ,

Features

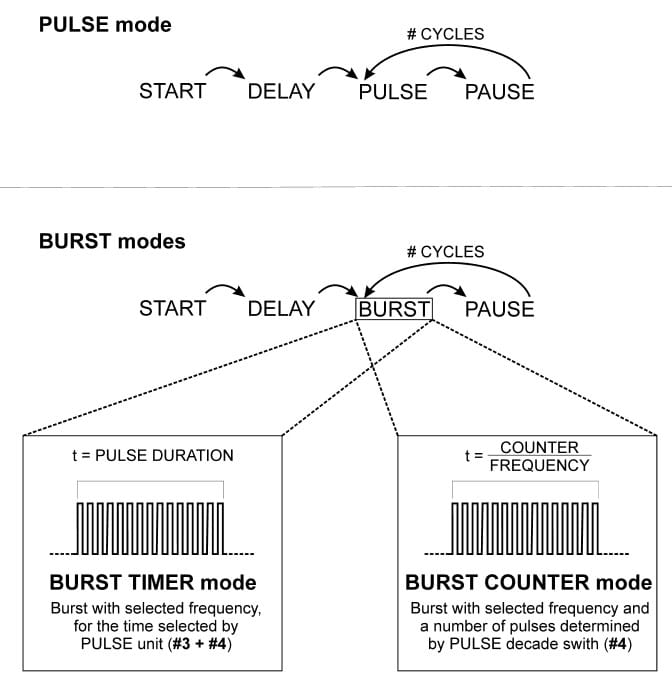

  • PULSE or BURST
  • 2 timing modes:
    • Fixed cycle length
    • Adjust PULSE + PAUSE
  • Monitors for DELAY TIME, BURST FREQUENCY and PULSE TIME
  • START, STOP and RESET manually  or via TTL
  • Timing set by digital push button controls
  • Cascade multiple TMR-01B for complex stimulation patterns
  • Ideal for gating stimulation, amplifiers, iontophoretic and pneumatic drug applicators



Ordering

Part No. Description
EXB-EXT-02B EXT-02B Two Channel Low-cost Extracellular Amplifier (master version)
EXB-EXT-02BS EXT-02B Two Channel Low-cost Extracellular Amplifier (slave version)
EXB-HS Standard Headstage for EXT-2B Amplifier
EXB-AUDIS-08B AUD-08B Audio Monitor System for EXT-02B
EXB-RES-08B REL-08B Electrode Resistance Meter for EXT-02B
TMR-01B TMR-01B Low-cost Digital Timer Unit (desktop)
ISO-01B ISO-STIM-01B Low-cost Isolated Stimulator Unit (desktop, needs battery pack)
ISO-01BP ISO-STIM-01B Low-cost Isolated Stimulator Unit (desktop, needs power supply)
ISO-01B-ACCU Battery Pack (80 V) with charger
ISO-01B-PWR Power Supply for ISO-01B

Technical Data

Input TTL (0 … 5V), impedance: 10kΩ
Output TTL (0 … 5V), impedance: 50kΩ
Burst Frequency 2 … 200Hz
Timing error max. 1 digit
Power requirements 9 … 12V DC, 1A min.; power supply (provided)
Dimensions 305 x 180 x 105 mm3 (W x D x H)

Downloads

Manual TMR-01B manual
Brochures ISO-STIM and Timer

ABOUT

The TMR-01B was designed as an easy-to-use device for generating rectangular pulses of fixed amplitude. The timer creates a (periodic) TTL output signal pattern, where the initial delay, number of cycles, duration of pulse/burst, burst frequency can be adjusted by the user.

Features

Features

  • PULSE or BURST
  • 2 timing modes:
    • Fixed cycle length
    • Adjust PULSE + PAUSE
  • Monitors for DELAY TIME, BURST FREQUENCY and PULSE TIME
  • START, STOP and RESET manually  or via TTL
  • Timing set by digital push button controls
  • Cascade multiple TMR-01B for complex stimulation patterns
  • Ideal for gating stimulation, amplifiers, iontophoretic and pneumatic drug applicators



Ordering

Ordering

Part No. Description
EXB-EXT-02B EXT-02B Two Channel Low-cost Extracellular Amplifier (master version)
EXB-EXT-02BS EXT-02B Two Channel Low-cost Extracellular Amplifier (slave version)
EXB-HS Standard Headstage for EXT-2B Amplifier
EXB-AUDIS-08B AUD-08B Audio Monitor System for EXT-02B
EXB-RES-08B REL-08B Electrode Resistance Meter for EXT-02B
TMR-01B TMR-01B Low-cost Digital Timer Unit (desktop)
ISO-01B ISO-STIM-01B Low-cost Isolated Stimulator Unit (desktop, needs battery pack)
ISO-01BP ISO-STIM-01B Low-cost Isolated Stimulator Unit (desktop, needs power supply)
ISO-01B-ACCU Battery Pack (80 V) with charger
ISO-01B-PWR Power Supply for ISO-01B

Technical Data

Technical Data

Input TTL (0 … 5V), impedance: 10kΩ
Output TTL (0 … 5V), impedance: 50kΩ
Burst Frequency 2 … 200Hz
Timing error max. 1 digit
Power requirements 9 … 12V DC, 1A min.; power supply (provided)
Dimensions 305 x 180 x 105 mm3 (W x D x H)

Downloads

Downloads

Manual TMR-01B manual
Brochures ISO-STIM and Timer
