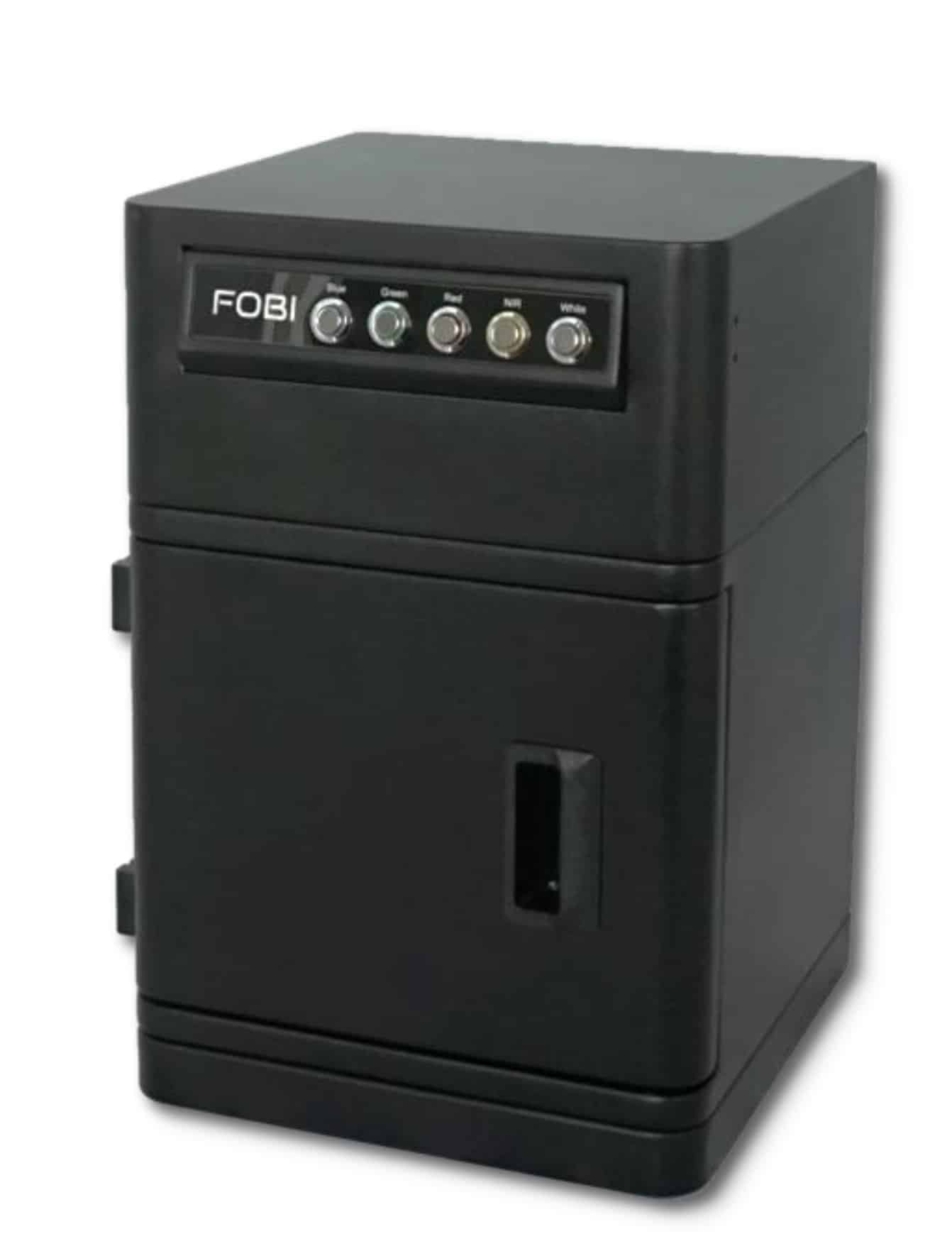

FOBI – Fluorescence In Vivo Imaging System

Add to Wishlist Remove from Wishlist

Generate fluorescence data from tissues and whole organisms.

  • In Vivo, Ex Vivo and In Vitro
  • Small animal and Plant
  • Tumorization, Cell tracking
  • Drug tracking and Gene expression

Technical Specifications

Image Sensor ½” Interline Sony ICX205 1.4 megapixel color CCD sensor
Effective Pixels 1392×1040, 4.65µm square pixels
Frame Rate 15 fps at 1392 x 1040 pixels
Digital Output 24-bit
Interface Connector Standard USB 2.0 high-speed interface
(Faster acquisition with USB 3.0)
Channel Blue (GFP, FITC…), Green (RFP, Cy2…), Red (Cy5.5, DiD…), NIR (Cy7, ICG…)
Weight 9 kg
Size (W x D x H) 260 x 260 x 400 mm

For further information see also CellGenTek’s FOBI webstite.

Ordering

For pricing and ordering, please contact us.

Sales@npielectronic.com

ABOUT

YouTube

By loading the video, you agree to YouTube’s privacy policy.
Learn more

Load video

For more informative videos have a look at the FOBI YouTube channel.

Benefits

Real color data:

color camera with filters for fluorescence imaging

Fast:

30 fps (with USB 3.0) for fast video acquisition

Simple:

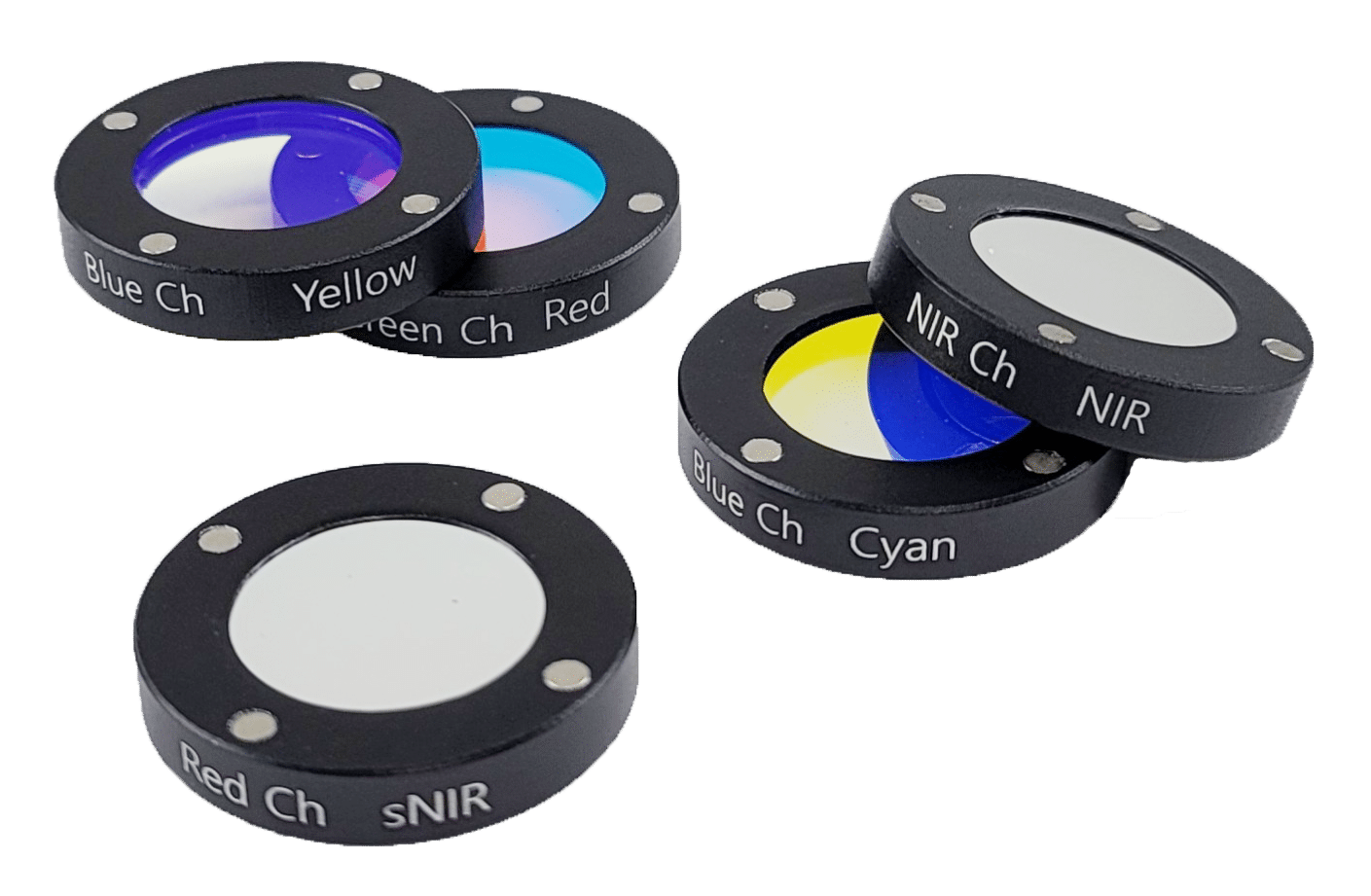

Quick installation, easy filter exchange, no maintenance necessary

Compact size:

26 x 26 x 40 cm

Easy to use:

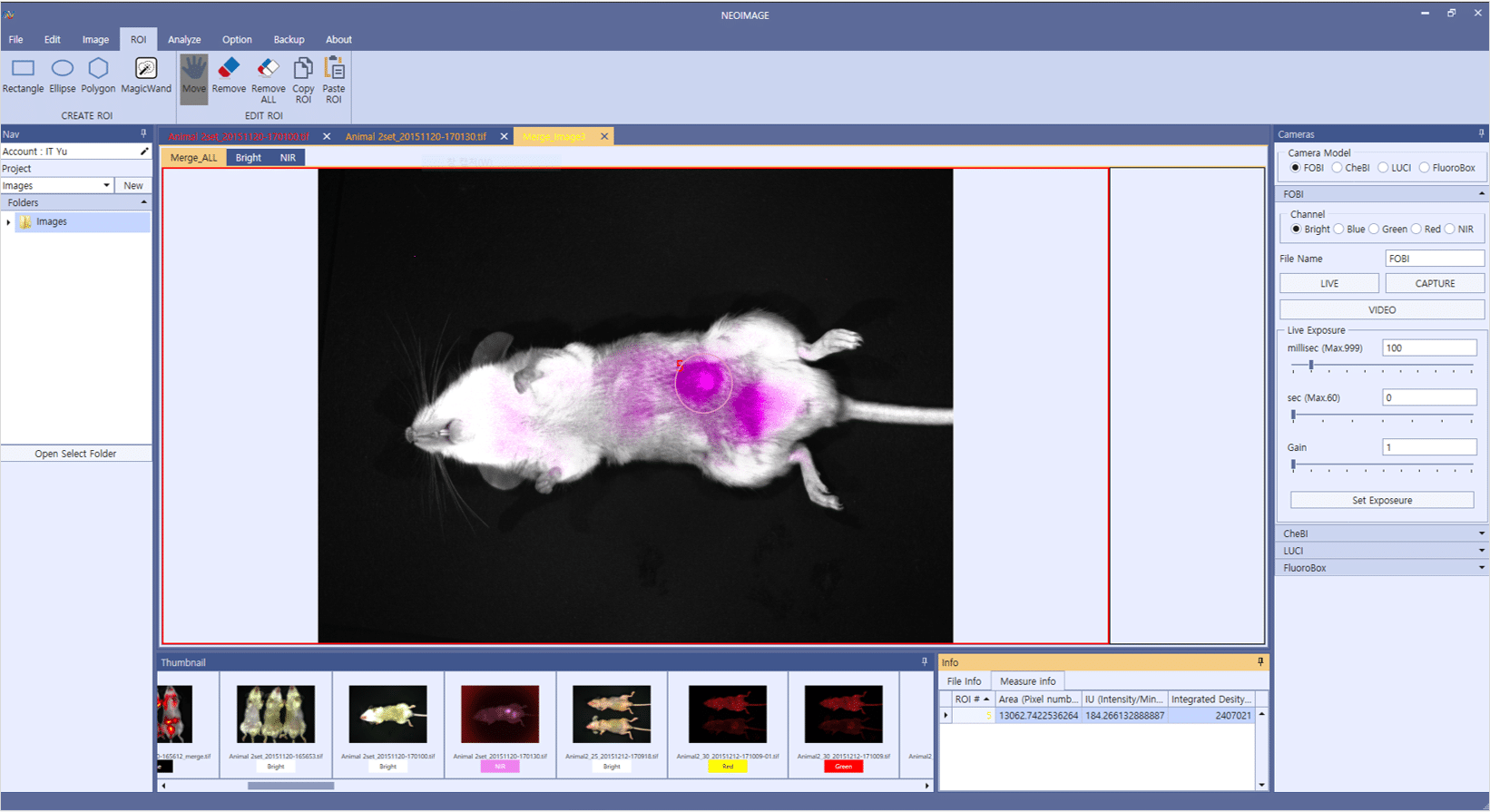

User-friendly software with exposure control, automated background subtraction

Multi function:

Suitable for most fluorescent proteins from GFP to ICG. LEDs in blue, green, red and NIR. Open version available for live surgery

Technical Specifications

Technical Specifications

Image Sensor ½” Interline Sony ICX205 1.4 megapixel color CCD sensor
Effective Pixels 1392×1040, 4.65µm square pixels
Frame Rate 15 fps at 1392 x 1040 pixels
Digital Output 24-bit
Interface Connector Standard USB 2.0 high-speed interface
(Faster acquisition with USB 3.0)
Channel Blue (GFP, FITC…), Green (RFP, Cy2…), Red (Cy5.5, DiD…), NIR (Cy7, ICG…)
Weight 9 kg
Size (W x D x H) 260 x 260 x 400 mm

For further information see also CellGenTek’s FOBI webstite.

Ordering

Ordering

For pricing and ordering, please contact us.

Sales@npielectronic.com
