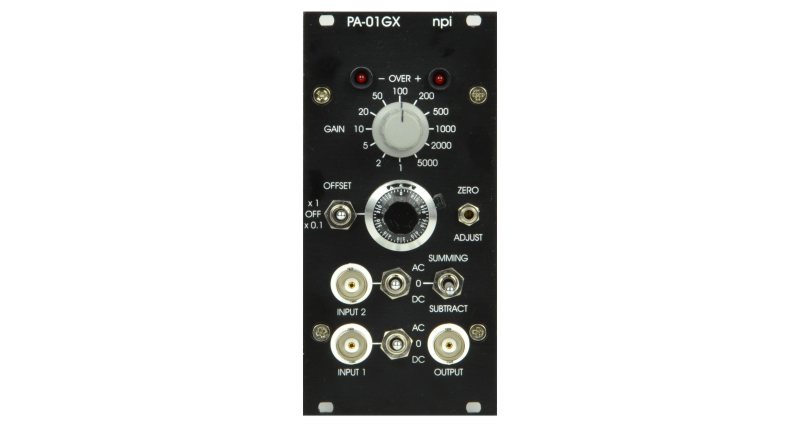

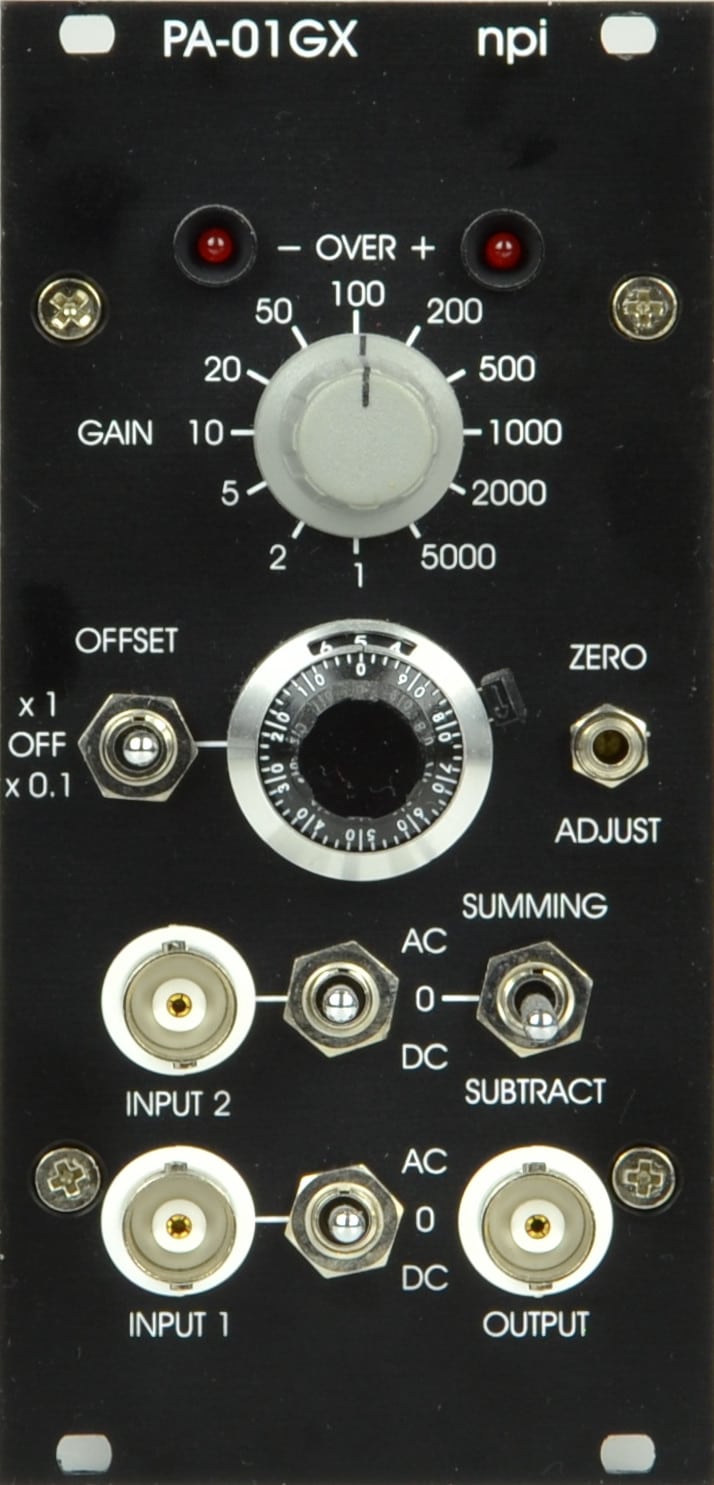

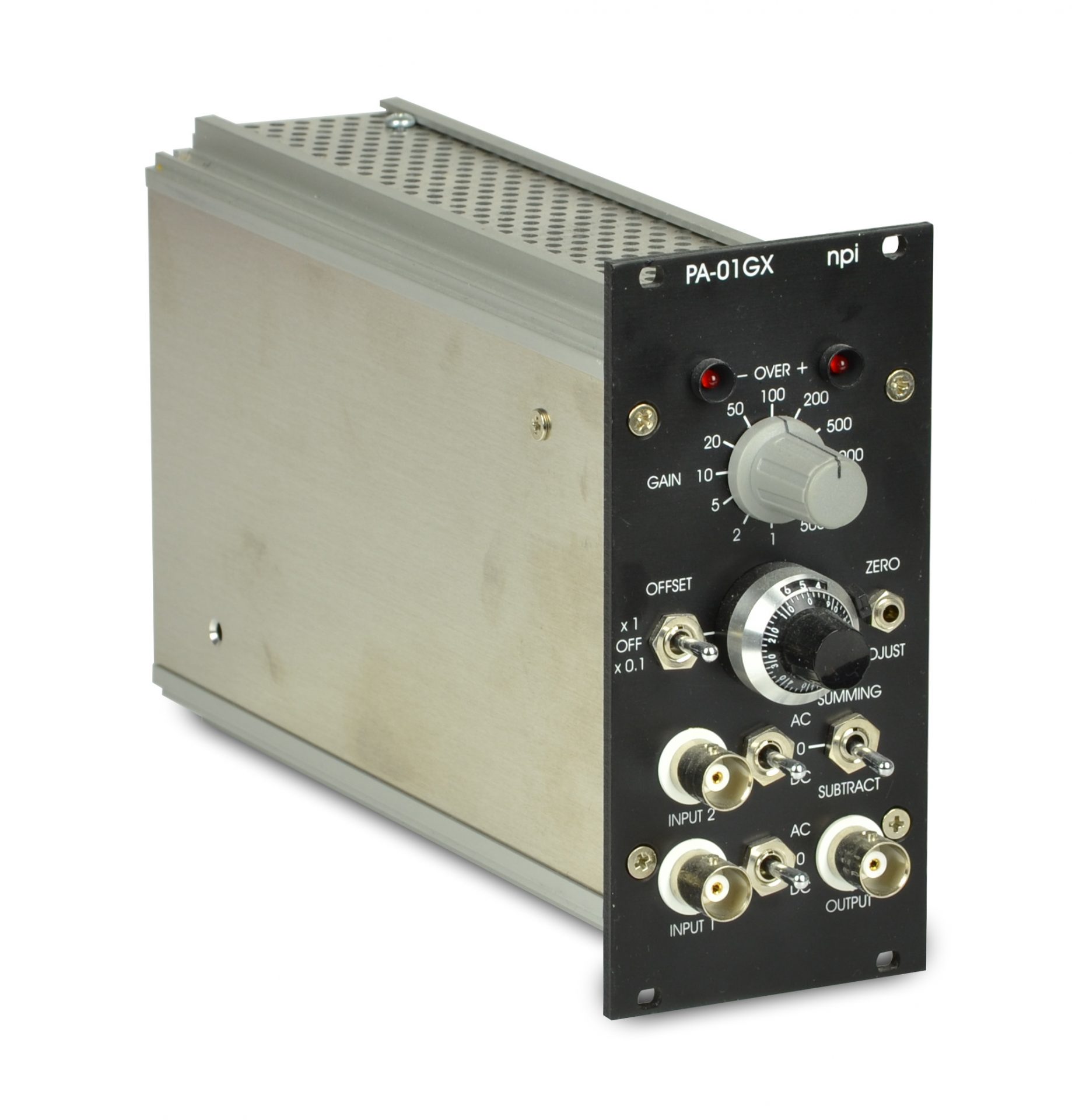

PA-01GX – Summing/Subtraction Amplifier
Add to Wishlist
Remove from Wishlist
Summing and Subtraction Amplifier Module
- Can be used in various online analysis methods
- Variable gain offers large flexibility
Technical Data
| INPUT RANGE: |
±12 V |
| INPUT IMPEDANCE: |
1 MΩ related to ground |
| input capacitance: |
30 pF |
| AC-COUPLING AT INPUT: |
Corner frequency of 1 Hz |
| OFFSET COMPENSATION: |
±1 V (x1) or ±100 mV (x0.1) |
| GAIN: |
Rotary switch: 1-2-5-10-20-50-100-200-500-1000-2000-5000 |
| OUTPUT IMPEDANCE: |
range: ±12 V into 1 kΩ / ±1 V into 50 Ω |
| DIMENSIONS: |
front panel 12 HP (60.6 mm) x 3U (128,5 mm), 7″ (175 mm) deep |
Ordering
| Part No. |
Description |
| PA-01GX |
PA-01GX Preamplifier Module with Summing/Subtract Function |
