INT-20-USB - Interface for Data Acquisition

INT-20-USB - Interface for Data Acquisition - Image 2

INT-20-USB - Interface for Data Acquisition - Image 3

INT-20-USB – Interface for Data Acquisition

Add to Wishlist Remove from Wishlist

USB Data Acquisition Interface

High quality interface for use with open source software
Control amplifiers and other devices like pumps or light sources
Integrate with Python, MatLab or LabView
Works with free software (e.g. WinEDR, WinWCP, WinFluor)

Categories: Data Acquisition, Hardware

Technical Data

ANALOG INPUT	Number of channels in NRSE Mode: 16 Input resistance: 1MOhm Max. Input range: bipolar ±10V, unipolar 0..10V Input coupling: DC
ANALOG OUTPUT	Number of channels: 2 Voltage range: ±10V Output coupling: DCTransfer characteristics depend on the type of board that is used. Please read the appropriate user manual from National Instruments.
DIGITAL I/O	Number of channels: 8 Compatibility: TTL/CMOS
POWER INPUT	External Power Input (for valve control): 6 V … 24 V (depending on valves)
POWER OUTPUT	Maximum voltage: 11.5V (with 12V input voltage) Maximum current (per channel, only one channel active): 500mA
DIMENSIONS	19″ rackmount cabinet, 19″ (483 mm), 10″ (250 mm), 3.5″ (88 mm)

Ordering

Part no.	Description
INT-20X	Breakout box for data acquisition boards of the E-series, B-series or M-series from National instruments. Valve manifolds for solution exchange (e.g. CW-VM-8PG) can be connected directly to the INT-20X.
INT-20X-USB	USB 2.0 version of the INT-20X with built-in interface (USB-6221)
INT-20X-USB-1608	USB 2.0 version of the INT-20X with built-in interface (M&Q USB1608GX-2AO)
CW-SH6868	68-pole SCSI cable to connecte the INT-20X breakout box to a data acquisition board from National instruments.

Downloads

Manuals

INT-20X-USB manual

ABOUT

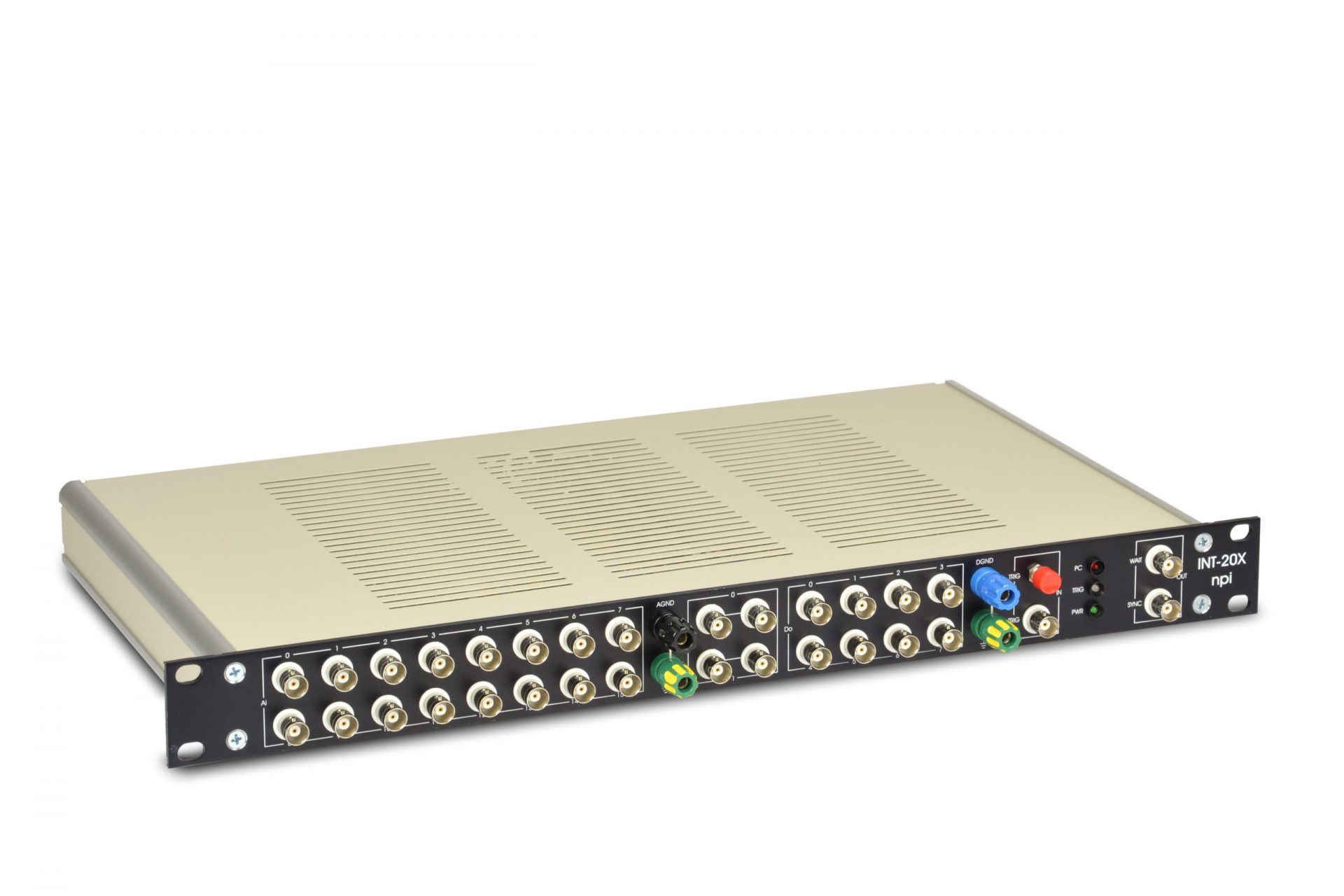

The INT-20-USB is a breakout box with a built-in USB-6341-OEM data acquisition board from National Instruments.

The system has 16 analog input channels, 2 analog output channels to generate analog signals and a digital port with 8 output channels. Usually this breakout box is used with self developed programs or free software, e.g. WinEDR, WinWCP, WinFluor

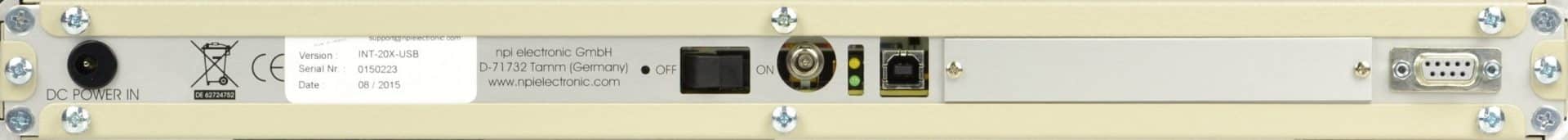

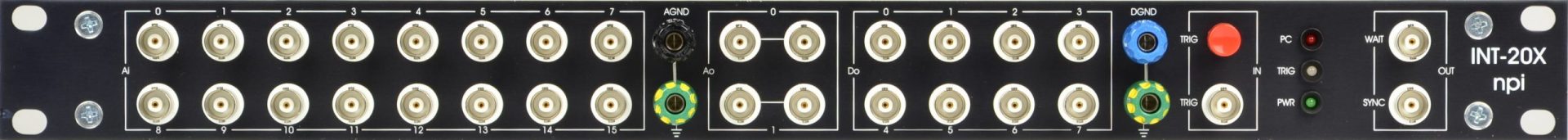

All analog in- and outputs and the 8 digital lines are BNC connectors. The INT-20-USB can be triggered manually using a push button or from an external devices via TTL pulses connected to the trigger in BNC connector.
The optional digital POWER OUTPUT port with 8 lines can be used, e.g. to control magnetic valves of perfusion systems directly.

A breakout box is also available as module for the EPMS-07 system.

Technical Data

Technical Data

ANALOG INPUT	Number of channels in NRSE Mode: 16 Input resistance: 1MOhm Max. Input range: bipolar ±10V, unipolar 0..10V Input coupling: DC
ANALOG OUTPUT	Number of channels: 2 Voltage range: ±10V Output coupling: DCTransfer characteristics depend on the type of board that is used. Please read the appropriate user manual from National Instruments.
DIGITAL I/O	Number of channels: 8 Compatibility: TTL/CMOS
POWER INPUT	External Power Input (for valve control): 6 V … 24 V (depending on valves)
POWER OUTPUT	Maximum voltage: 11.5V (with 12V input voltage) Maximum current (per channel, only one channel active): 500mA
DIMENSIONS	19″ rackmount cabinet, 19″ (483 mm), 10″ (250 mm), 3.5″ (88 mm)

Ordering

Ordering

Part no.	Description
INT-20X	Breakout box for data acquisition boards of the E-series, B-series or M-series from National instruments. Valve manifolds for solution exchange (e.g. CW-VM-8PG) can be connected directly to the INT-20X.
INT-20X-USB	USB 2.0 version of the INT-20X with built-in interface (USB-6221)
INT-20X-USB-1608	USB 2.0 version of the INT-20X with built-in interface (M&Q USB1608GX-2AO)
CW-SH6868	68-pole SCSI cable to connecte the INT-20X breakout box to a data acquisition board from National instruments.
