EPMS-07 housing

Categories: ,

EPMS-07

EPMS-07:

  • The EPMS-07 is a modular system for measuring and/or processing of bioelectrical signals in electrophysiology and the application of substances in pharmacology.

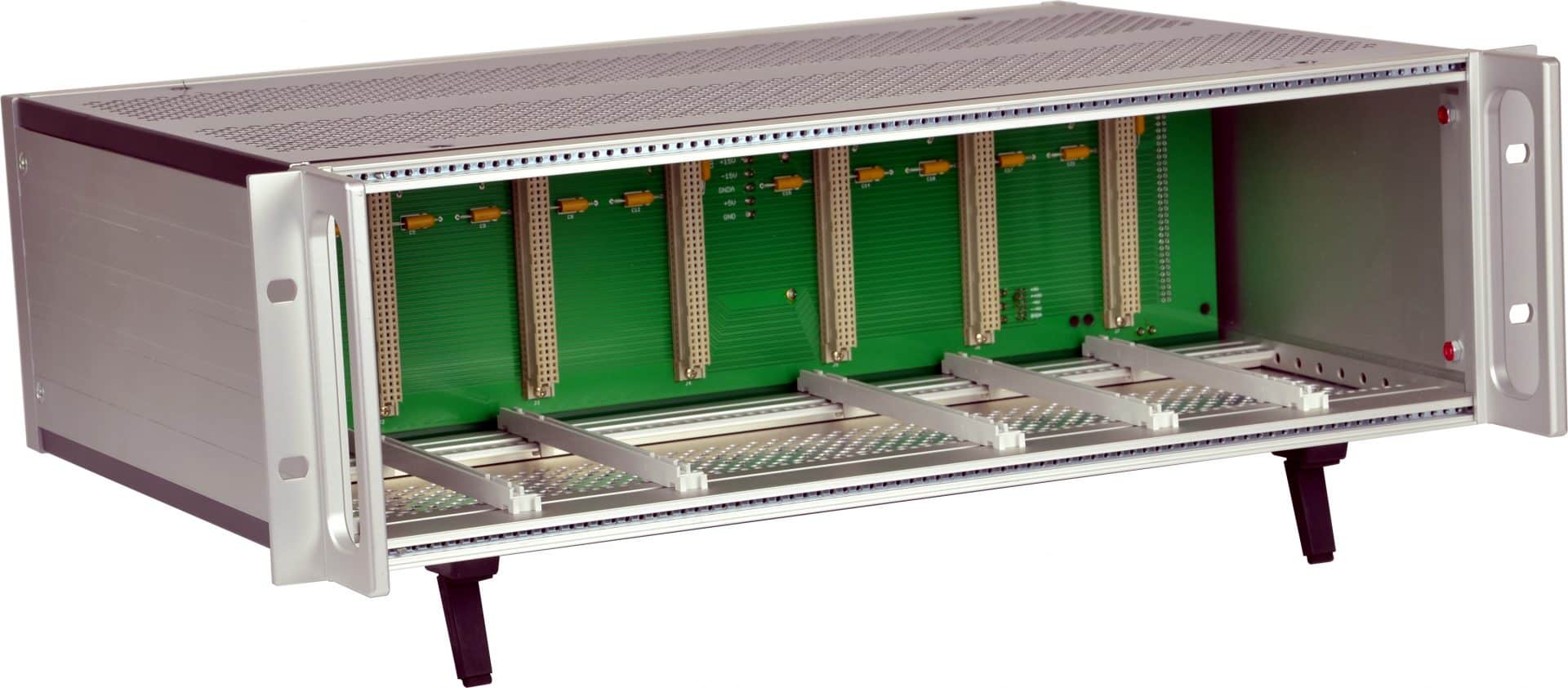

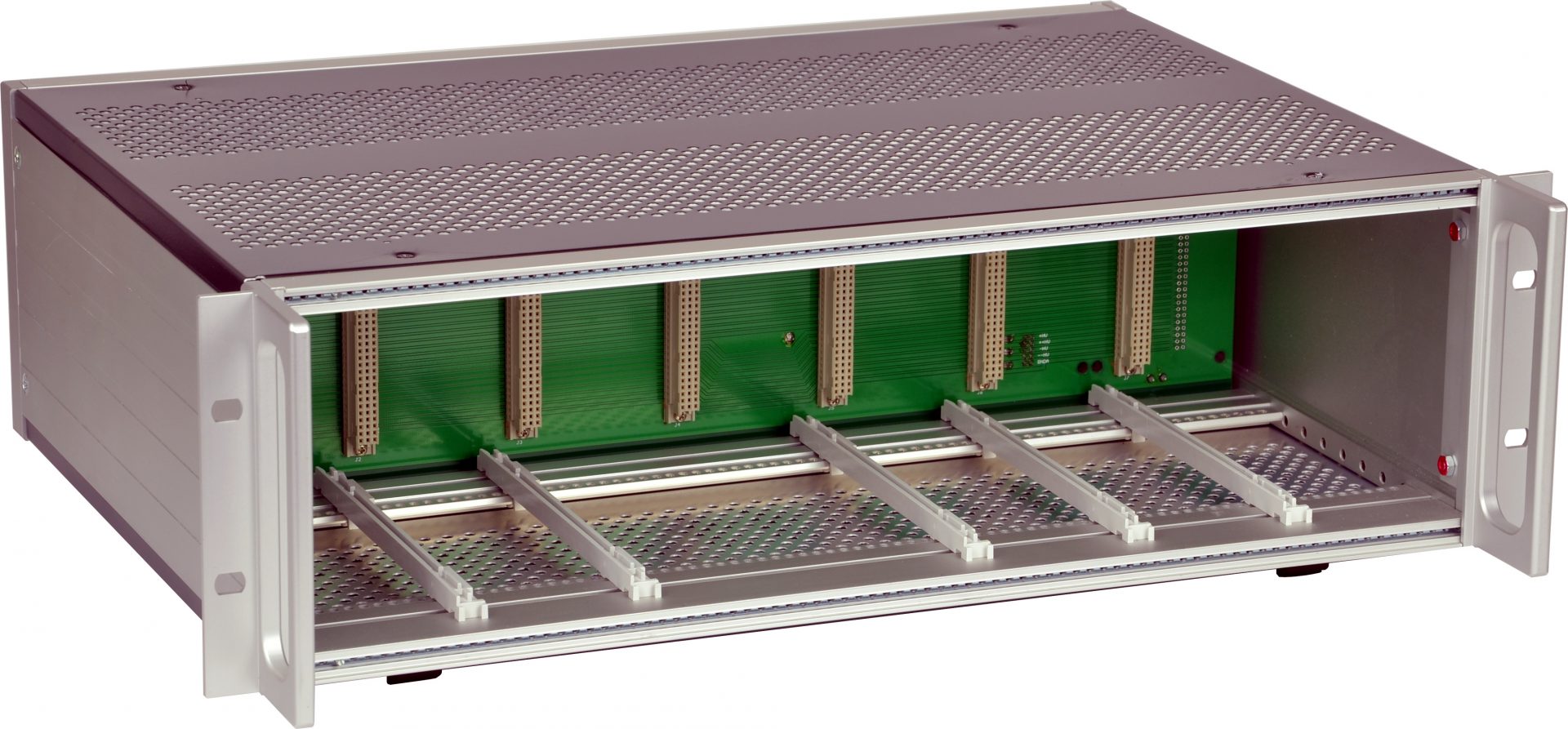

  • The system is housed in a 19″ rackmount cabinet (3U) containing a power supply and has room for up to 7 plug-in units depending on the width of a module.
  • Modules can have a width of 1, 1.5, 2 or 3. The width of the modules in detail is given in the “Options” field for each module. The sum for one 19″ cabinet must not exceed seven.
  • The plug-in units are connected to mains by a bus at the rear panel.

EPMS-H-07:

  • In addition to the standard power supply of the EPMS-07, the EPMS-H-07 has a built-in high voltage power supply. This is necessary for all MVCS / MVCC modules, the HVA-100, HV-TR150 and HVC-03M modules. The output voltage depends on the modules in use.

 EPMS-E-07:

  • Is used with an external power supply (PWR-03D, to be ordered separately).

EPMS-03

  • The EPMS-03 is a modular system for measuring and/or processing of bioelectrical signals in electrophysiology and the application of substances in pharmacology.

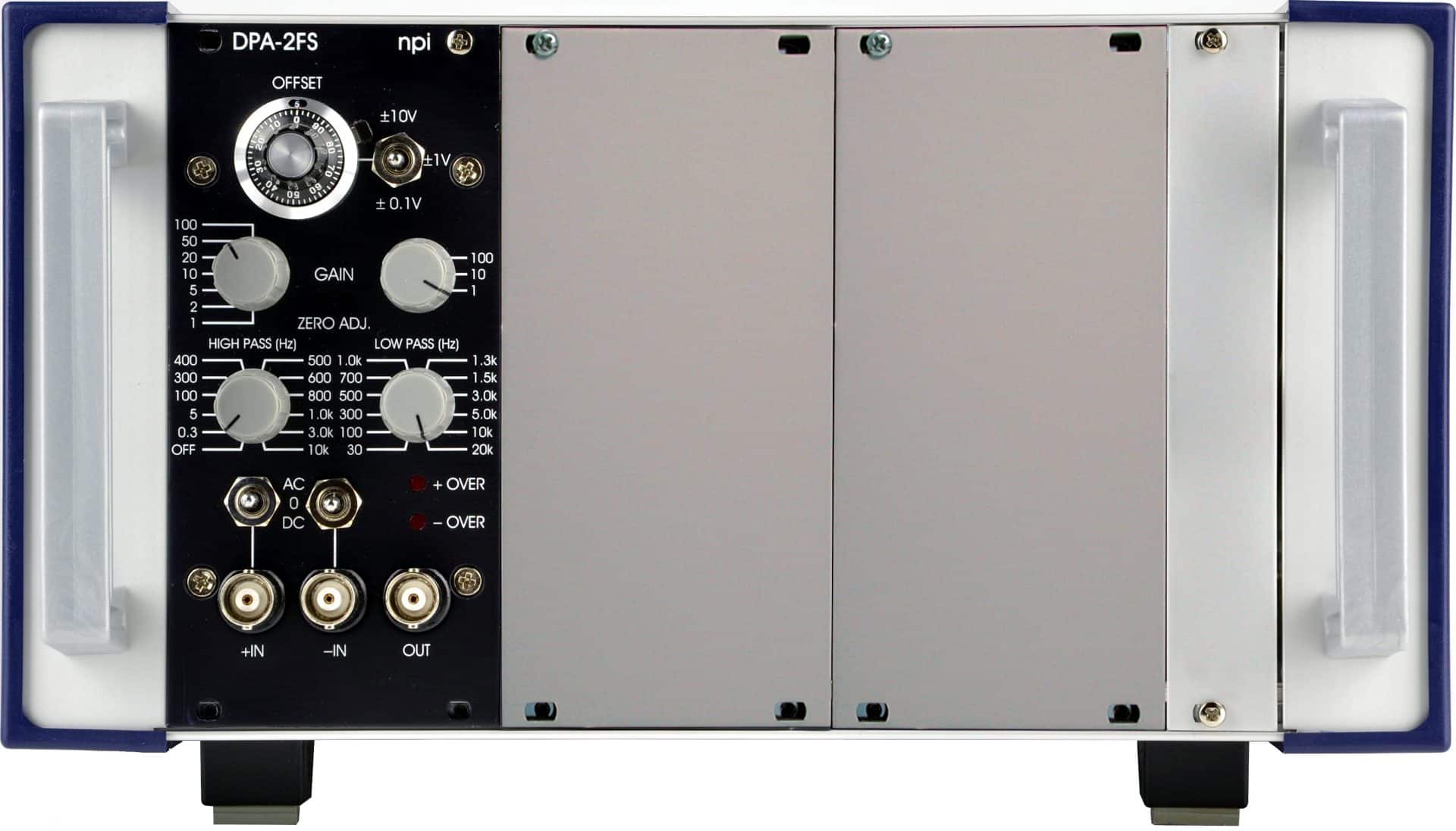

  • The system is housed in a housing containing a power supply and has room for up to 3 plug-in units depending on the width of a module.
  • The plug-in units are connected to mains by a bus at the rear panel.











PWR-03D

Power supply for EMPS-E-07 or EXT-16DX systems

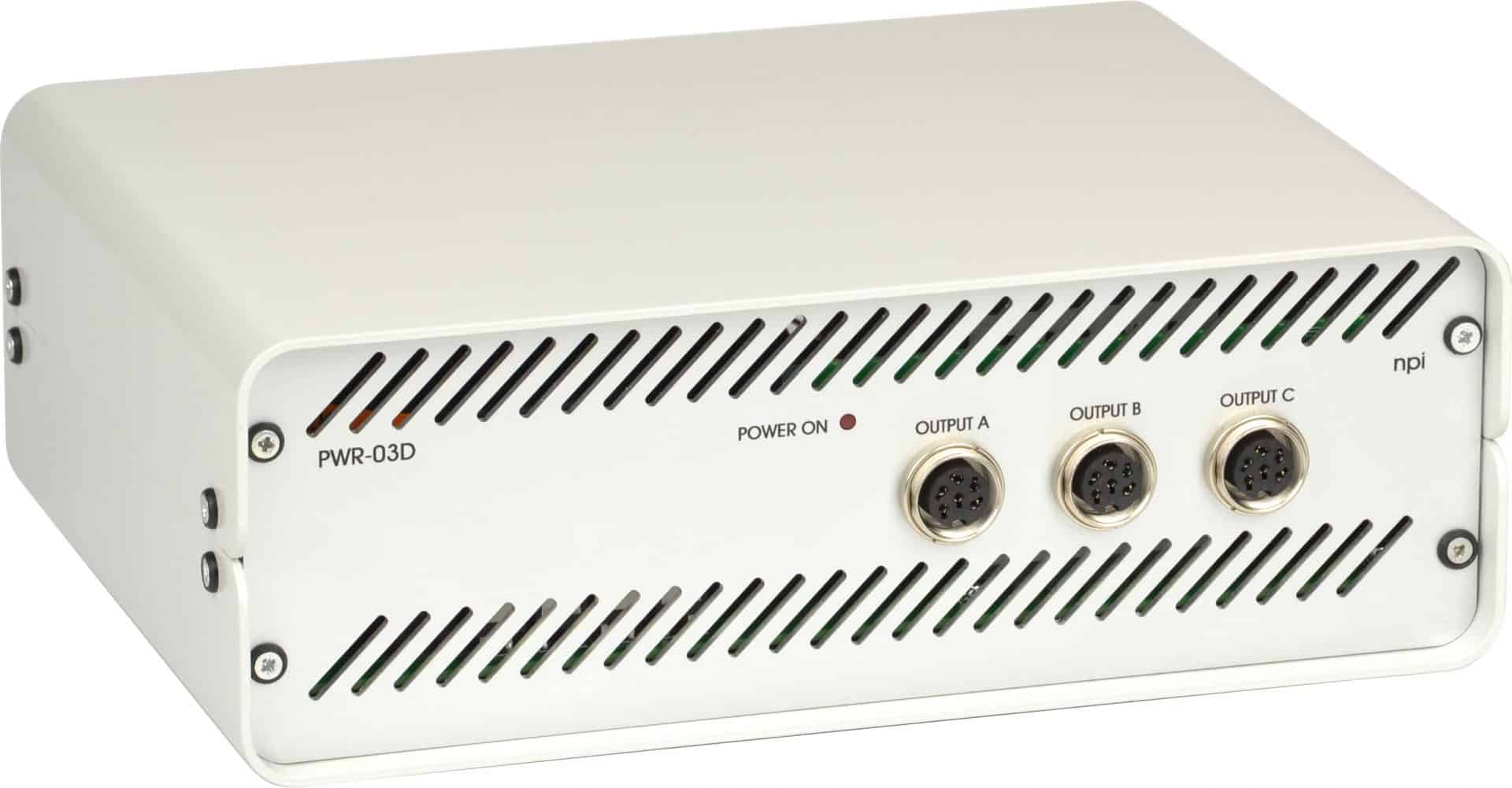

The external power supply PWR-03D is capable of driving up to three EPMS-E housings or one
EXT-16DX amplifier with one R/I-T1DX. Each housing is connected by a 6-pole cable from one
of three connectors on the front panel of the PWR-03D to the rear panel of the respective
EPMS-E or EXT-16DX / R/I-T1DX housing.











Technical Data

DIMENSIONS 19” rackmount cabinet, for up to 7 plug-in units
Dimensions: 133.4 mm (3U) high (1U=1 3/4” = 44.45 mm), 302 mm deep
EPMS-07 Power supply: 115/230 Volts AC, 60/50 Hz, fuse 2/1 A slow, 45-60 W (depending on the modules plugged in)
EPMS-E-07 External power supply (for EPMS-E):      115/230 Volts AC, 60/50 Hz, fuse 1.6/0.8 A, slow
Dimensions of External power supply:     (W x D x H) 225 mm x 210 mm x 85 mm
EPMS-03 Desktop cabinet, for up to 3 plug-in units
Power supply: 115/230 Volts AC, 60/50 Hz, fuse 0.8 A / 0.4 A slow
Maximum current supply: 500 mA
Dimensions: 3U high (1U=1 3/4” = 44.45 mm), 254 mm deep, 265 mm wide

Ordering

Part No. Description
EPMS-07 With standard low-voltage power supply <br>suitable for all modules except MVCS, MVCC, HVC-03M and HVA-100 modules.
EPMS-H-07 With low- and high-voltage power supply <br>required for MVCS, MVCC, HVC-03M and HVA-100 modules.
EPMS-E-07 With external low-voltage low-noise power supply (PWR-03D, to be ordered separately).
EPMS-03 1/2 19″ cabinet with low-voltage power supply for up to 3 units.
PWR-03D Low-voltage low-noise power supply for up to 3 EPMS-E-07 housings.
