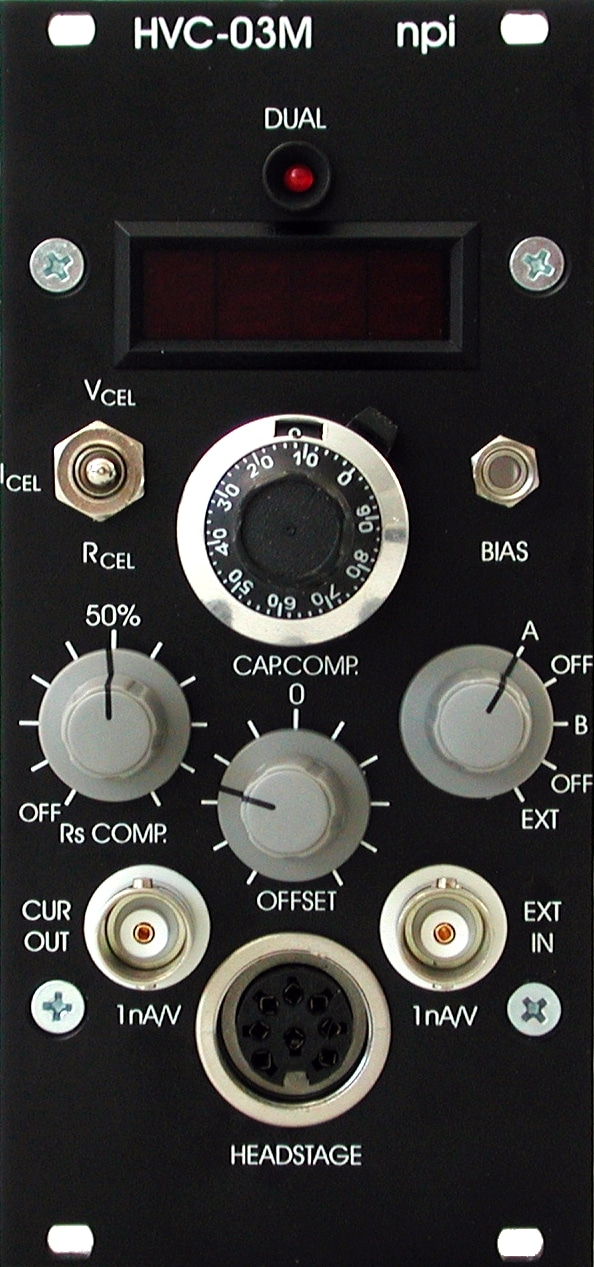

HVC-03M – High Voltage Amplifier

Add to Wishlist Remove from Wishlist

High Voltage Clamp

Categories: ,

Features

  • designed for current injection into cells
  • extension for one or two SEC-03M modules
  • two-electrode voltage clamp using high voltages
  • OFFSET cancellation
  • capacity compensation of the electrode capacity
  • an electrode resistance measurement
  • correction for BIAS current.
  • can also be operated as a module for iontophoresis (using an external control signal).

Please contact npi electronic for details.

Ordering

Part no. Description
HVC-03M High Voltage Clamp Module for two-electrode voltage clamp operation in conjunction with SEC-03M amplifier(s) or for iontophoresis, width = 1
HVC-MOD Cell model (passive)

Technical Data

CURRENT RANGE ±1 µA
OFFSET compensation range ±200 mV
EXT IN (for use as iontophoresis module)
100 nA / V
DIMENSIONS front panel 12 HP (60.6 mm) x 3U (128,5 mm), 7″ (175 mm) deep
HEADSTAGE SIZE 70x23x28 mm
Holding bar
length: 150 mm; diameter: 8 mm.

Downloads

Manual HVC-03M manual
References HVC-03M Brochure
