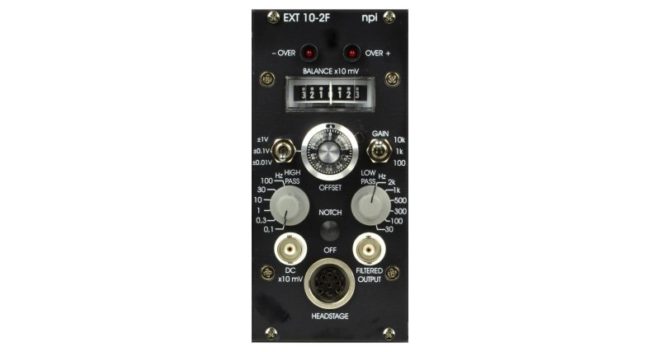

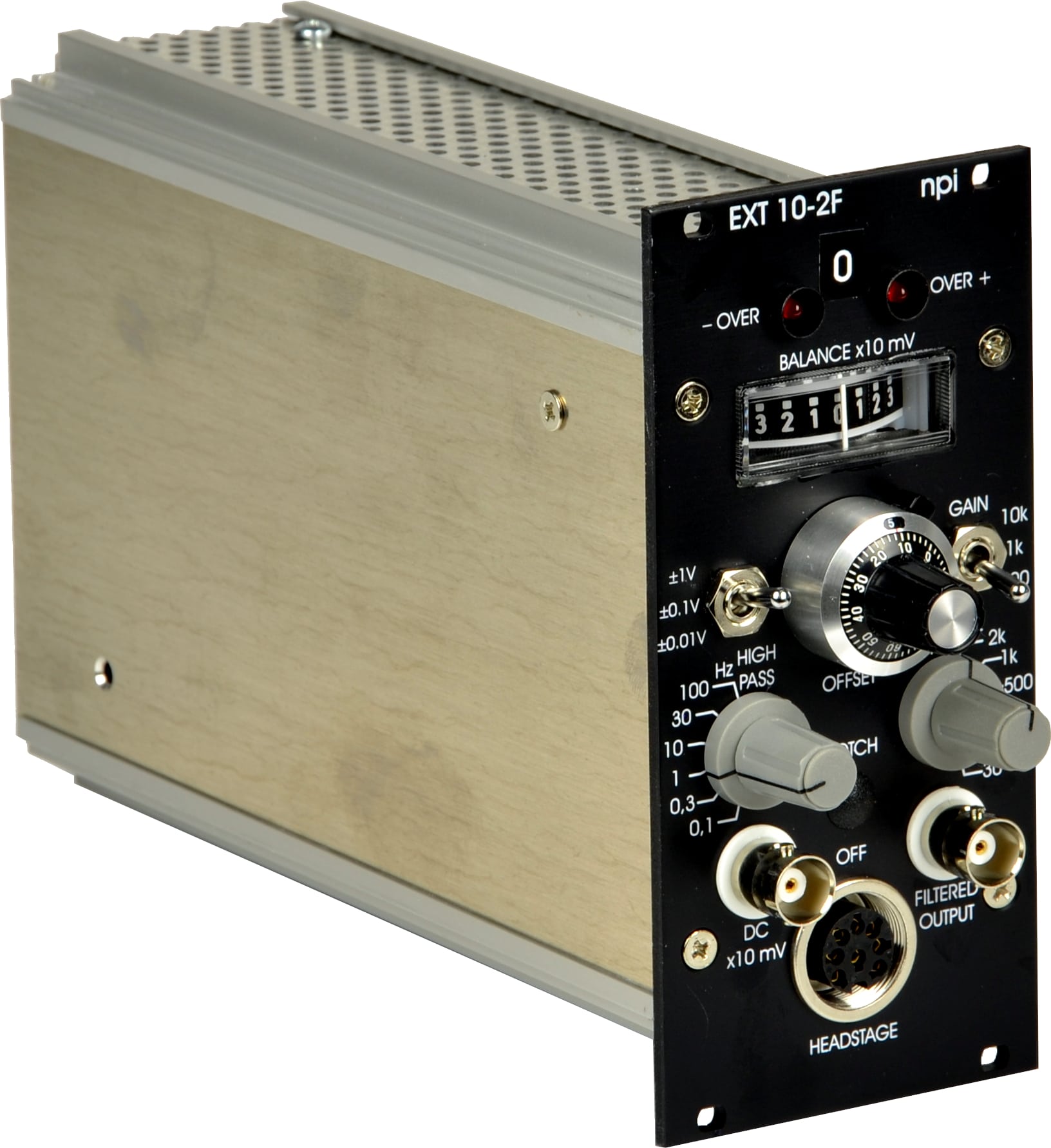

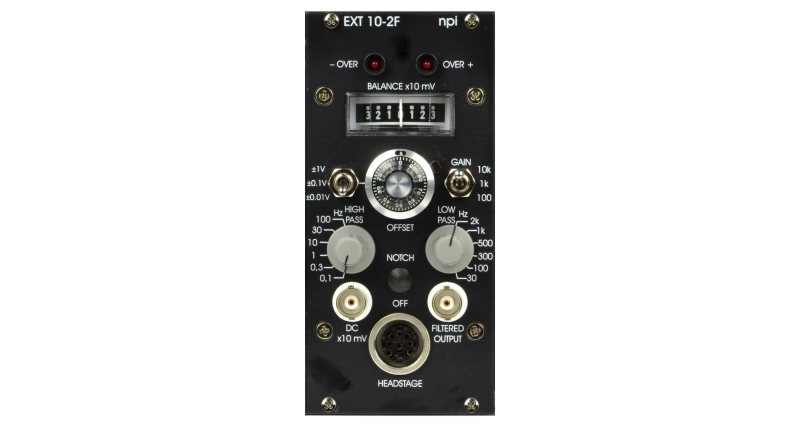

EXT-10-2F – Extracellular Amplifier

Add to Wishlist Remove from Wishlist

EXT-10C Extracellular amplifier

  • directly filter your desired signal (high and low pass filter built-in)
  • easy compensation set of DC offsets
  • comes with pre-amplifying headstage
  • also available as stand-alone device
  • capacitance compensation is built into the EXT-10C
Categories: ,

Features

  • Differential input, high impedance
  • Small headstage with holding bar or mounting plate
  • Ten-turn OFFSET control (ranges: ±0.01V, ±0.1V, ±1V)
  • Output: DC x10mV or FILTERED OUTPUT
  • GAIN: DC x10mV or FILTERED x100, x1k, x10k
  • HIGHPASS filter: 0.1, 0.3, 1, 10, 30, 100 Hz
  • LOWPASS filter: 30, 100, 300, 500, 1k, 2k Hz
  • NOTCH filter (optional) 50 or 60 Hz, 4 pole
  • OVER LEDs (activating at 10% below maximum output)
  • Analog BALANCE monitor for optimal OFFSET control

Also available as stand-alone device in small desktop housing.

Ordering

Part no. Description
EXT-10C Amplifier module with capacity compensation, with headstage, width = 1
EXT-10-2F Amplifier module with with filter and gain; with headstage, width = 1
EXT-N 50/60 Hz notch filter
EXT-EH Electrode hoder, BNC

Technical Data

DIFFERENTIAL INPUT CMR >70 dB
INPUT RESISTANCE >1012 Ω, range ±1 V
OUTPUT x10 mV DC impedance 250 Ω
GAIN 100, 1k, 10k; selected by switch
FILTERED OUTPUT impedance 250 Ω
LOW PASS FILTER 30, 100, 300, 500, 1k, 2k Hz.
HIGH PASS FILTER DC, 0.1, 0.3, 1, 10, 30 Hz
NOTCH FILTER (optional) 50 Hz or 60 Hz, 4-pole
OFFSET COMPENSATION ±1 V switch position: ±1 V, 10 turn potentiometer
±10 V switch position: ±10 V, 10 turn potentiometer
ANALOG BALANCE MONITOR ca. ±30 mV
DIMENSIONS 12 HP (606 mm) x 3 U (128.5 mm), 7″ (175 mm) deep
HEADSTAGE SIZE 70x26x26 mm
Holding bar
length: 150 mm; diameter: 8 mm.

Downloads

Manual EXT10-2F manual
Brochures EXT-Series

Features

Features

  • Differential input, high impedance
  • Small headstage with holding bar or mounting plate
  • Ten-turn OFFSET control (ranges: ±0.01V, ±0.1V, ±1V)
  • Output: DC x10mV or FILTERED OUTPUT
  • GAIN: DC x10mV or FILTERED x100, x1k, x10k
  • HIGHPASS filter: 0.1, 0.3, 1, 10, 30, 100 Hz
  • LOWPASS filter: 30, 100, 300, 500, 1k, 2k Hz
  • NOTCH filter (optional) 50 or 60 Hz, 4 pole
  • OVER LEDs (activating at 10% below maximum output)
  • Analog BALANCE monitor for optimal OFFSET control

Also available as stand-alone device in small desktop housing.

Ordering

Ordering

Part no. Description
EXT-10C Amplifier module with capacity compensation, with headstage, width = 1
EXT-10-2F Amplifier module with with filter and gain; with headstage, width = 1
EXT-N 50/60 Hz notch filter
EXT-EH Electrode hoder, BNC

Technical Data

Technical Data

DIFFERENTIAL INPUT CMR >70 dB
INPUT RESISTANCE >1012 Ω, range ±1 V
OUTPUT x10 mV DC impedance 250 Ω
GAIN 100, 1k, 10k; selected by switch
FILTERED OUTPUT impedance 250 Ω
LOW PASS FILTER 30, 100, 300, 500, 1k, 2k Hz.
HIGH PASS FILTER DC, 0.1, 0.3, 1, 10, 30 Hz
NOTCH FILTER (optional) 50 Hz or 60 Hz, 4-pole
OFFSET COMPENSATION ±1 V switch position: ±1 V, 10 turn potentiometer
±10 V switch position: ±10 V, 10 turn potentiometer
ANALOG BALANCE MONITOR ca. ±30 mV
DIMENSIONS 12 HP (606 mm) x 3 U (128.5 mm), 7″ (175 mm) deep
HEADSTAGE SIZE 70x26x26 mm
Holding bar
length: 150 mm; diameter: 8 mm.

Downloads

Downloads

Manual EXT10-2F manual
Brochures EXT-Series
