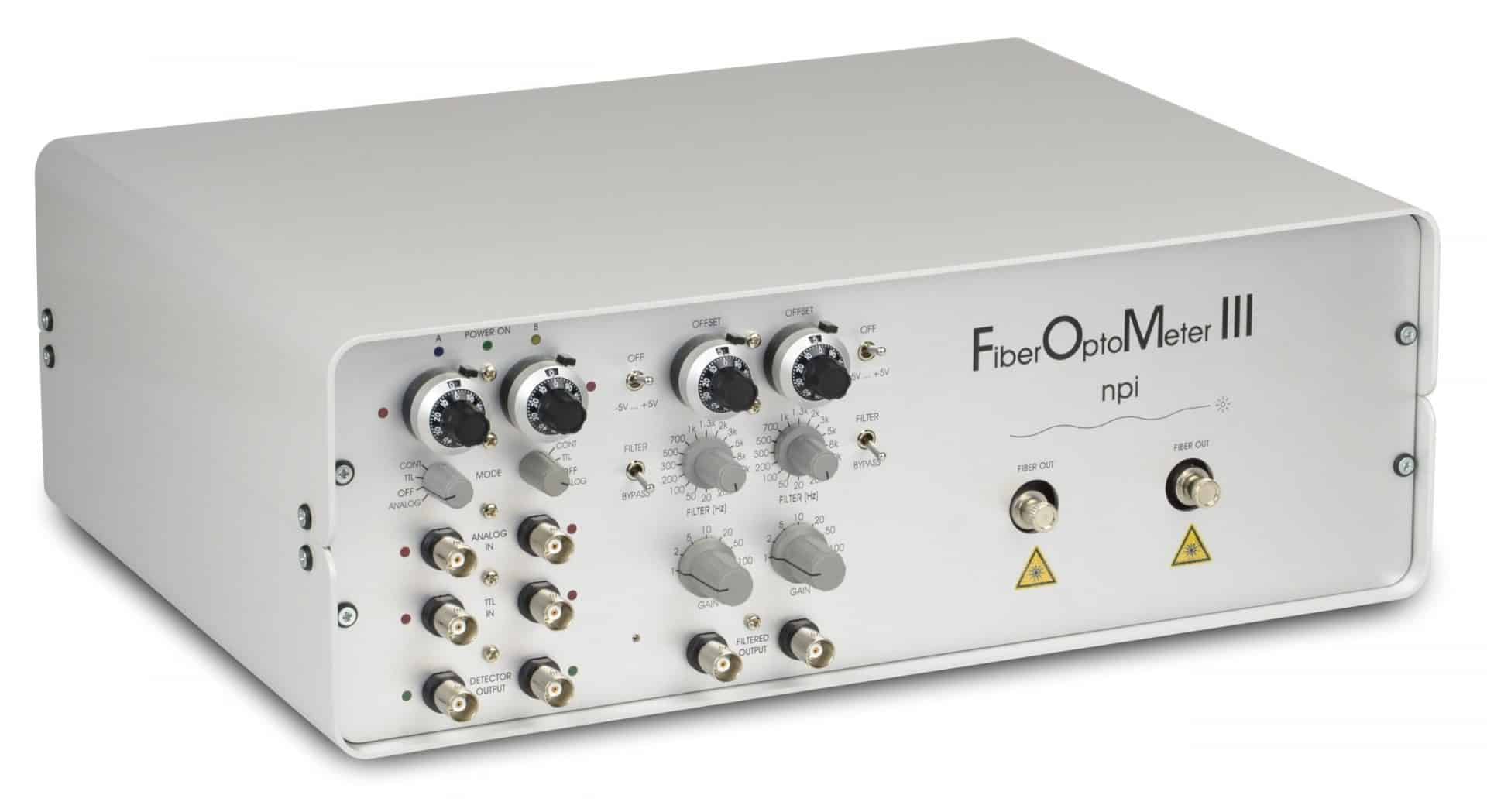

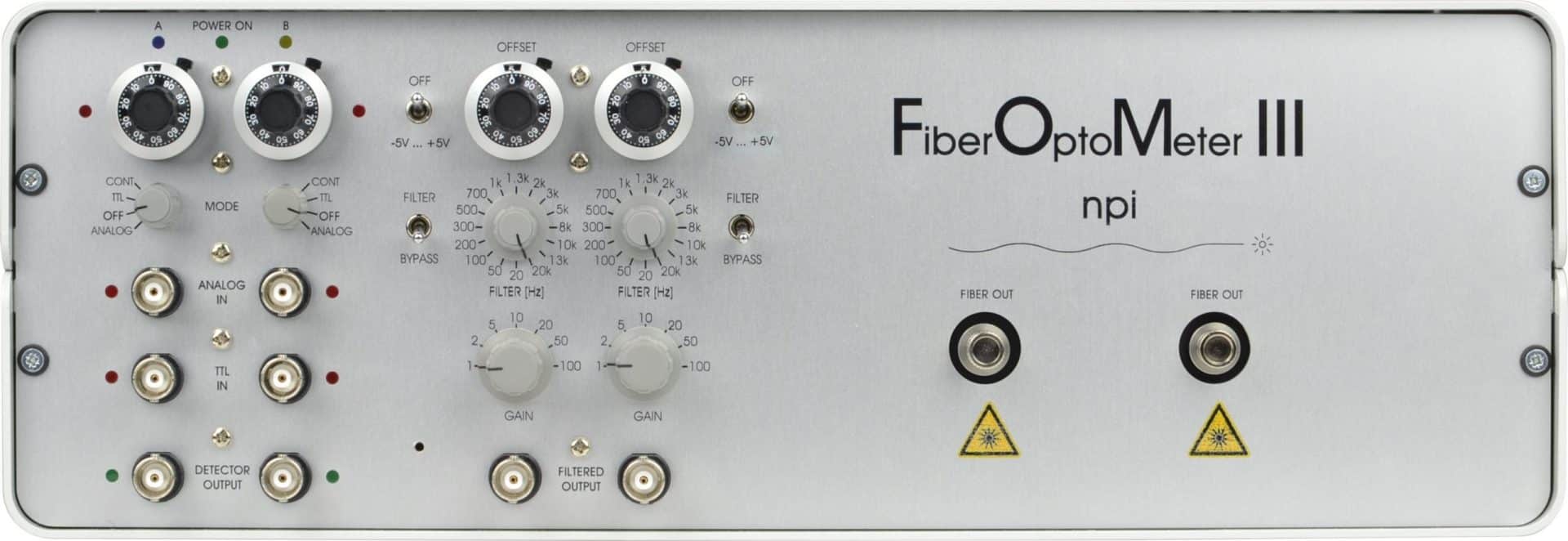

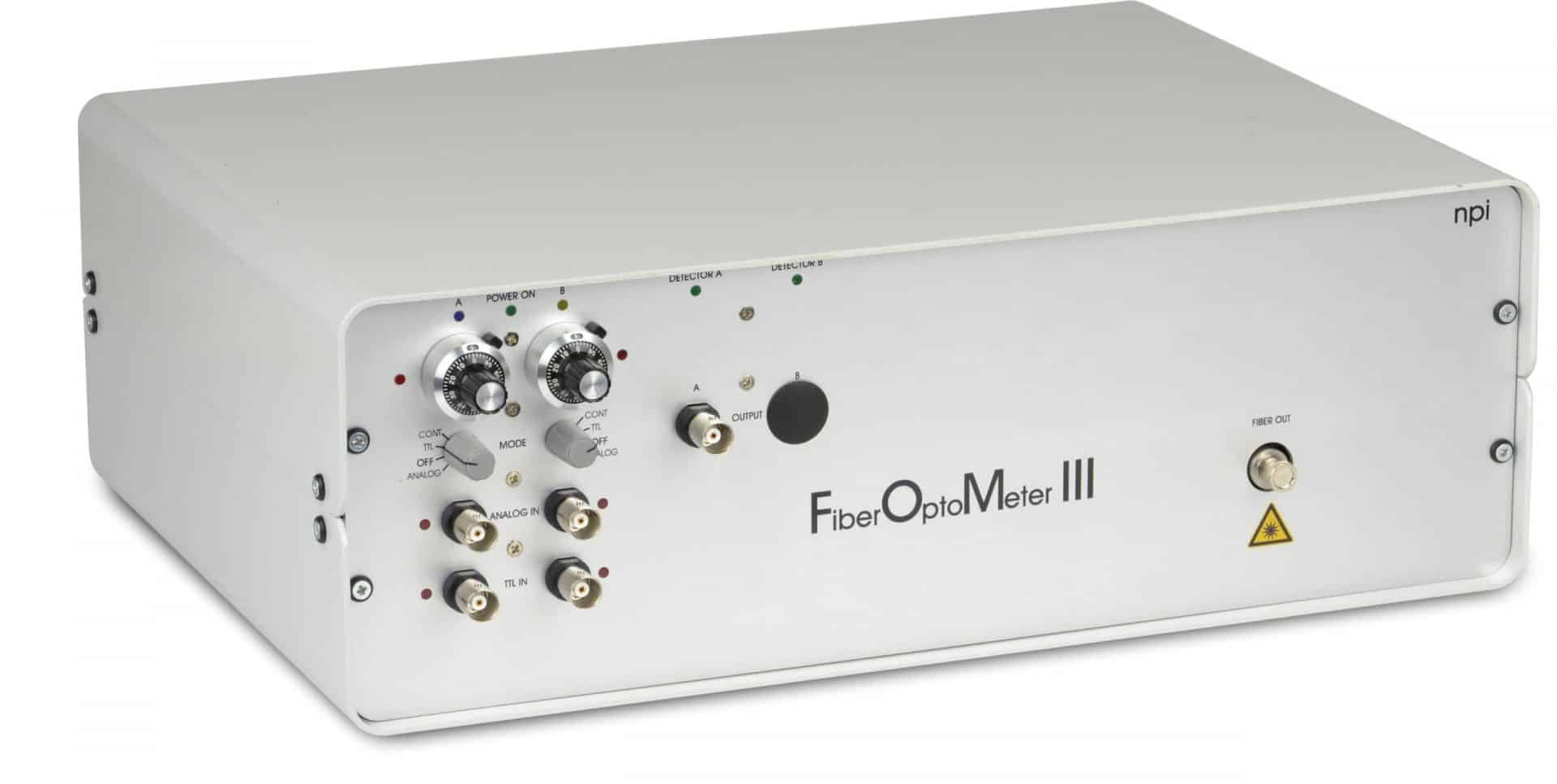

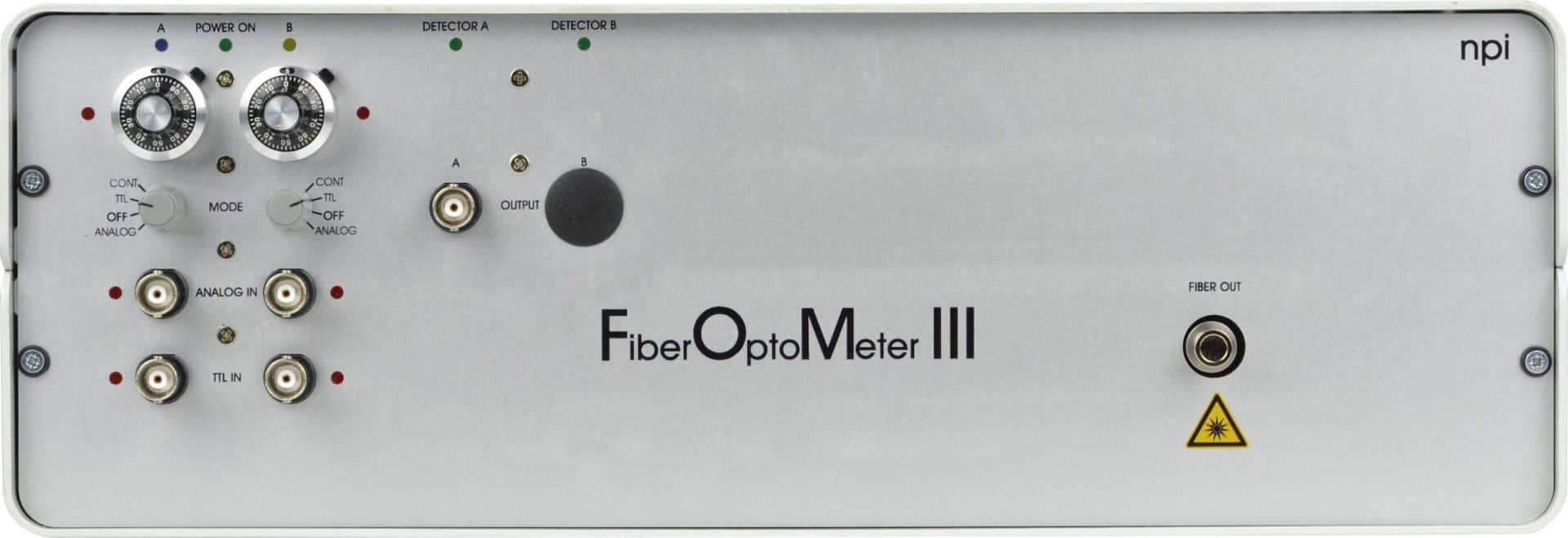

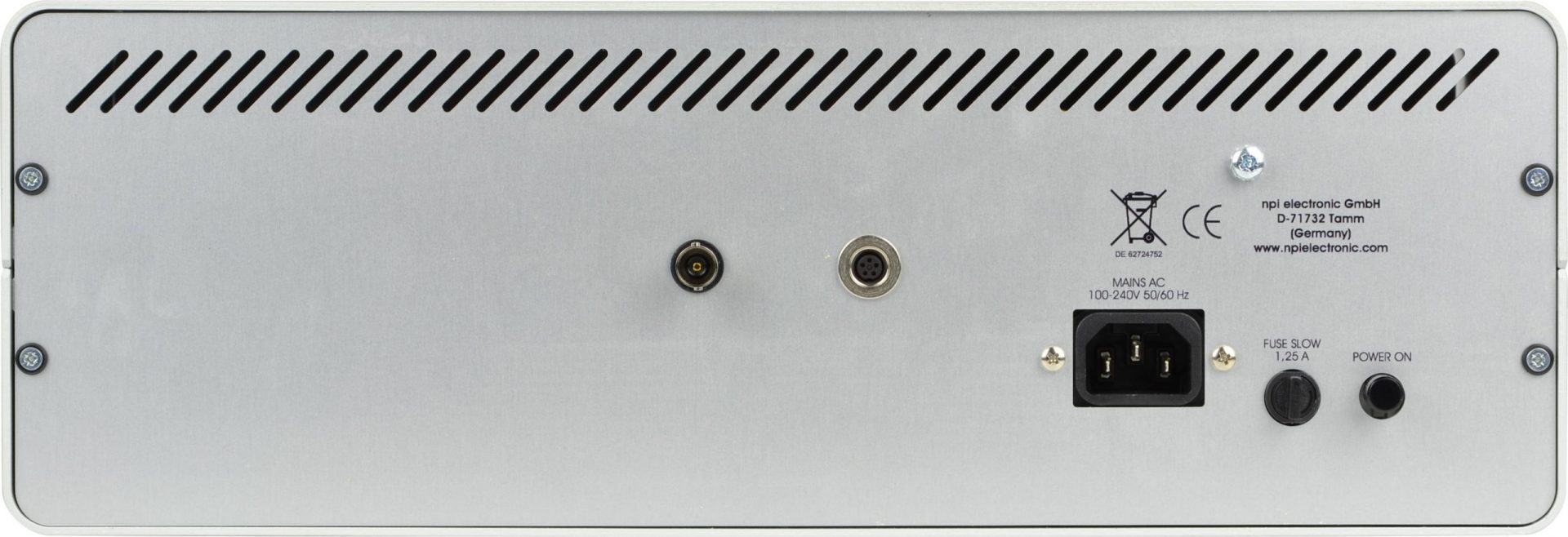

FiberOptoMeter III – Fiber Photometry System

Add to Wishlist Remove from Wishlist

FOM III – FiberOptoMeter

  • Fiber Photometry System
  • Plug & Play in vivo Calcium monitoring
  • Easy integration into existing electrophysiology setups
  • Filter sets will be customized to fit exactly your fluorophore
  • Optional analog signal processing with gain and filter will enhance signal-to-noise ratio significantly
  • Book a demo of the FiberOptoMeter III

Technical Data

Available central wavelengths (LED) 450 nm, 470 nm, 570 nm, 617 nm, 625 nm
Other wavelengths available. Please contact us.
Excitation band 450 – 490 nm (blue)
540 – 590 nm (orange)Other wavelengths available. Please contact us.
Max. light power at 200 µm fiber tip (determined with module) 110 mW/mm2 (blue)
65 mW/mm2 (orange)
Fiber interface SMA or FC/PC
Fluorescence detection band 500 – 540 nm (green)
Fluorescence signal output filter 340 Hz low-pass
Fluorescence signal output range 0 ~ -3 V (negative polarity)
Dimensions (W x D x H) 365 mm x 260 mm x 130 mm
Power consumption 20W

Ordering

We offer the FiberOptoMeter III in various different configurations:

  • 1 LED, 1 detector
  • 2 LED, 1 detector
  • 1 LED, 2 detectors
  • 2 LED, 2 detectors

We customize every FiberOptoMeter III to fit exactly to the fluorophors you are using. Since there is a large variety of filters, dichroics and LEDs available, please contact us for further information or pricing.

Downloads

Brochure FOM III Brochure
Manuals FOM-III manual



ABOUT

Fiber Photometry systems allow the user to investigate neural activity of a population of neurons in freely moving animals. This way it is possible to correlate neural data with behavioral patterns.

Features for FOM-III:

  • In-vivo Ca2+ fluorescence measurement through optical fiber
  • Improved design using detectors and analog data processing with superior capabilities
  • Analog output signal processing improves signal-to-noise ratio
  • Available with multiple fibers and various constellations of LEDs and filters

Technical Data

Technical Data

Available central wavelengths (LED) 450 nm, 470 nm, 570 nm, 617 nm, 625 nm
Other wavelengths available. Please contact us.
Excitation band 450 – 490 nm (blue)
540 – 590 nm (orange)Other wavelengths available. Please contact us.
Max. light power at 200 µm fiber tip (determined with module) 110 mW/mm2 (blue)
65 mW/mm2 (orange)
Fiber interface SMA or FC/PC
Fluorescence detection band 500 – 540 nm (green)
Fluorescence signal output filter 340 Hz low-pass
Fluorescence signal output range 0 ~ -3 V (negative polarity)
Dimensions (W x D x H) 365 mm x 260 mm x 130 mm
Power consumption 20W

Ordering

Ordering

We offer the FiberOptoMeter III in various different configurations:

  • 1 LED, 1 detector
  • 2 LED, 1 detector
  • 1 LED, 2 detectors
  • 2 LED, 2 detectors

We customize every FiberOptoMeter III to fit exactly to the fluorophors you are using. Since there is a large variety of filters, dichroics and LEDs available, please contact us for further information or pricing.

Downloads

Downloads

Brochure FOM III Brochure
Manuals FOM-III manual
