AUDIS-01D – Audio Monitor

Add to Wishlist Remove from Wishlist

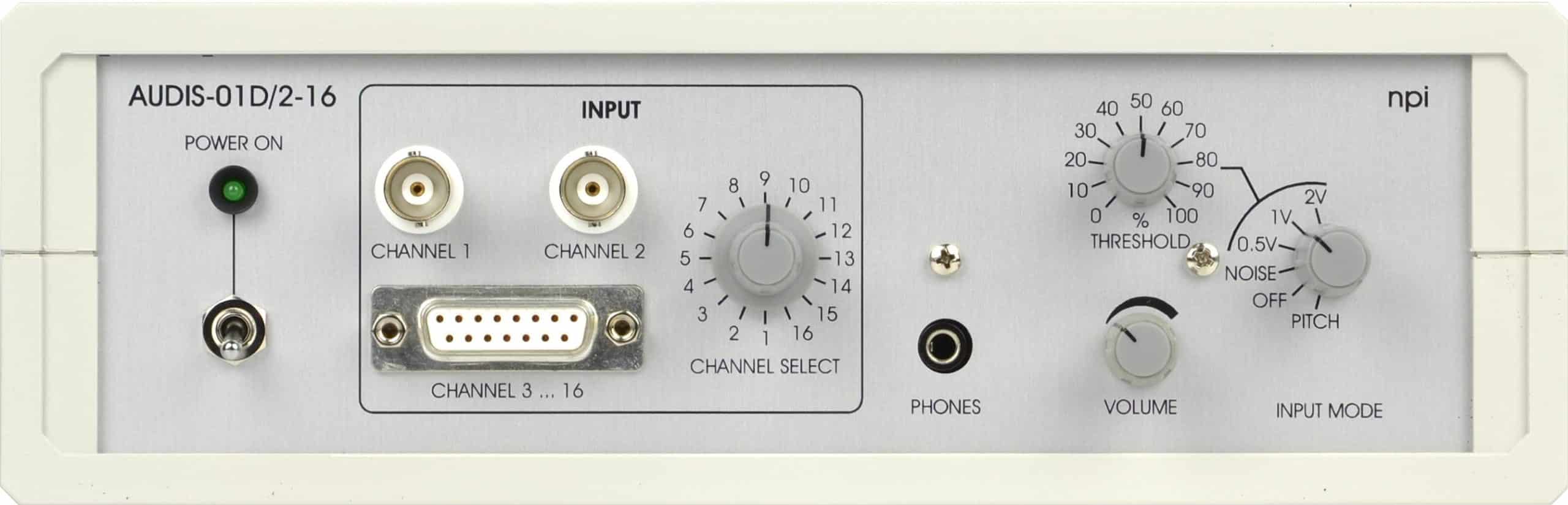

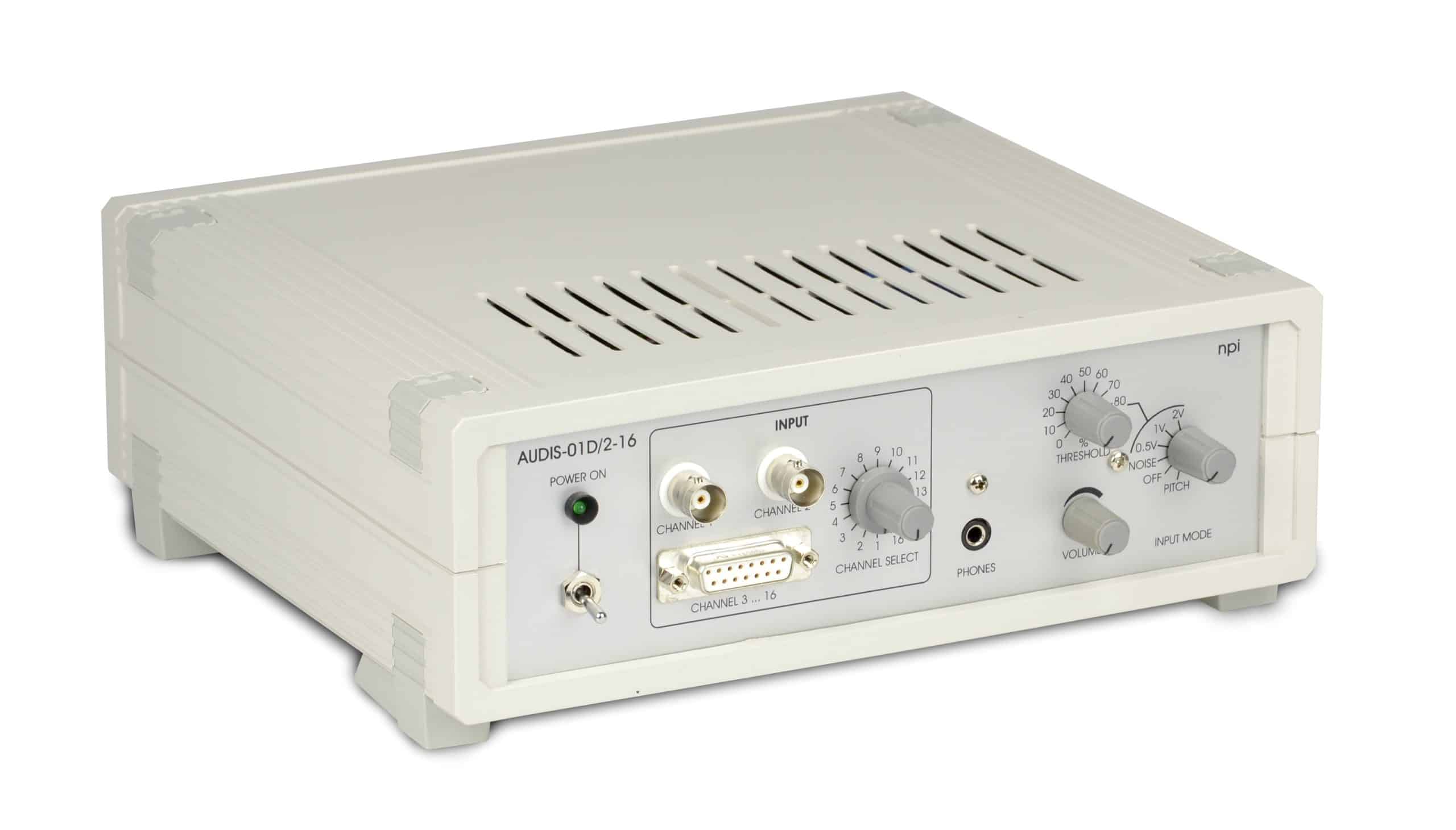

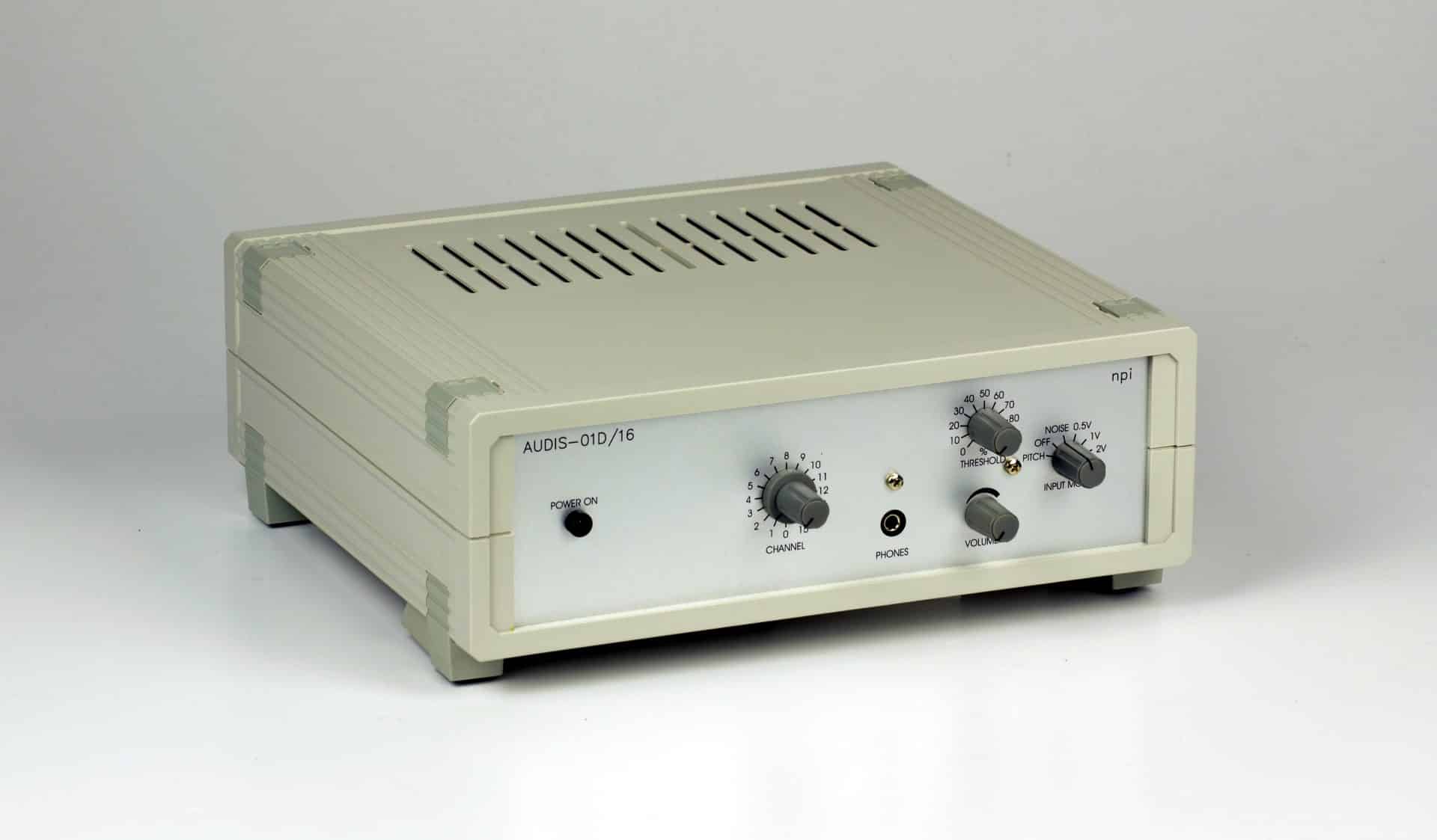

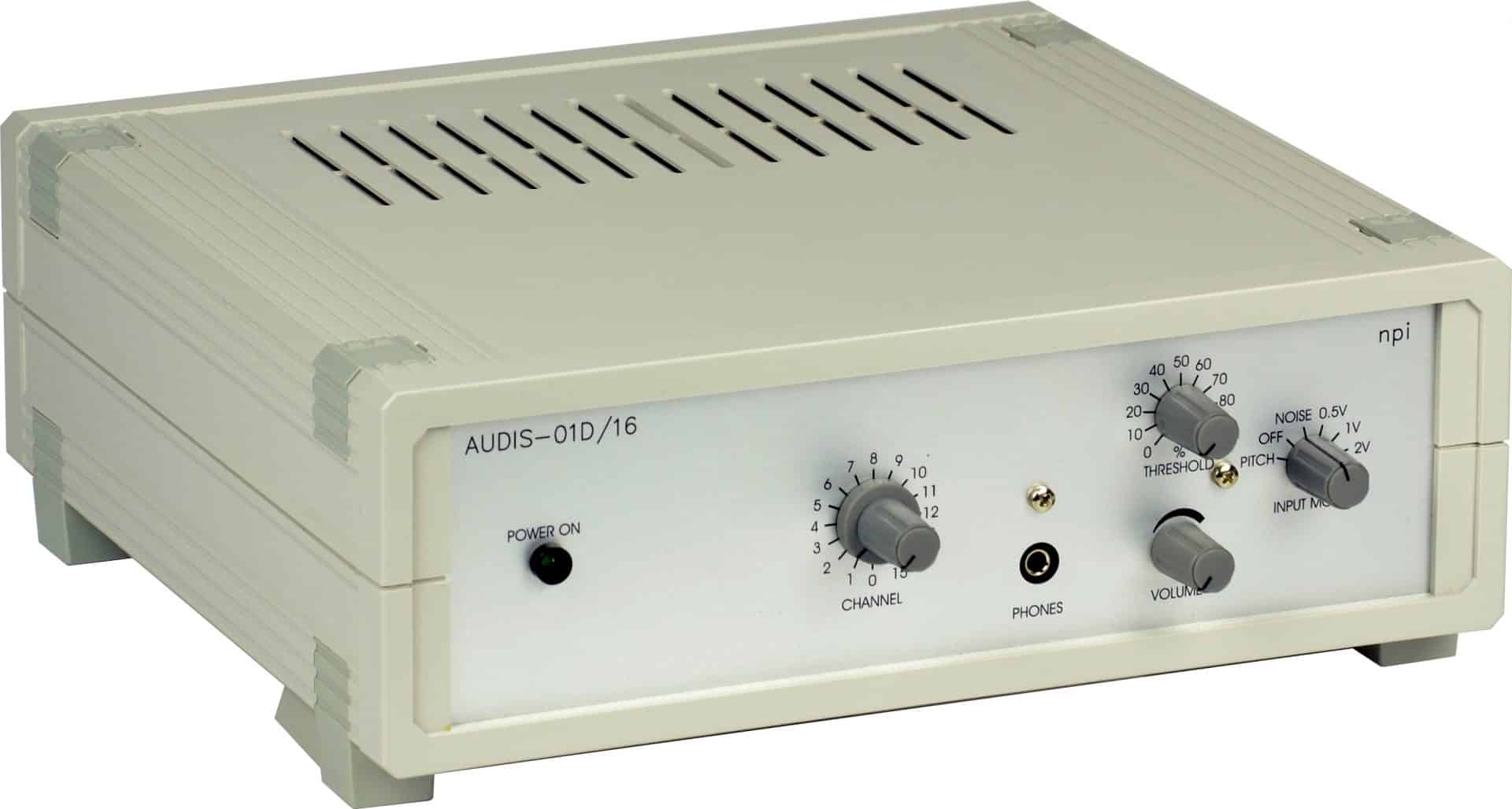

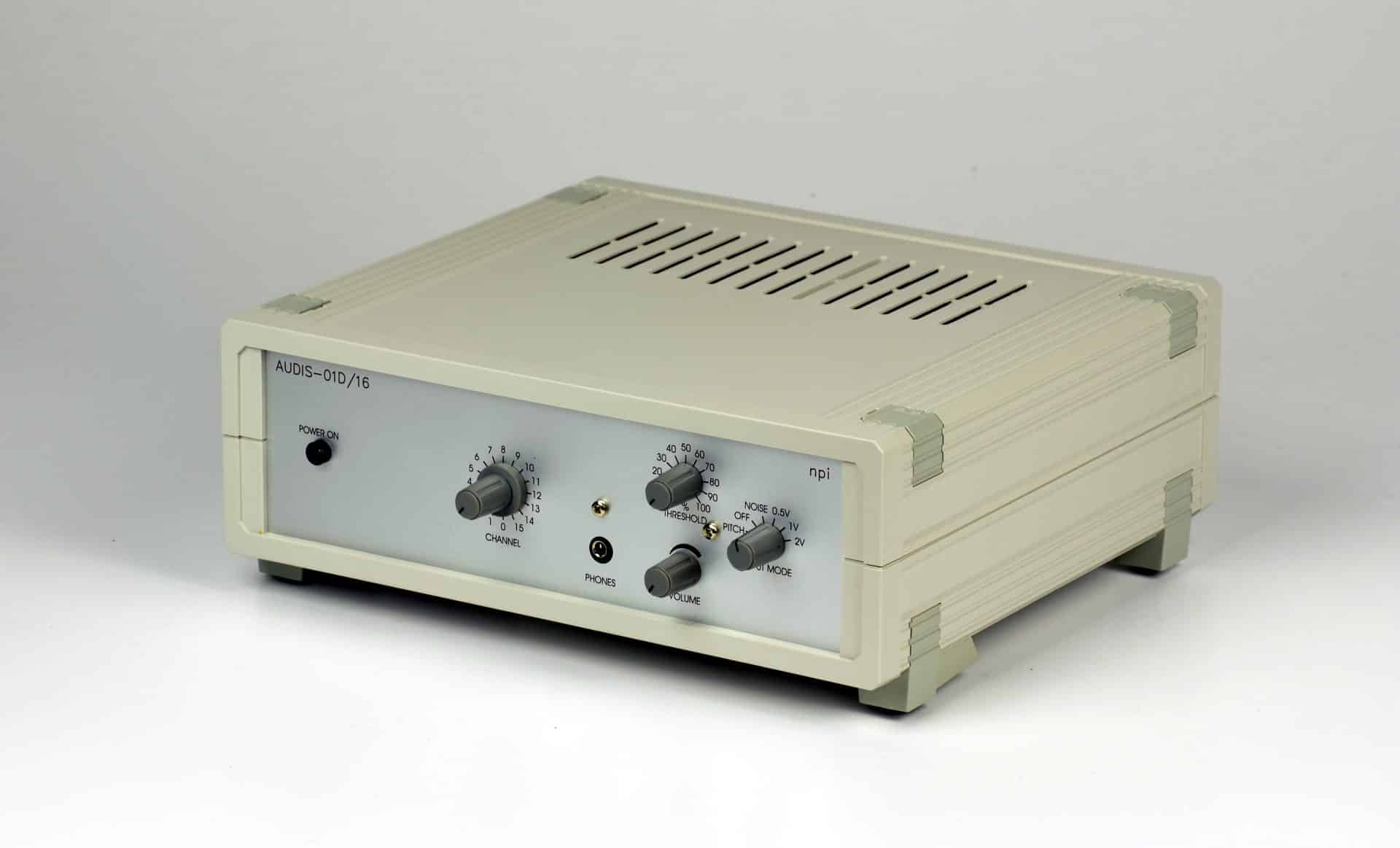

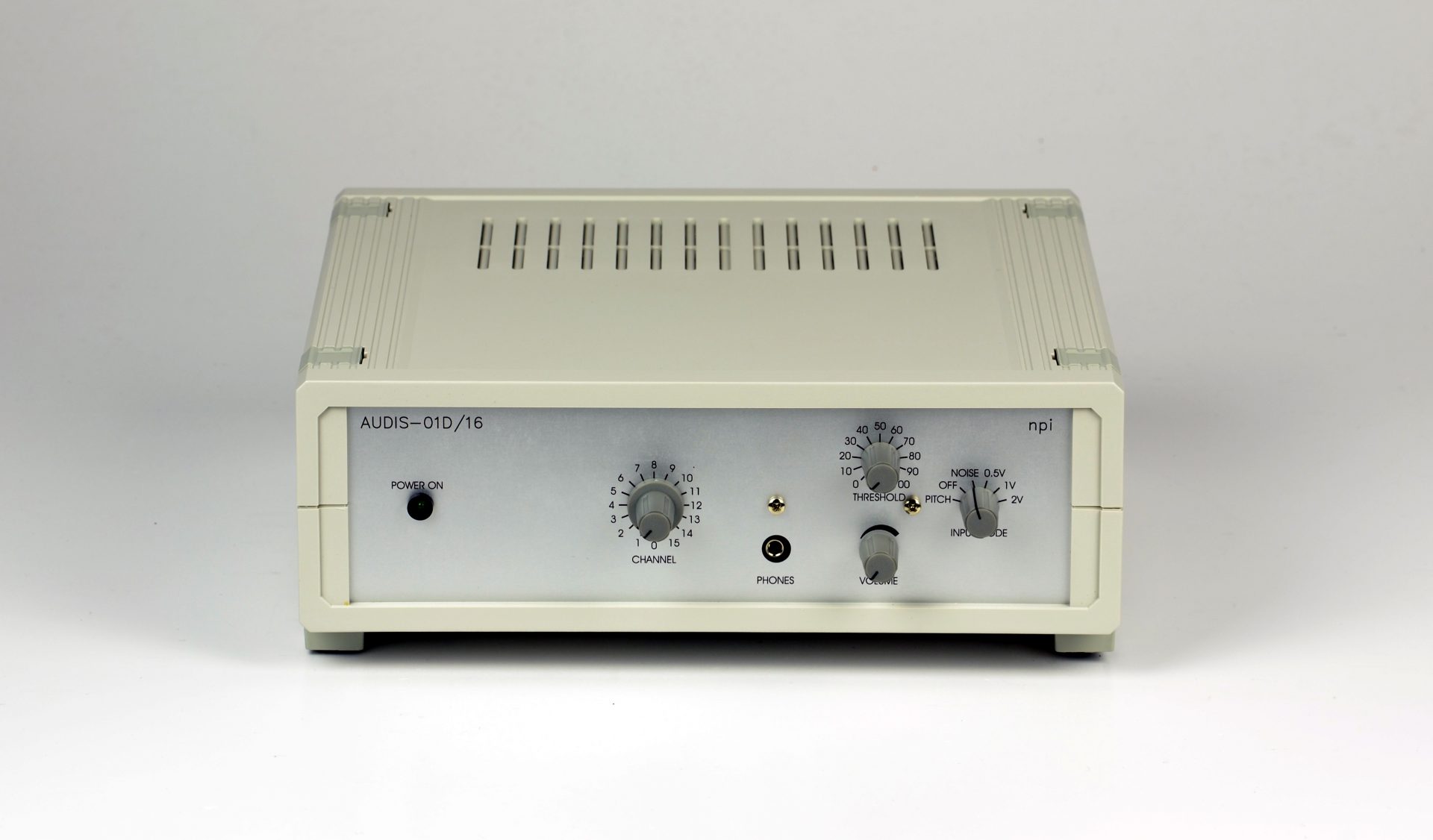

Desktop Audio Monitor

Features

Two operation modes
- PITCH mode: the input signal is converted into a tone
- NOISE mode: the input signal is highpass filtered to monitor the noise
THRESHOLD function sets the level for NOISE mode
THRESHOLD with 3 ranges (0.5V, 1V or 2V max.)
and fine tuning in % of max. value
Up to 16 input channels with BNC connectors
Built-in speaker with volume control
HEAD PHONES 3.5 mm stereo jack audio connector

Part No.	Description
EXB-AUD-08B	AUD-8B Desktop Audio Monitor System<br>(works only with <link 214>EXT-02 B</link> system)

AUDIS-01D/16-2	Dual Channel Desktop Audio Monitor <br>(same features as 16-channel version, but with only one channel)

Audio Mode	PITCH / NOISE / THRESHOLD, selected by rotary switch with OFF position
Threshold	RANGE and FINE control, range: 0.5 V, 1 V or 2 V max.
Input	BNC connector, impedance 100 kW, high-pass filtered in NOISE mode
Voltage Range	±10 V
Volume Control	volume of the speaker, one-turn potentiometer
Head Phones	3.5 mm stereo jack audio connector, 1 kW, 1 V max.
Size	front panel 12 HP (60.6 mm) x 3U (128,5 mm), 7” (175 mm) deep
Power Requirements	15 V…18 V AC, 1 A min (external AC Power Supply included)
Dimensions	(W x D x H) 225 mm x 210 mm x 85 mm

Features

Two operation modes
- PITCH mode: the input signal is converted into a tone
- NOISE mode: the input signal is highpass filtered to monitor the noise
THRESHOLD function sets the level for NOISE mode
THRESHOLD with 3 ranges (0.5V, 1V or 2V max.)
and fine tuning in % of max. value
Up to 16 input channels with BNC connectors
Built-in speaker with volume control
HEAD PHONES 3.5 mm stereo jack audio connector

Part No.

Description

EXB-AUD-08B

AUD-8B Desktop Audio Monitor System<br>(works only with <link 214>EXT-02 B</link> system)

AUDIS-01D/16-2

Dual Channel Desktop Audio Monitor <br>(same features as 16-channel version, but with only one channel)

Technical Data

Audio Mode	PITCH / NOISE / THRESHOLD, selected by rotary switch with OFF position
Threshold	RANGE and FINE control, range: 0.5 V, 1 V or 2 V max.
Input	BNC connector, impedance 100 kW, high-pass filtered in NOISE mode
Voltage Range	±10 V
Volume Control	volume of the speaker, one-turn potentiometer
Head Phones	3.5 mm stereo jack audio connector, 1 kW, 1 V max.
Size	front panel 12 HP (60.6 mm) x 3U (128,5 mm), 7” (175 mm) deep
Power Requirements	15 V…18 V AC, 1 A min (external AC Power Supply included)
Dimensions	(W x D x H) 225 mm x 210 mm x 85 mm
