MTC-20/2SD – Temperature Controller

Add to Wishlist Remove from Wishlist

Desktop temperature controller

  • Temperature control in sensitive electrophysiological recordings
  • No switching artefacts due to analog control
  • No electrical noise due to linear power supply
  • Easy perfusion heating

About MTC-20/2SD

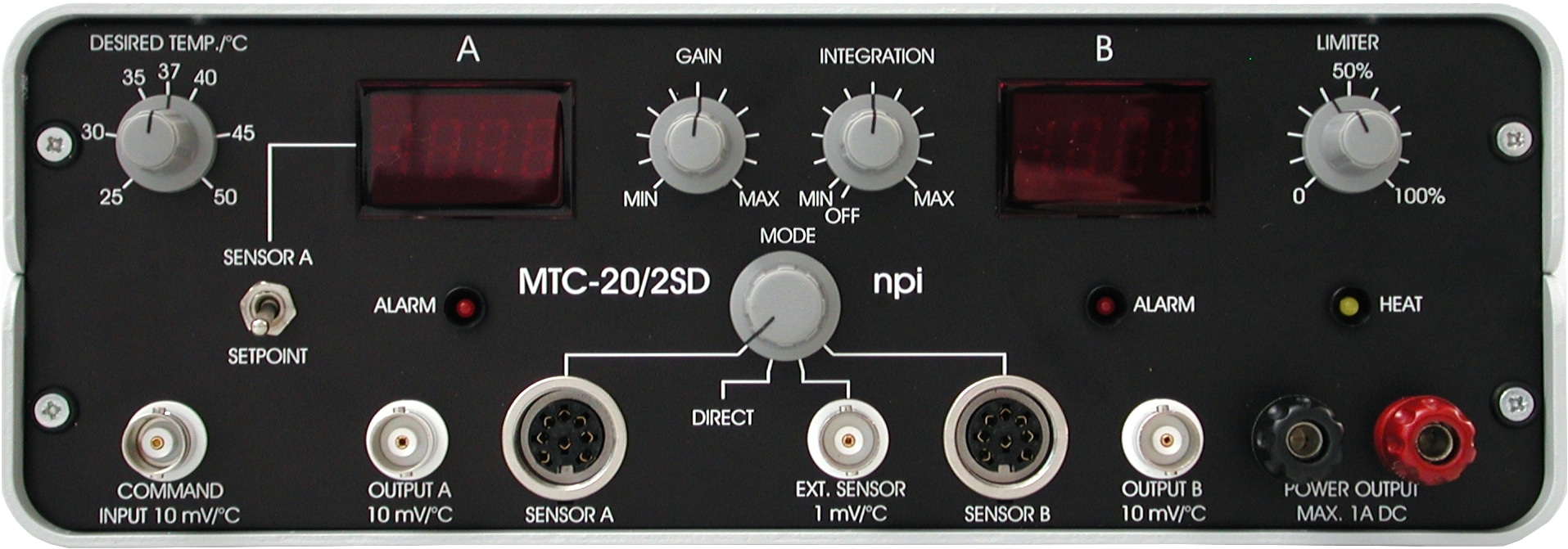

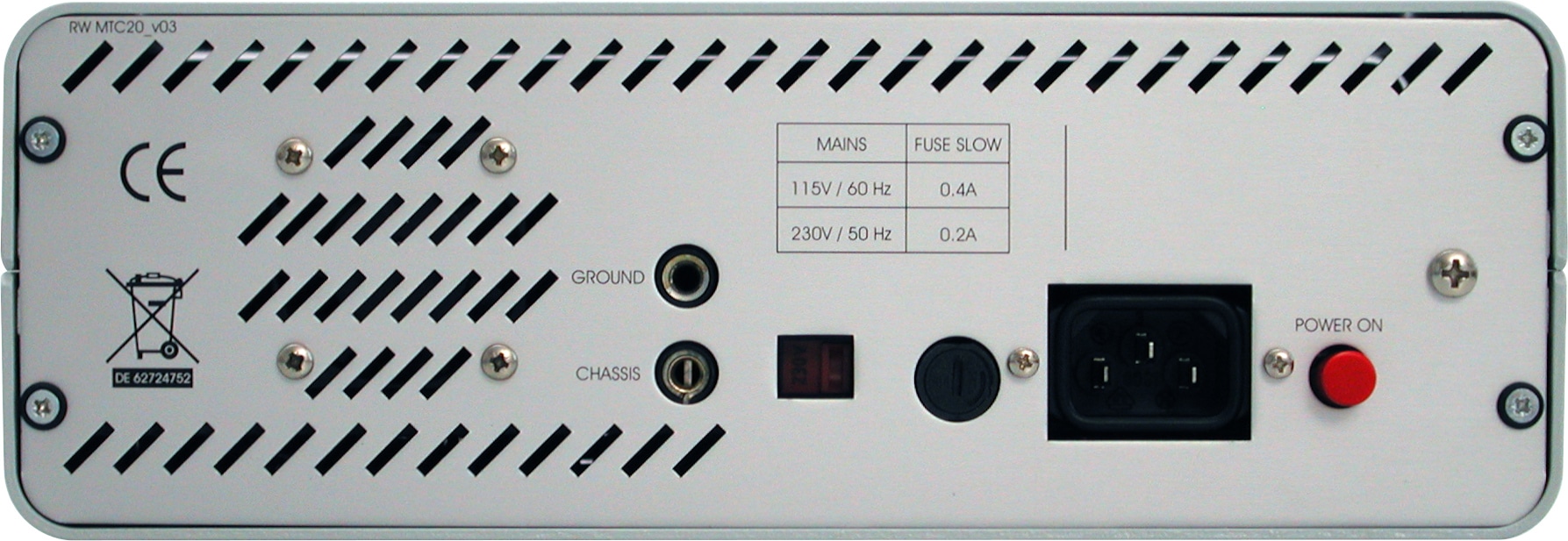

The MTC-20 temperature control system is designed for heating purposes in electrophysiological experiments with small or medium power requirement. The device has one temperature control channel and one additional thermometer/sensor input. The system guarantees low noise operation and has special protection features to prevent the connected heating elements from damage.

The analog design allows noise-free heating of sensitive preparations for low-noise electrophysiological recordings.

The system incorporates two electronic thermometers for small temperature sensors (standard is R2252, i.e. the sensor has a resistance of 2252 Ω at 25 °C or optional PT100, i.e. the sensor has a resistance of 100 Ω at 0 °C), two digital temperature displays (XX.X °C), a set-point control with digital readout (XX.X °C), a PI (proportional-integral) controller with adjustable parameters, an output power control unit and a high-power output stage (DC, continuous operation) for resistive (i.e. heat only) loads with electronic protection circuits. The power outputs are short circuit protected, the output power is limited electronically. The maximum output voltage is approximately 12 V, the current is limited to 1 A.

The system can be connected to the thermistors / heating elements in two ways:
– Using separate cables for the sensors and the heating element or
– Using the ALA DIN cable assembly that connects both, sensors and heating elements, e.g. ALA HPC-G

The temperature controller is delivered with a power cord and a user manual. Sensors must be purchased separately.

Technical Data

Sensor input: for semiconductor 2252 W at 25 °C (standard), accuracy typically 0.1 °C at 25 °C, with electronic protection
Sensor input (EXT. Mode): sensitivity: 1 mV/°C
ALARM and SHUTOFF: disconnects POWER OUTPUT if temperature is below +3 °C (not connected or broken sensor) or above +60 °C (short circuited sensor)
Digital displays: 3 1/2 digits, XX.X °C (temperature of SENSOR A or B) or XX.X V (voltage at POWER OUTPUT)
COMMAND INPUT: BNC connector, analog input, sensitivity. 10 mV/°C
Set value control: potentiometer, range: up to 50.0 °C, XX.X °C
Temperature OUTPUT (A, B): BNC connector, analog outputs, sensitivity. 10 mV/°C, output impedance: 250 W
POWER OUTPUT: 12 V / 1 A, short circuit protected, continuous DC
Limiter: potentiometer for the maximum output voltage with a linear range from 0 – 100 %
Control: PI (proportional-integral) controller, accuracy typically ±0.2 °C
GAIN: potentiometer, logarithmic scale, range: 10-10k
INTEGRATION: potentiometer, logarithmic scale, time range: 50 ms – 20 s
Measuring accuracy: 0.1 °C at 25 °C
Power requirements: 115V / 230V AC, 60 / 50 Hz, fuse 0.8A / 0.4A slow
Dimensions: desktop cabinet, 246 mm, 260 mm, 90 mm

Ordering

Part no. Description
MTC-20/2SD MTC-20/2SD Microscope Stage Temperature Controller
TS-100 Temperature sensor for TC/PTC/MTC systems
TS-200 Miniature temperature sensor for TC/PTC/MTC systems

Downloads

Manual MTC-20_manual
Brochure Temperature Controllers
