Heaters, Sensors, Accessories

Add to Wishlist Remove from Wishlist

Perfusion Heaters

HPC-2

  • In-line solution heater for up to 5 mL/min.
  • Built-in temperature sensor
  • Connects to npi’s temperature controllers
  • Magnetic mount available

HPC-G

Please see also ALA’s website for further information.

Perfusion Coolers/Heaters

HCPC

  • In-line solution heater/cooler for up to 5 mL/min.
  • Built-in temperature sensor
  • Connects to npi’s temperature controllers
  • Magnetic mount available

HCPC-G

  • In-line solution heater/cooler for up to 10 mL/min.
  • Built-in temperature sensor
  • Connects to npi’s temperature controllers
  • Magnetic mount available



Please see also ALA’s website for further information.

HCS - Heated Microscope Stage

  • Heating for electrophysiology and imaging setups
  • Connects to npi’s temperature controllers
  • Suitable for 35 mm petri dishes
  • Suitable for ALA’s 35 mm MS-Chambers
  • Different versions for different microscope stages available

Please see also ALA’s website for further information.

HCMIS - Microscope Stage Incubator

  • Heating and cooling for electrophysiology and imaging setups
  • Connects to npi’s temperature controllers
  • Suitable for 35 mm petri dishes
  • Suitable for ALA’s 35 mm MS-Chambers
  • Magnetic mounting plate available.

Please see also ALA’s website for further information.

Objective Heater

  • Removes cold spots in water immersion
  • Built-in temperature sensor
  • Resistive Heater
  • Velcro strap

Connects directly to HOT-1. For connection to npi’s temperature controllers an adapter cable is needed (H-OBJ-DIN).

Please see also ALA’s website for further information.

Sensors

The sensors TS-100 and TS-200 come with a connection cable for npi temperature controllers (TC-10/20 or PTC-10/20). Spare sensors are also available (TS-100-S and TS-200-S).



TS-CAB: connection cable for temperature sensors. One end with round DIN connector, gold plated connectors on the other end.

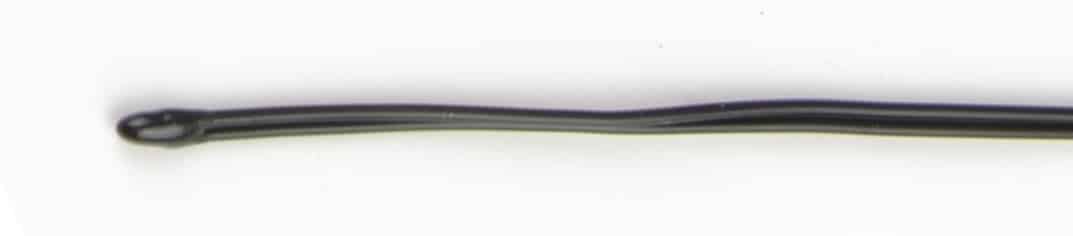

TS-100-S: Temperature sensor with special coating that makes it mechanically stable and waterproof. Size at the tip: 2.5 mm x 6 mm.



TS-200-S: Temperature sensor optimized for size. Its coating might get leaky after mechanical stress (e.g. bending of the wires). Size at the tip: 0.8 mm x 6 mm

Heat Sink for Peltier Devices

  • Closed liquid cooling system
  • Low-noise operattion
  • Adjustable fan and pump speed

Please see also ALA’s website for further information.

Animal Heating Pads

  • 2 sizes available (mice and rats)
  • Connects directly to HOT-1 temperature controllers
  • Adapter cable necessary to connect to npi’s temperature controllers

Please see also ALA’s website for further information.

Ordering

Part No. Description
Sensors
TS-100 Temperature sensor (2.5 mm x 6 mm) with connection cable.
TS-200 Temperature sensor (0.8 mm x 6 mm) with connection cable.
TS-CAB Connection cable for temperature sensors.
TS-100-S Temperature sensor (2.5 mm x 6 mm), spare part (sensor only).
TS-200-S Temperature sensor (0.8 mm x 6 mm), spare part (sensor only).
Perfusion Heater
HPC-2 Heated perfusion cube w/built-in sensor; small volume
HPC-G High Flow Rate Heated Perfusion Cube
MMT-HPC Magnetic mounting tool for all HPC
Perfusion Heater/Cooler
HCPC Heating/Cooling Perfusion Cube with built-in sensor (small volume)
HCPC-G Heating/Cooling Perfusion Cube with built-in sensor (small volume) – High flow rate
MHOLD-HCPC Magnetic holder for HCPC
MUTOOL-HCPC-GRB Magnetic holder for HCPC-G
Heated Microscope Stage
HCS-N Heated chamber stage for temperature control of MS chambers or 35mm OD
petri dishes – for Nikon Scopes
HCS-O Heated chamber stage for temperature control of MS chambers or 35mm OD
petri dishes for Olympus scopes
HCS-ZM Heated chamber stage for temperature control of MS chambers or 35mm OD
petri dishes for Zeiss scope with M stage
HCS-ZK Heated chamber stage for temperature control of MS chambers or 35mm OD
petri dishes for Zeiss scopes with K stage
HCMIS Microincubator
ALA HCMIS Peltier Heating and Cooling MicroIncubator Stage for MS Chambers or 35mm Petri Dish
ALA HCMIS-MAGP Magnetic mounting plate for HCMIS
Objective Heater
H-OBJ Microscope Objective Heater with 4 pin cable and built-in sensor
H-OBJ-DIN Microscope Objective Heater cable for ALA and npi temperature controllers
Heat Sink
ALA Coolit Heat Sink for HCPC or HCMIS
Animal Heating Pads
HEATINGPAD-1 Heating Pad for Mice (125 mm x 65 mm) with Thermistor
HEATINGPAD-2 Heating Pad for Rats (229 mm x 152 mm) with Thermistor
H-OBJ-DIN Cable to connect thermistor and heating pad via 8-pin DIN connector to npi’s temperature controllers
