ISO-STIM-01D – Isolated Stimulator

Add to Wishlist Remove from Wishlist

Isolated Stimulator

This device has been replaced by our new ISO-STIM-II

  • No need to charge batteries – the ISO-D works with power supply
  • One device will do all stimulation tasks:
    • Bipolar stimulation with up to +/- 100 V (+/- 10 mA)
    • TTL triggered stimulation pulses
    • Any analog input signal can be transferred as an isolated output signal
  • Built-in pulse length timer for shorter pulses than the DAQ system can generate
  • Apply precise square current pulses by compensating the cable’s and electrodes’ capacitance
Category:

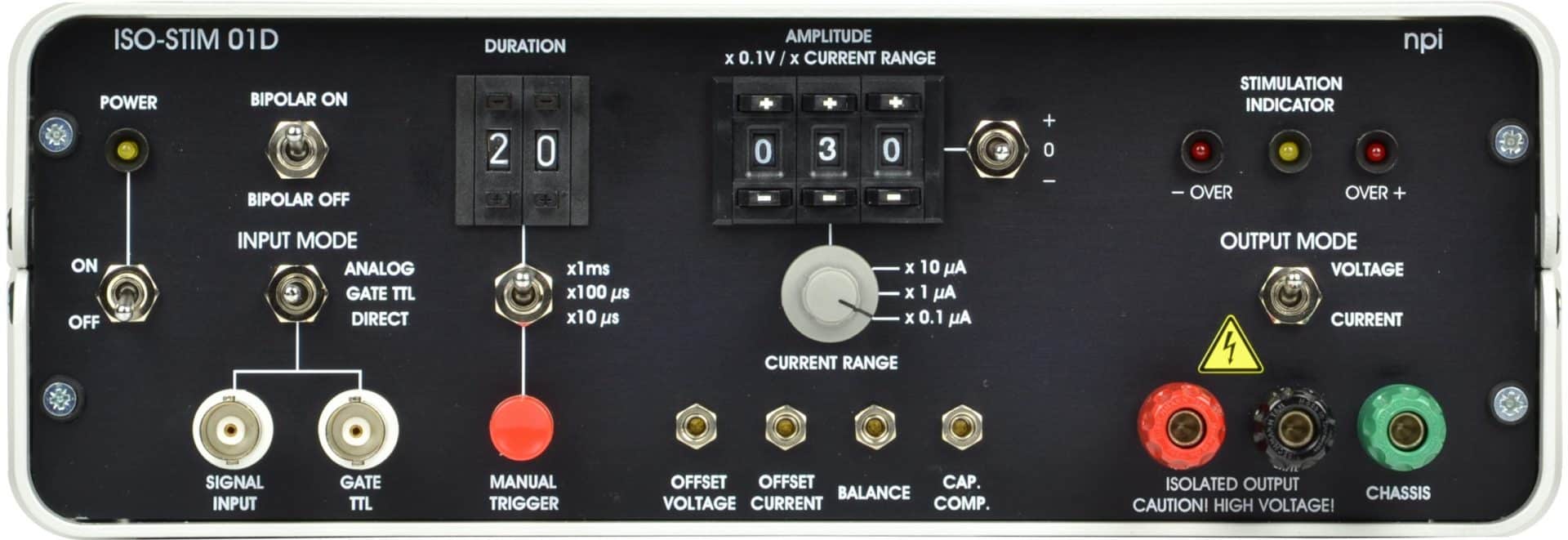

About ISO-01D

The ISO-STIM 01D stimulus isolation unit is designed for application of extracellular stimuli, e.g. in brain slices. In contrast to other stimulus isolators the ISO-STIM 01D needs NO batteries, because it is powered by an external power supply.
The output signal is optically isolated from ground and can either be a constant voltage up to ±100 V or a constant current up to ±10 mA (other ranges are available on request). The ISO-STIM 01D has a build-in timing unit with adjustable pulse length, amplitude and polarity.
The ISO-STIM 01D has three modes of operation:
In the DIRECT input mode the output signal follows exactly the input signal.
In the GATE TTL input mode the output signal is generated by the build-in timing unit and triggered either by a TTL trigger at the GATE TTL connector or manually with the MANUAL TRIGGER switch.
In the ANALOG input mode the output signal follows – like in direct mode – the input signal but is triggered by the input signal itself and the duration of the output stimulus is set at the ISO-STIM 01D.
The ISO-STIM 01D has two LEDs to indicate if the amplifier is 10% below its positive or negative limit and one LED to indicate the application of a voltage or current stimulus.
The ISO-STIM 01D is able to generate a bipolar stimulus without delay between positive and negative part of the stimulus. The second part of the bipolar stimulus has the same amplitude and length as the first part but reverse polarity.

The ISO-STIM is also available as module for the EPMS-07 system.

Features

  • NO batteries needed
  • ISOLATED OUTPUT
  • Three input modes: ANALOG, GATE TTL, DIRECT
  • Stimulus AMPLITUDE set by three digit control and a RANGE switch (CURRENT) or by an external source, e.g. a data acquisition system
  • Stimulus duration set by two digit control from an internal, digital timer (10 ìs to 99 ms) or by an external source
  • Stimulus polarity set by switch (+, 0, -) or by data acquisition system
  • Current (±10 mA) or voltage (±100 V) source output
  • “Overrange” and “active” LED indicators
  • Capacitance compensation for the electrode capacitance
  • True current clamp mode (currently not available)
  • By default with bipolar stimulus generation

Also available as module for the EPMS-07 system!

Technical Data

INPUT OPERATING MODES DIRECT, ANALOG TRIGGER, TTL TRIGGER, selectable with toggle switch
FUNCTION MODES voltage source, current source, selectable with toggle switch
TIME RANGE FACTORS x10 µs, x100 µs, x1ms, selectable with toggle switch, time range up to 99 ms
AMPLITUDE POTENTIOMETER: 3 digits, ±10 V or ±10 mA max.,
polarity selectable with toggle switch
CURRENT RANGE FACTORS x0.1 µA, x1 µA, x10 µA,

selectable with toggle switch

TIME POTENTIOMETER 2 digits, 0 – 99 as multiplication factor selectable
OUTPUT VOLTAGE ±100 V max., isolated
OUTPUT CURRENT ±10 mA max., isolated
INPUT VOLTAGE RANGE ±10 V, amplified internally with gain of 10 (voltage source) or gain of 1 (current source)
SOURCE RANGES ±10 mA (current source),
±100 V (voltage source), selectable with toggle switch

Ordering

Part no. Description
ISO-STIM 01D-100 Isolated Stimulator (± 100 V, ± 10 mA) with bipolar stimulus output

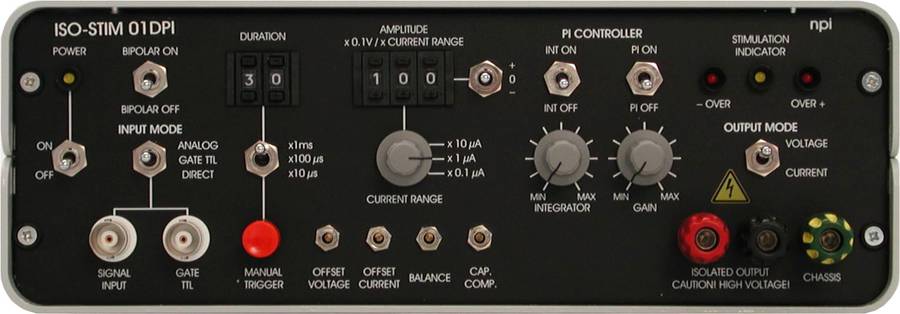

ISO-PI Currently not available
ISO-CAB-D Cable set for connecting the stimulation electrode

Downloads

Manuals ISO_Stim01D_manual
Brochure ISO Series
