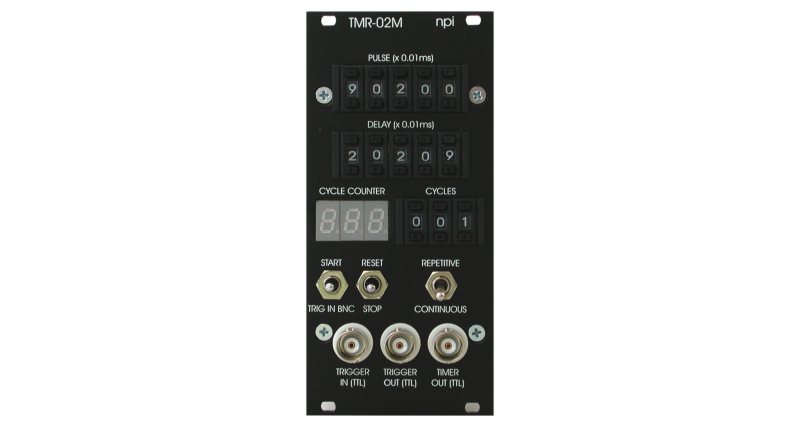

TMR-02M – Timer Module

Add to Wishlist Remove from Wishlist

Simple Timer Module

  • No need for a PC
  • Program protocols for stimulation or electroporation
  • Easy selection for number of cycles
Categories: ,

Features

  • Program simple pulse patterns
    • [PULSE, DELAY] x # of CYCLES
  • Manual start or TTL trigger input
  • Trigger output

Ordering

Part No. Description
TMR-02M TMR-02M Digital Timing Module for EPMS

Technical Data

PULSE SWITCH 5 digits thumb wheel, 0.01 to 999.99 ms, digital
DELAY SWITCH 5 digits thumb wheel, 0.01 to 999.99 ms, digital
TIMER OUT BNC connector, TTL signal
TRIGGER OUT BNC connector, TTL signal, 1 µs
TRIGGER IN BNC connector, TTL signal, 10 µs minimum
DIMENSIONS 12 HP (606 mm) x 3 U (128.5 mm), 7″ (175 mm) deep



Downloads

Manual TMR-02 manual
Brochures ISO-STIM and Timer

Features

Features

  • Program simple pulse patterns
    • [PULSE, DELAY] x # of CYCLES
  • Manual start or TTL trigger input
  • Trigger output

Ordering

Ordering

Part No. Description
TMR-02M TMR-02M Digital Timing Module for EPMS

Technical Data

Technical Data

PULSE SWITCH 5 digits thumb wheel, 0.01 to 999.99 ms, digital
DELAY SWITCH 5 digits thumb wheel, 0.01 to 999.99 ms, digital
TIMER OUT BNC connector, TTL signal
TRIGGER OUT BNC connector, TTL signal, 1 µs
TRIGGER IN BNC connector, TTL signal, 10 µs minimum
DIMENSIONS 12 HP (606 mm) x 3 U (128.5 mm), 7″ (175 mm) deep



Downloads

Downloads

Manual TMR-02 manual
Brochures ISO-STIM and Timer
