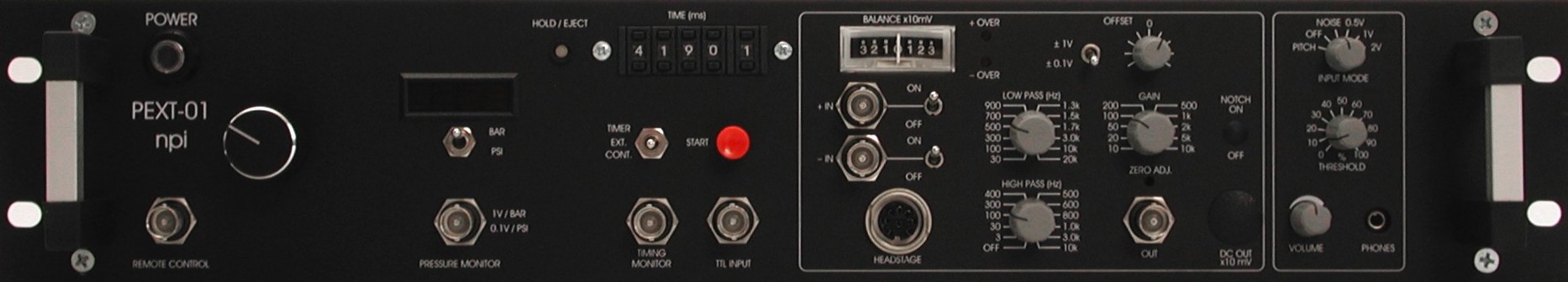

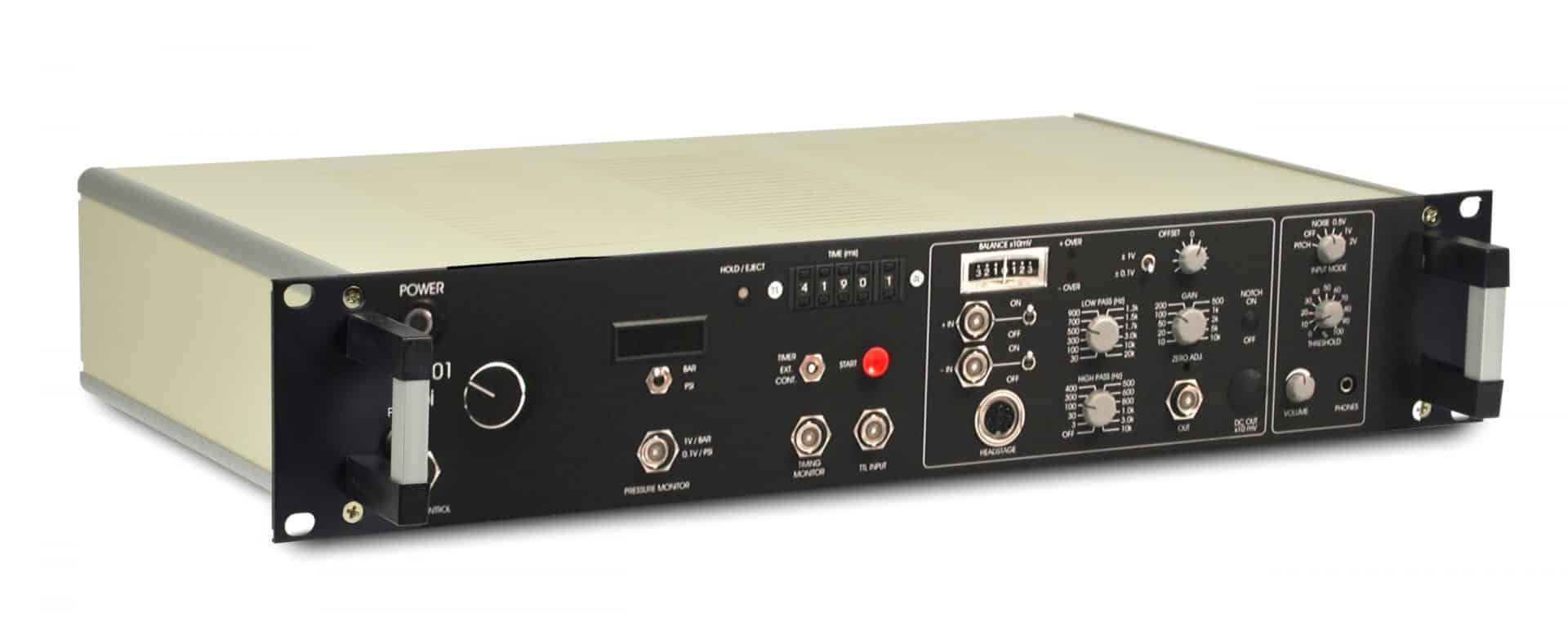

PEXT – Extracellular Amplifier & Substance Application

Add to Wishlist Remove from Wishlist

Pneumatic Ejector and Extracellular Amplifier

  • Apply drugs to the place of recording
  • Simultaneous recording and drug application
  • Pipette holders with pressure input available
Categories: , ,

About PEXT

The PEXT-01 is designed for pressure ejection of drugs in physiological and pharmacological studies while recording extracellular signals.

It combines the popular PDES pressure ejectors with the extracellular amplifier EXT-02F/1 in one 19″ instrument that can easily be mounted in a rack.

Pressure ejection of substances can be performed with the same pipette as extracellular recording at the same position, or at a distant site using a separate pipette.

Specifications and options are the same for the ejection and recording part of the PEXT-01 as for the single channel instruments of the PDES and EXT-02F.

Features

  • 2 or 4 bar pneumatic output
  • Digital manometer with PRESSURE MONITOR
  • Digital timer (100 ìs to 9999.9 ms) for pressure ejection
  • Manual, internal timed or external (TTL) pneumatic operation
  • Differential amplifier INPUT with high impedance
  • INPUT with BNC connectors or small headstage
  • OFFSET control potentiometer with two ranges (±0.1V or ±1V)
  • LOWPASS filter: 30, 100, 300, 500, 700, 900, 1.3k, 1.5k, 1.7k, 3k, 10k, 20k Hz
  • HIGHPASS filter: OFF, 3, 30, 100, 300, 400, 500, 600, 800, 1k, 3k, 10k Hz
  • OUTPUT: DC or AC FILTERED x10 to x10k
  • Optional AUDIO monitor, noise mode with threshold or pitch mode
  • OVER LEDs (activating at 10% below maximum output)
  • Analog BALANCE monitor for optimal OFFSET control
  • Two separate holders for ejection and recording or one combined ejection/recording pipette holder

Ordering

Part No. Description
PEXT-01D PEXT System with Digital Timers, one Channel PDES w. Analog Manometer, EXT Amplifier w/o Headstage
PEXT-01D-LA PEXT System with Digital Timers, one Channel PDES w. Digital Manometer, EXT Amplifier w/o Headstage
PEXT-01DE PEXT System with Digital Timers, one Channel PDES w. Analog Manometer, requires external Valve, EXT Amplifier w/o Headstage
PEXT-01DE-LA PEXT System with Digital Timers, one Channel PDES w. Digital Manometer, requires external Valve, EXT Amplifier w/o Headstage

Technical Data PDES

MODE SELECTION three position toggle switch, (TIMER, CONT., EXT.).
SOURCE GAS air, nitrogen, helium etc. no aggressive, combustible or explosive gases, filtered by a 5 µm filter element.
PRESSURE RANGE input pressure: max. 5 bar (1 bar = 105 Pa = 14.5 psi)
pressure control range: 0-4 bar, 0-58 psi; with microJECT 0-2 bar, 0-30 psi
display range: 0-4 bar, 0-58 psi
residual air pressure: 10 mbar (0.145 psi) – 100 mbar (1.45 psi).
INPUT AND OUTPUT COUPLINGS quick connect type.
DIGITAL TIMER 100 µs – 9.9 s set by five digit tumble-wheel switch
(0000.1 – 9999.9 ms).
ANALOG TIMER 0.1 – 1 s and 1 – 10 s with linear control, range set by toggle switch time base selector (0.1 s, 1 s).
MINIMUM PRESSURE PULSE LENGTH 10 ms (digital timer), <1 ms with microJECT, 100 ms (analog timer).
PULSE OUTPUT Pressure Monitor: standard BNC connector, sensitivity: 1 V / bar or 0.1 V / psi, output impedance 249 Ω
Timing Monitor: standard BNC connector, TTL (LO = 0-1 V, HI = 5 V), output impedance 249 Ω.
PULSE INPUT standard BNC connector, TTL (LO = 0-2.5 V, HI = 2.5-12 V), input impedance 10 kΩ.
STATUS / EJECT TIME INDICATOR ed/green LED
red light: channel has been turned on, valve is closed
green light: valve is open.
POWER REQUIREMENTS 115/230 V AC, 20-40 W,
DIMENSIONS 19″ rackmount cabinet, 19″ (483 mm), 10″ (250 mm), 3.5″ (88 mm)
REMOTE CONTROL (OPTION) Toggle switch and status LED for each channel,
size: 25 x 40 x 100 mm.

Technical Data EXT

HEADSTAGES (optional) Operating voltage ±12 V; Size (approx.): 65x25x25mm
holding bar diameter 9 mm, length 150 mm
Electrode connector: BNC with driven shield
Ground connector: 2.4 mm connector or headstage enclosure
Reference connector: gold-plated SMB, grounded shield
Input resistance: >1012 Ω
Differential input: cmr >90 dB at 1 kHz (tested with 0 Ω input resistance)
AC/DC OUTPUT filtered and amplified
impedance 50 Ω
DIFFERENTIAL INPUT BNC / SMB connector with headstage or BNC connectors
CMR >90 dB
GND position for each INPUT
INPUT RESISTANCE (without headstage):
10E+6 Ω , range ±1 V (lower input resistance on request)
LOW PASS FILTER 30, 100, 500, 700, 900, 1.3k, 1.5k, 1.7k, 3k, 10k, 20k Hz
HIGH PASS FILTER OFF, 3, 30, 100, 300, 400, 500, 600, 800, 1k, 3k, 10k Hz
AUDIO MONITOR PITCH or NOISE, DC or AC
NOISE mode with THRESHOLD
channel selected by switch
connector external speaker / line
GAIN 10, 20, 50, 100, 200, 500, 1k, 2k, 5k, 10k
OFFSET COMPENSATION Potentiometer with 2 ranges: ±0.1 V or ±1 V
MONITORS Impedance: 250 Ohms
GAIN: BNC connector, 1 V per step, +1 V….+7 V
FILTER: BNC connector, 1 V per step, -8 V….+7 V
COMMAND: BNC connector, sensitivity: x10
ANALOG BALANCE MONITOR ca. ±30 mV
EXTERNAL POWER SUPPLY AC output; 12-18V, 1 A
DIMENSIONS 245 x 200 x 90 mm

Downloads

Manual PEXT-01 manual
Brochure PEXT-01
