Overview
7000smz-2: for an optimal slice surface, perfect for techniques such as visual patch-clamp recording or high resolution imaging.
- Minimal Z-axis deflection (less than 1 µm) at all speeds and amplitudes
- Tissue sample is automatically retracted before blade returns to start point
- The full range of adjustable parameters for the expert user with 8 customizable user profiles
- Manual, semi or fully automatic operation
- Leaf spring vibratory mechanism for optimal longevity and accuracy

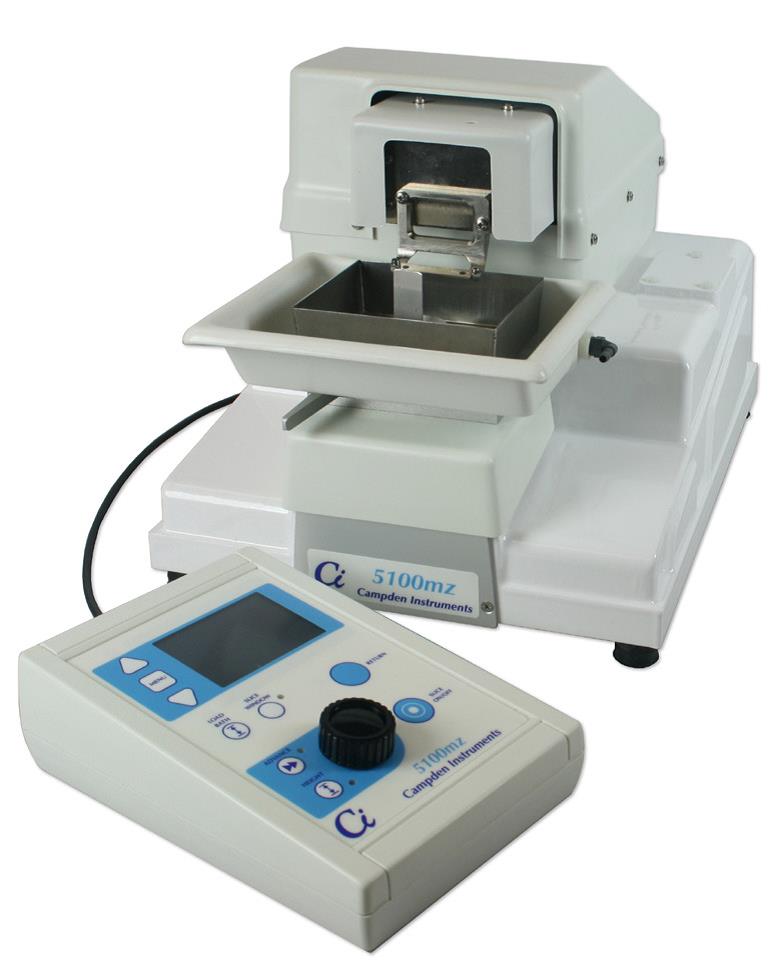

5100mz & 5100mz-PLUS
New budget microtome is perfect for techniques such as histology, organotypic slice culture and low resolution imaging.
- Shares many features with the flagship 7000smz series
- Mechanism Z axis error of less than 10μm
- Manual or Semi automatic operation
- Control handset allows full remote control
The 5100mz-Plus is designed for techniques requiring viable slices for longer durations such as electrophysiological field recordings or ISME’s.
- Optimal Z-axis deflection 2 μm
See also these Application Notes.
Comparison 7000smz-2 vs. 5100mz
|
7000smz-2 |
5100mz-Plus |
5100mz |
| Optimal Z-Axis Deflection |
Sub-μm ( ±0.1 μm) |
2.0 μm ± 0.1 |
≈5-8 μm |
| Opti-cal Vertical (Z-axis) Calibration Device* |
Included as standard |
Included as standard |
Included as standard |
| Blade Oscillation Frequency Range |
50-120 Hz |
50-80 Hz |
50-80 Hz |
| Blade Oscillation Amplitude |
Minimum: 0.5 mm (nominal)
Maximum: 2.5 mm (nominal) |
Minimum: 0.5 mm (nominal)
Maximum: 1.5 mm (nominal) |
Minimum: 0.5 mm (nominal)
Maximum: 1.5 mm (nominal) |
| Amplitude Step Size |
0.25 mm (nominal) |
0.5 mm (nominal) |
0.5 mm (nominal) |
| Advance Speed Resolution During Slicing |
0.01 mm/s |
0.1 mm/s |
0.1 mm/s |
| Specimen Retraction as Blade Retracts |
Yes |
Yes |
Yes |
| Max Specimen Size |
33x50x19 mm |
33x50x19 mm |
33x50x19 mm |
| Memory to Store Section Thickness |
Yes |
Yes |
Yes |
| Multiple User Settings |
8 different |
8 different |
8 different |
| Operating Modes |
Manual, semi-automated
Slice Window or fully
automated Profile Repeat |
Manual or semi-automated
Slice Window |
Manual or semi-automated
Slice Window |
| Cooling Options |
Ice bath or optional Model 7610A Tissue Bath Cooler |
| Dimensions (not including accessories or controls) |
16.5” x 15.7” x 10.6”
420 x 400 x 270 mm |
13.7” x 17.7 x 13.7”
350 x 450 x 350 mm |
13.7” x 17.7 x 13.7”
350 x 450 x 350 mm |
| Accessories |
Magnifier, Cold Light, and
Microscope, Tissue Bath
Cooler, Stainless Steel or
Ceramic Blades |
Integrated Cold
Light and Magnifier, Tissue
Bath Cooler, Stainless Steel
or Ceramic Blades |
Integrated Cold
Light and Magnifier,
-Plus Upgrade Kit, Tissue
Bath Cooler, Stainless Steel
or Ceramic Blades |
* Campden’s ‘Opti-cal’ is calibrated with metrology equipment traceable to National Standards
Ordering
For pricing and ordering please contact us.
