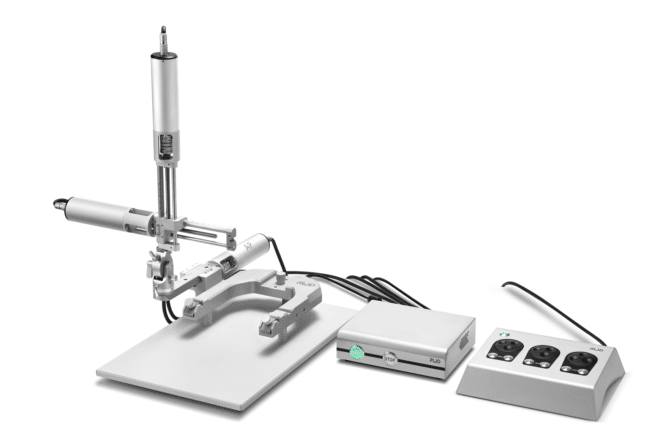

Automated Stereotaxic Instruments
1. The operating arm moves up and down, left and right, and back and forth within a range of 80mm, with a high-precision screw, running accuracy of 1μm;
2. One-key calibration function, when using for a long time, the computer display position parameters and locator reading deviation, the user can calibrate by one-key;
3. Positioner movement control function, 4 control modes: a. PC terminal software interface arrow control; b. PC end automatically moves to the target coordinate after inputting the target coordinate position; c. The micro-operation platform can precisely control the positioner movement, micro-operation Every 18 ° rotation of the knob performs a displacement of 1 μm; d, keyboard keys control the movement of the locator.
4. The locator movement speed adjustment function, a. The movement speed can be adjusted by inputting the movement speed at the corresponding positions of the three axes on the PC software interface. Among them, AP axis and ML axis can be selected from 5 movement speeds: 2.00 mm/s、00 mm/s、0.50 mm/s、0.20 mm/s 、0.10 mm/s, 8 kinds of moving speed of DV axis can be selected 2.00 mm/s 、1.00 mm/s、0.50 mm/s、0.20 mm/s 、0.10 mm/s、0.05 mm/s、0.01 mm/s、0.005 mm/s、0.001 mm/s; b. At the micro-operation end, the movement speed of the three axes can be uniformly adjusted by a certain step through the buttons;
5. Set the Bregma / Lambda site with one click. When users use the locator to reach the Bregma / Lambda site, they can mark. One-click to set the Bregma / Lambda site;
6. The coordinates of the locator are integrated with the brain map. The brain map version is the second version of the mouse and the sixth version of the rat. The user can select the brain map version. After selecting the version, the brain map version information is displayed;
7. Probe position and brain map display, when the user finds and sets the Bregma / Lambda point, the computer interface can display the brain map and the location of the probe, and can display the movement process in real time;
8. Automatic craniotomy program, 2 kinds of shape selection: square or round, length and width or diameter parameters (range: 0 ~ 20mm) and depth (range: 0 ~ 20mm), 5 kinds of moving speeds for AP axis and ML axis, 8 kinds of moving speed for DV axis;
9. Multi-point program setting, the user can manually input or select up to 10 coordinates on the brain map, can choose automatic operation or start the operation after the signal is triggered, the user can set whether the locator outputs TTL signal after reaching the target point, The user can set the residence time at each location (range: 00:00:00 23:59:59);
10. Tissue removal procedure, two shapes to choose: square or round, length and width or diameter parameters (range: 0 ~ 20mm) and depth (range: 0 ~ 20mm), support 2 needle specifications 27G, 30G, The density coefficient of 6 gradients is set from 1-6, and 5 kinds of moving speeds for AP axis and ML axis, 8 kinds of moving speed for DV axis;
11. Position coordinate storage function, the user can manually input or select multiple coordinates on the brain map and name, can store up to 10 points;
12. Z axis retraction function, when the user defines the Bregma / Lambda point, when the locator is moving in the X and Y directions, regardless of where the probe is located in the Z axis, the probe needs to be retracted first above the animal skull The position of 5mm on the surface ensures that the horizontal movement of the motor will not touch the skull of the animal;
13. The choice of anti-backlash function can eliminate the error caused by the gap between the motor gears when the motor moves in the reverse direction. The user can choose to turn it on or off;
14. Error log automatic saving function, convenient for product maintenance.
15. The software requires adaptation to win7, win10 Chinese and English operating systems.
16. Alarm function, real-time detection, stop all parts movement when encountering trouble, PC frame prompt;
17. Ability to receive or output TTL signals, such as receiving TTL signals to trigger the automatic brain stereotaxic instrument to automatically move according to the set procedure, or output TTL signals when reaching a specific position;

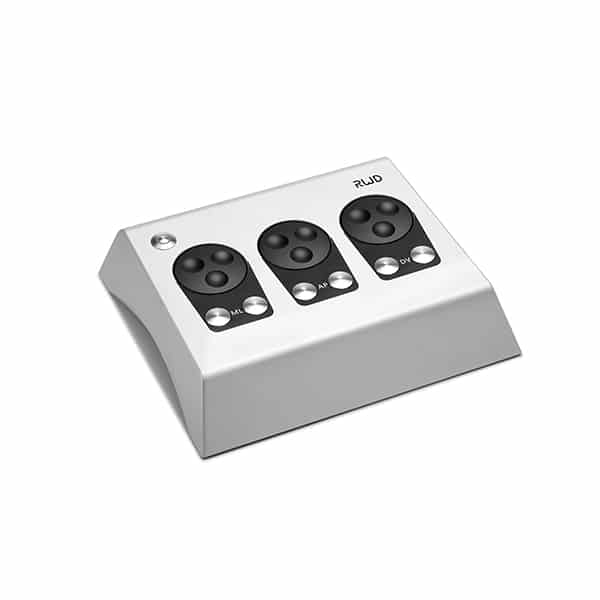

18. Micro-operation control, which can realize the continuous movement of the button of the handle to the full-automatic brain stereo locator.

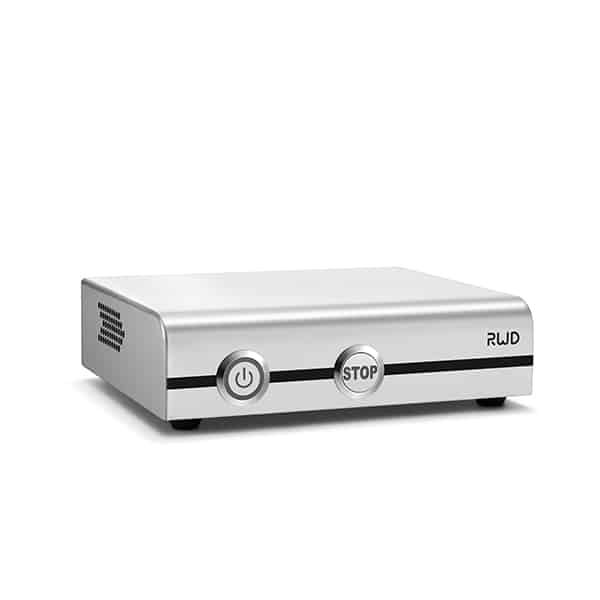

19. The control box has two kinds of power indicator lights, the normal state is green light, and the abnormal state is red light;
20. The control box has 12V power interface, USB square port to communicate with the computer, 3 motor interfaces, there are silk screen logos to distinguish, BNC interface handles TTL signal.
